User Manual for Music Hall mmf-1.3 Stereo Turntable Click to enlarge the picture
Contents of the user manual for the Music Hall mmf-1.3 Stereo Turntable
- Product category: Turntables Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Turntables
 |
User manual for the Music Hall mmf-1.3 Stereo Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|

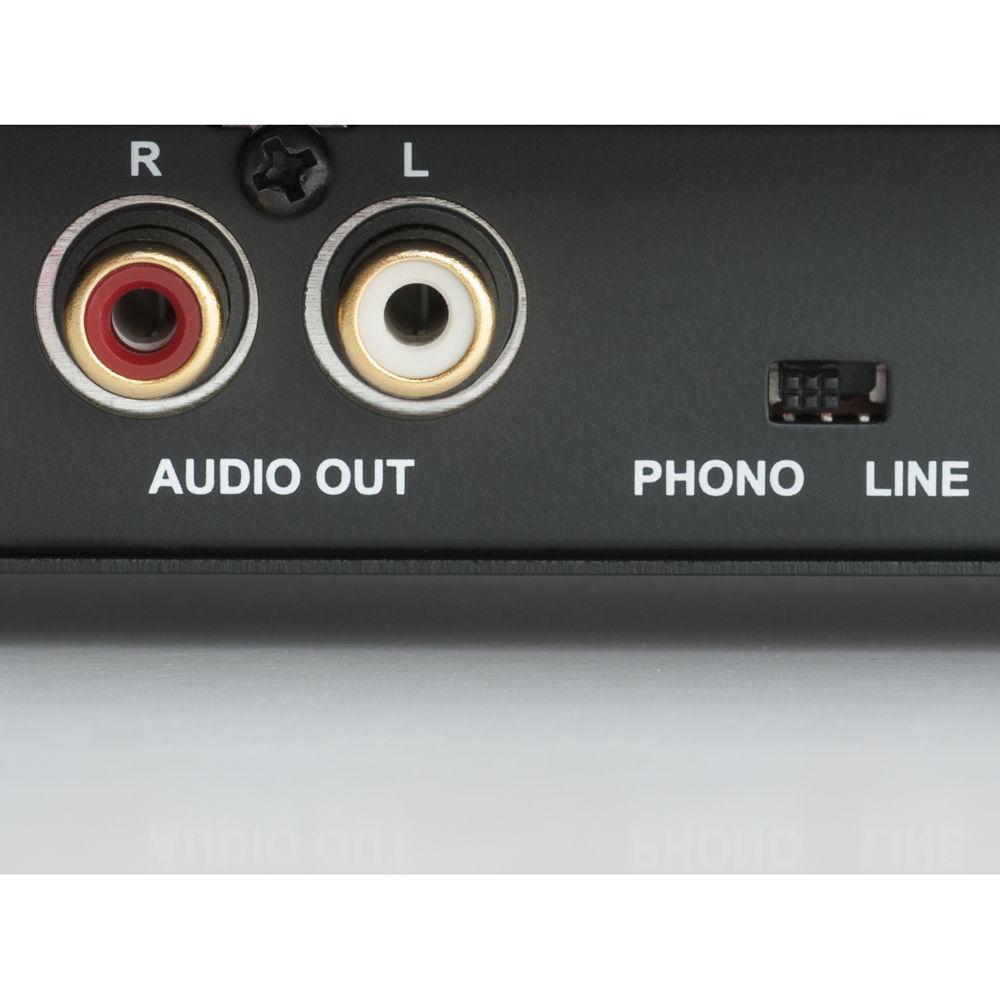

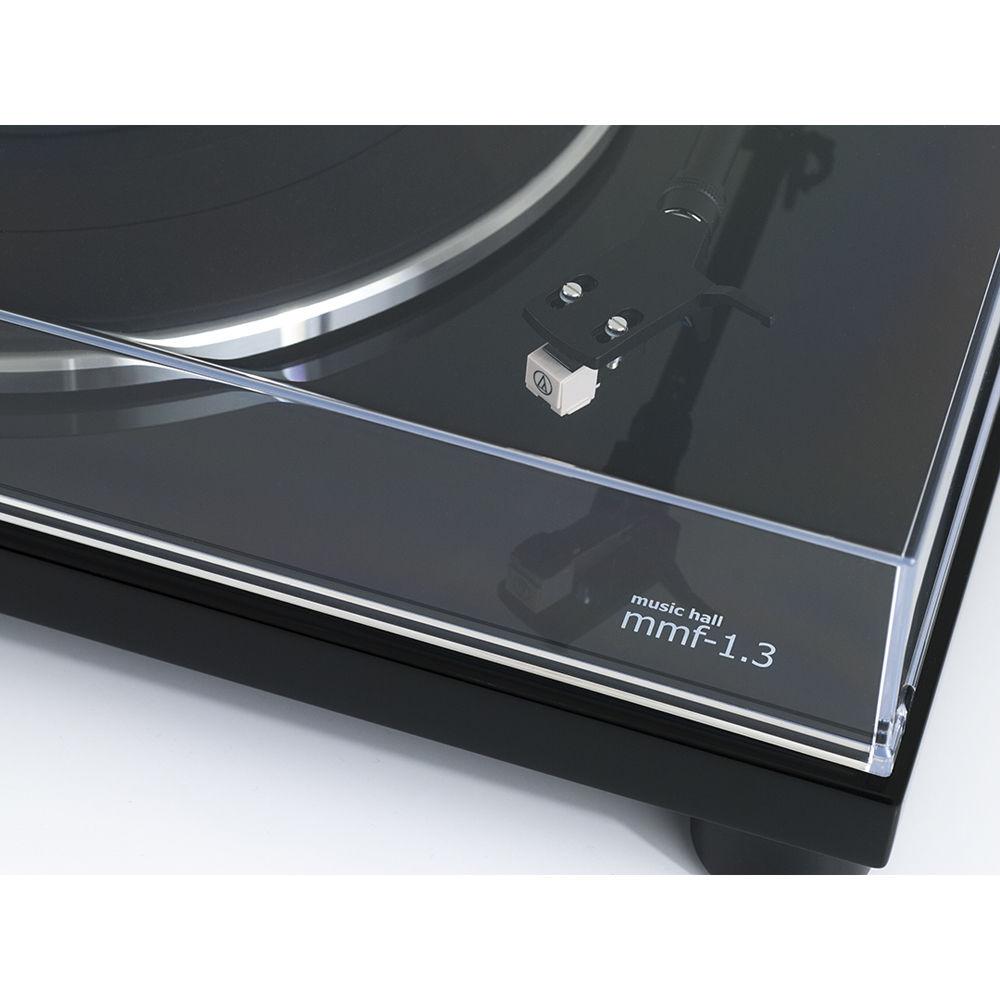

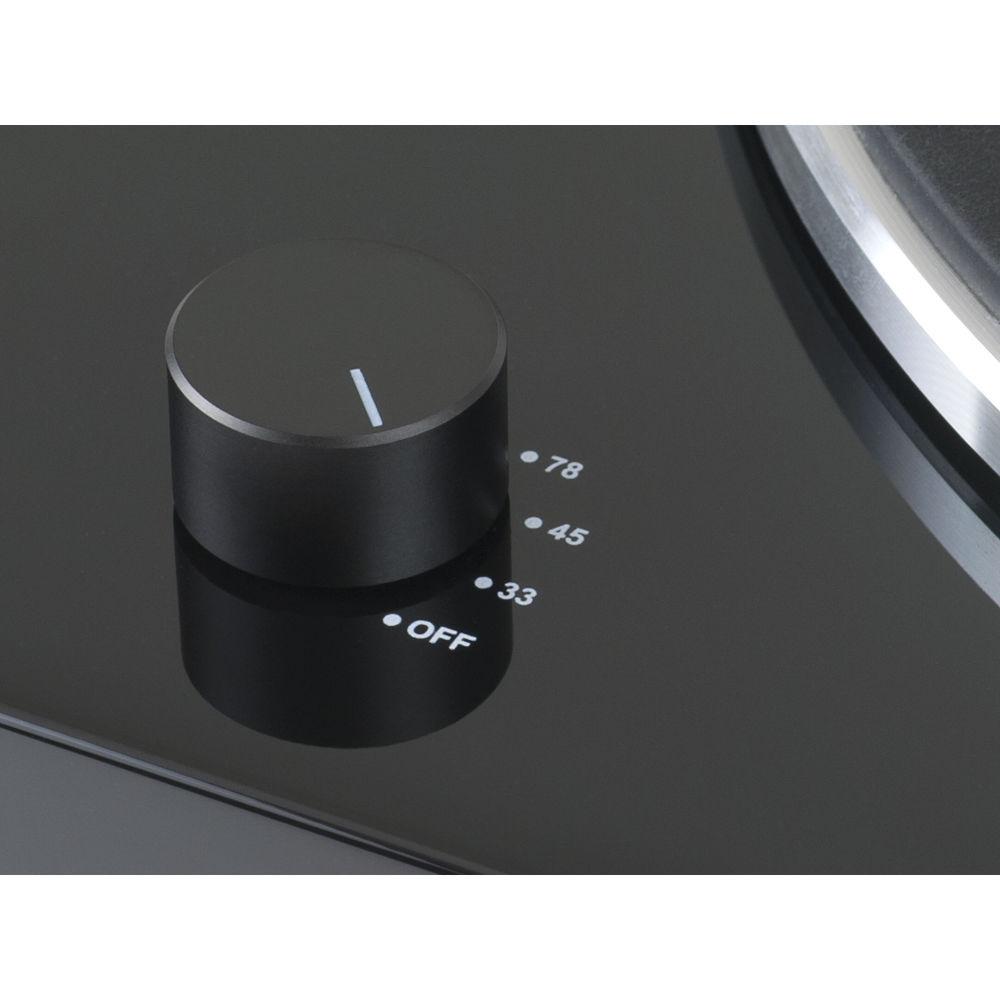

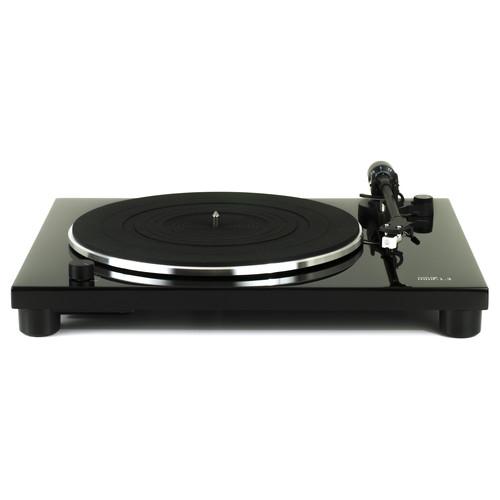

Product description Enjoy your favorite vinyl records with the Music Hall mmf-1.3 Stereo Turntable. It plays 33 1/3, 45, and 78 rpm vinyl records and features an aluminum platter, rubber mat, an aluminum tonearm, and a built-in phono pre-amp with a stereo RCA output to allow you to play through your home stereo system. Included is a dust cover and a 45 rpm adapter. - Electronic speed-controlled motor
- Aluminum tonearm with removable headshell

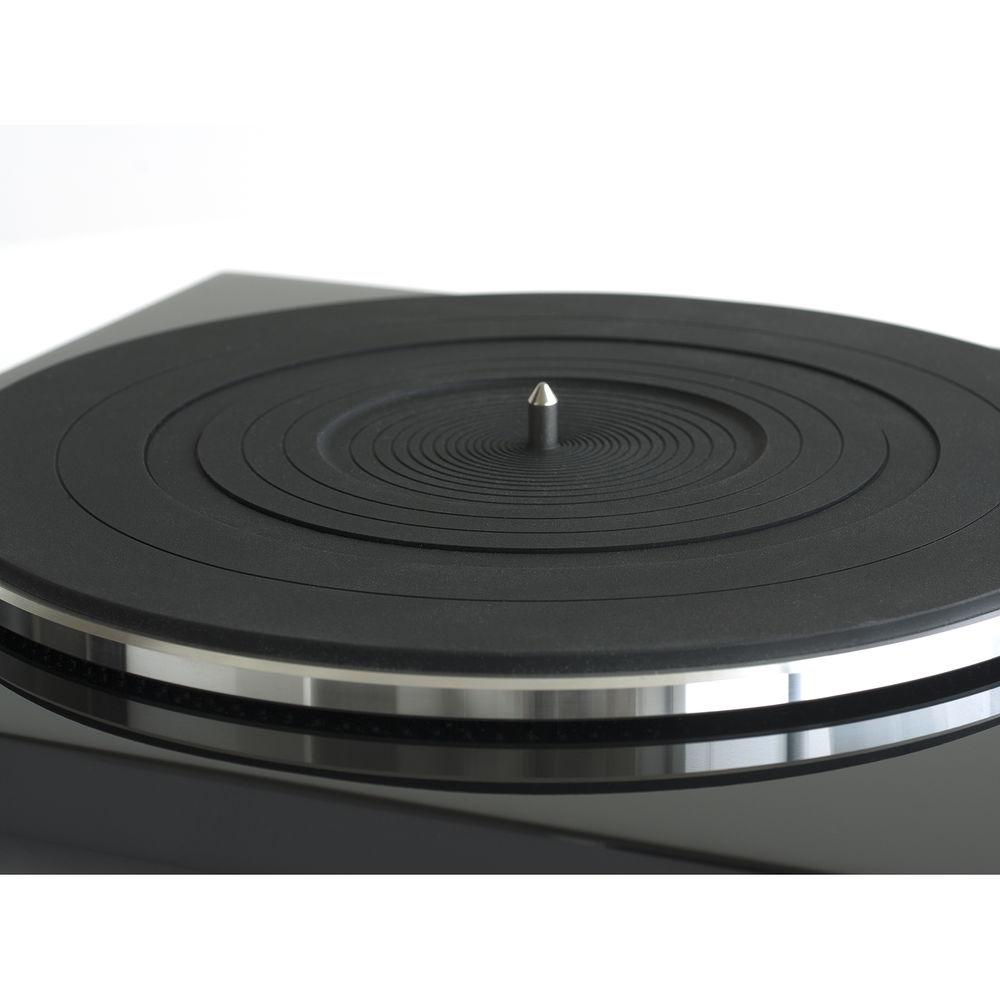

- Vibration-damping rubber platter mat

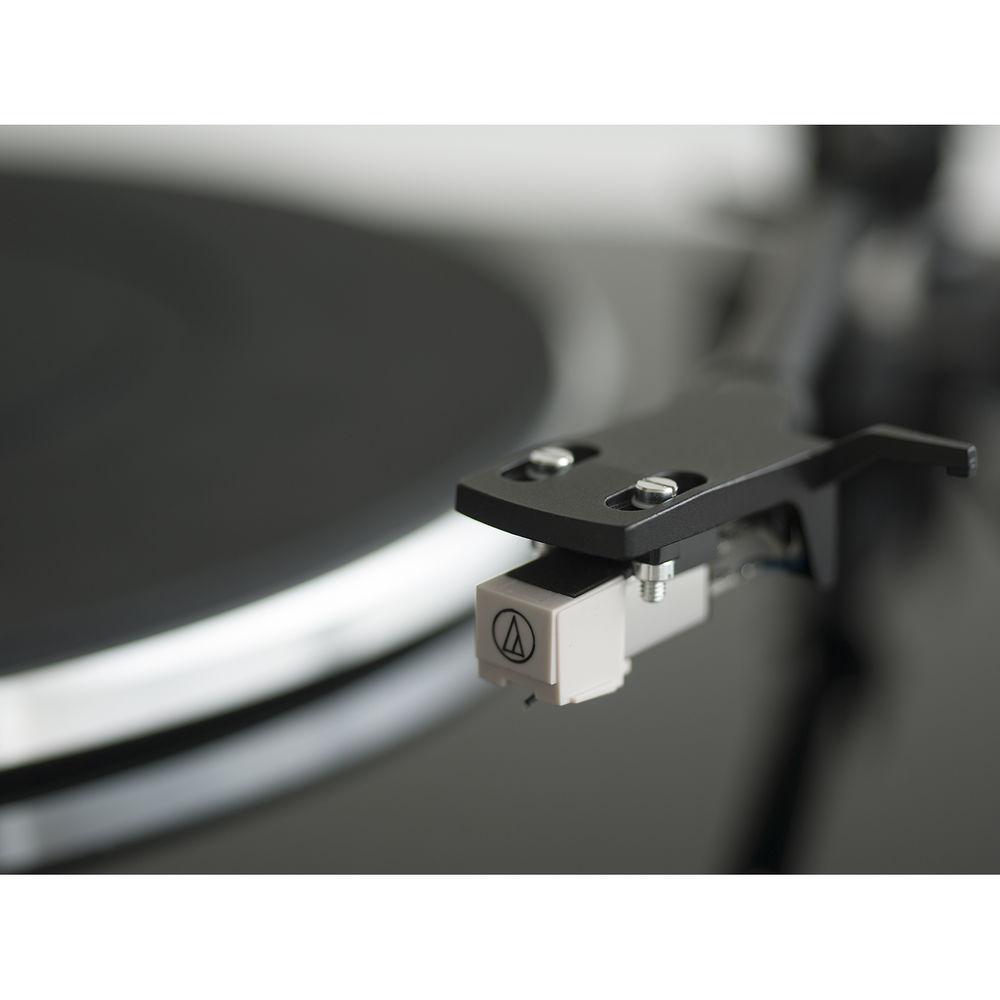

- Audio-Technica AT3600L cartridge
UPC: 602573245309 In the Box Music Hall mmf-1.3 Stereo Turntable Dust Cover 45 rpm Adapter Signal Wire Counterweight Platter Turntable Rubber Sheet 2 x Hinges Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall mmf-1.3 Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall MMF-1.3 Specs | | | Speeds | 33 1/3, 45, 78 rpm | | Type | 3-speed full manual | | Speed Tolerance at Normal Pitch | 3000 Hz ±1% (CD-4005) | | Motor | DC | | Drive Mechanism | Belt | | Tonearm Type | Dynamic balanced straight tonearm with soft damping control | | Effective Arm Length | 8.72" (221.5 mm) | | Overhang | 0.75" (19 mm) | | Offset Angle | 25.61° | | Tracking Error Angle | ≤3° | | Wow and Flutter | Typical: <0.1% WTD at 3 kHz RMS (CD-4005)
Limit: <0.15% WTD at 3 kHz RMS (CD-4005) | | Turntable Platter | 11.65" (296 mm) aluminum die-cast | | Connectors | 1 x stereo RCA pair | | | | Channel Separation | > 18 dB (AT6606A) | | Channel Balance | Within 2 dB @ 1 kHz (AT6606A) | | Cartridge | AT3600L | | Output Voltage | 2.5 mV ±3 dB @ 1 kHz, 3.54 cm/sec (AT6606A) | | Frequency Response ± 3dB | 0 @ 10 kHz (AT6606A) (value at 10 kHz based on value at 1 kHz) | | Tracking Force | 3.5 ± 0.5 g | | | | Power Supply | 12 VDC, 2 A | | Power Consumption | 4 W | | Dimensions (W x H x D) | 17.1 x 4.2 x 14.5" (435 x 106 x 367 mm) | | Weight | 11.0 lb (5 kg) | | | | Package Weight | 15.15 lb | | Box Dimensions (LxWxH) | 20.5 x 17.0 x 7.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
