Music Hall mmf-1.5 3-Speed Turntable

Search your instruction manual in PDF to download

User Manual for Music Hall mmf-1.5 3-Speed Turntable

Click to enlarge the picture
Music Hall mmf-1.5 3-Speed Turntable Contents of the user manual for the Music Hall mmf-1.5 3-Speed Turntable
  • Product category: Turntables Music Hall
  • Brand: Music Hall
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Music Hall Turntables

Music Hall mmf-1.5 3-Speed Turntable Music Hall mmf-1.5 3-Speed Turntable Music Hall mmf-1.5 3-Speed Turntable Music Hall mmf-1.5 3-Speed Turntable
User manual for the Music Hall mmf-1.5 3-Speed Turntable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Music Hall product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!



Product description

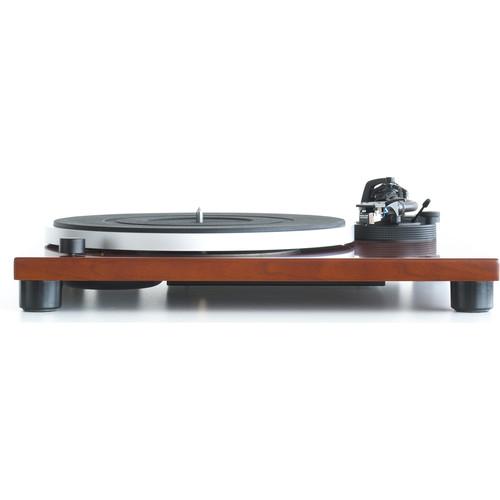

Enjoy your favorite vinyl records with the mmf-1.5 3-Speed Turntable from Music Hall. It plays vinyl records at 33 1/3, 45, and 78 rpm and features a built-in speed control circuit that ensures the accuracy of the three speeds. A built-in phono preamp enables you to connect the turntable directly to your current stereo system or amplifier. The headshell is removable and comes with a Music Hall Melody cartridge preinstalled and precision aligned. The belt comes pre-mounted to the platter, making setup fast and easy. A hinged dust cover keeps your mmf-1.5 protected when not in use.
  • Real cherry wood veneer

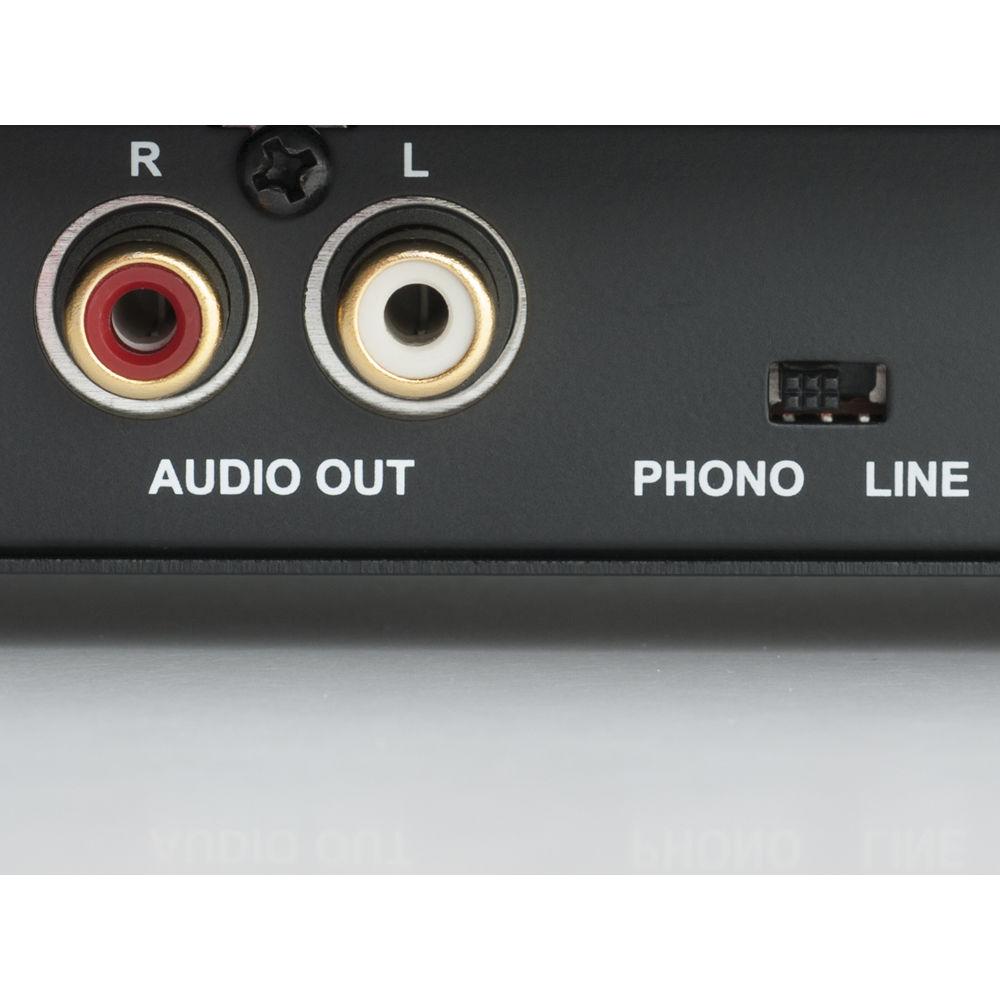

  • Built-in phono preamplifier that can be bypassed by plugging the mmf-1.5 into a separate phono preamp
  • 9" S-shaped aluminum tonearm

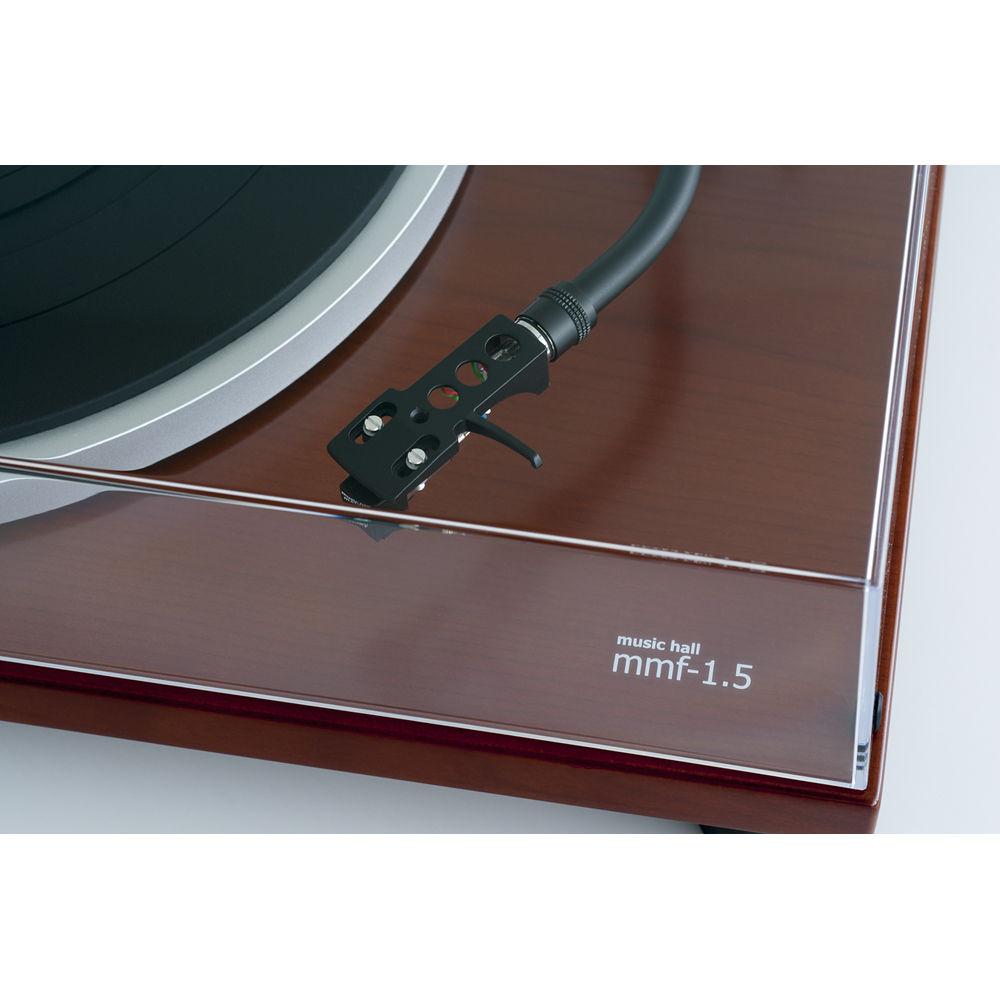

  • Removable headshell for easy cartridge changing
  • Low-noise belt-drive design
  • Stiff and solid MDF plinth
  • Separately isolated DC synchronous motor for speed stability
  • Three-speed motor provides 33 1/3, 45, and 78 rpm
  • Mounted and aligned Music Hall Melody moving magnet cartridge
  • Adjustable electronic speed control
  • Vibration-damping feet
  • Gold RCA connectors and detachable phono cable
  • Full-size aluminum platter and vibration-damping platter mat included
  • Worldwide compatibility
  • Dust cover and 45 rpm adapter included
  • Quick and easy to assemble
UPC: 602573245347 In the Box Music Hall mmf-1.5 3-Speed Turntable
  • Counter Weight
  • Platter Mat
  • Headshell Assembly
  • 45 rpm Adapter
  • Power Adapter
  • 2 x Hinges
  • 3 x Transfer Plug Adapters
  • 2P RCA Cable
  • Dust Cover
  • Platter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Music Hall mmf-1.5 3-Speed Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Music Hall MMF-1.5 Specs

    Type 3-speed full manual
    Motor DC motor
    Driving Method Belt drive
    Turntable Platter 12" / 305 mm diameter, aluminum die-cast
    Speeds 33 1/3, 45, and 78 rpm
    Wow and Flutter Typical: Less than 0.1% WTD at 3 kHz RMS (CD-4005)
    Limit: Less than 0.15% WTD at 3 kHz RMS (CD-4005)
    S/N Ratio Typical: More than 65 dB (DIN-B) (SS-4242)
    Limit: More than 62 dB (DIN-B) (SS-4242)
    Speed Tolerance at Normal Pitch 3000 Hz +2/-1% (CD-4005)
    Type Moving magnetic cartridge
    Stylus Diamond
    Channel Separation More than 15 dB at 1 kHz (CD-4005)
    Channel Balance Within 2.5 dB at 1 kHz (CD-4005)
    Phono Output Level 1.5-3.6 mV at 1 kHz, 1.97" / 5 cm per sec (CD-4005)
    Line Output 90-216 mV at 1 kHz, 1.97" / 5 cm per sec (CD-4005)
    RIAA Equalization Curve Accuracy 20 Hz - 20 kHz: +1/-3 dB
    Type Music Hall Melody
    Output Voltage 2.5 mV +/-3 dB at 1 kHz, 1.4" / 3.54 cm per sec
    Channel Separation At 1 kHz: Over 18 dB
    Channel Balance At 1 kHz: 25 dB or less
    Frequency Response At 10/1 kHz: +/-3 dB
    Tracking Force Vertical: 2.0 +/-0.5 g
    Type Static balanced S-shaped
    Effective Arm Length 9" / 230 mm
    Overhang 0.59" / 15 mm
    Offset Angle 22°
    Tracking Error Angle 3° or less
    Stylus Pressure Adjustment Rotation movability (1 rotation 4 g)
    Cartridge Weight 5.0 - 8.5 g
    Including Headshell: 15.0 - 18.5 g
    Anti-Skating Adjustment 0 - 3 g
    Arm Lifter Oil damper type
    Stylus Height 8.0 - 10.5 mm
    Lifter Descent Time 1.5 - 3.0 sec
    (Stylus Pressure: 2 g)
    Sensitivity Horizontal/Vertical: Less than 0.2 g
    Power Supply 12 VDC, 2 A, universal
    Power Consumption 4 W
    Dimensions 17.1 x 14.5 x 5.0" / 43.5 x 36.7 x 12.7 cm
    Weight 12 lb / 5.4 kg
    Package Weight 15.7 lb
    Box Dimensions (LxWxH) 21.0 x 17.3 x 9.0"
