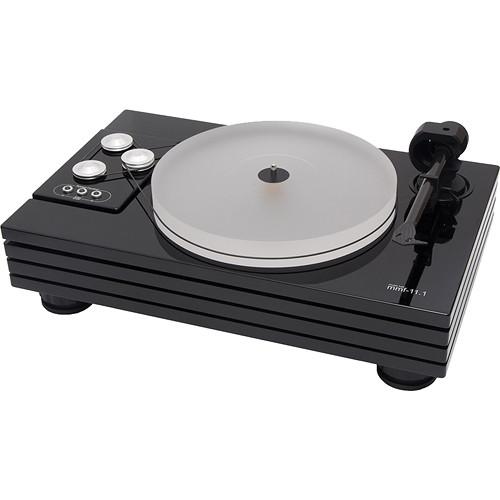

Product description The mmf-1.1 from Music Hall is a two-speed, belt-driven audiophile turntable employing the company's quadruple plinth construction. The tone arm is mounted to the upper plinth and the inverted ceramic main bearing is mounted to the second plinth, allowing the partially sunken, 1.5" thick acrylic platter to spin freely. Attaching the bearing to the second plinth improves cartridge tracking and significantly lowers background noise.
The adjustable magnetic-levitation isolation feet, microprocessor speed control, motors, flywheel, and wiring are all mounted to the bottom plinth. The motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform, which is separately isolated from the upper three main plinths.

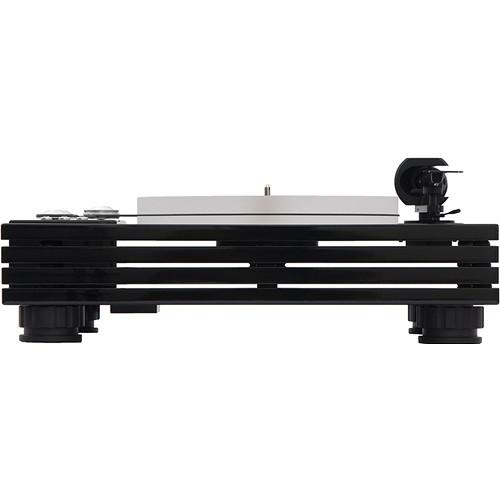

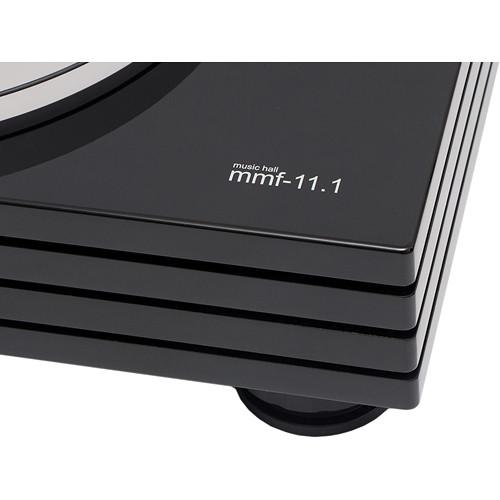

Sorbothane hemispheres separate each of the three plinths and provide additional vibration damping. The bottom plinth functions as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The turntable features a high gloss piano black lacquer finish, and a large encapsulating acrylic dustcover is included. - Quadruple plinth construction

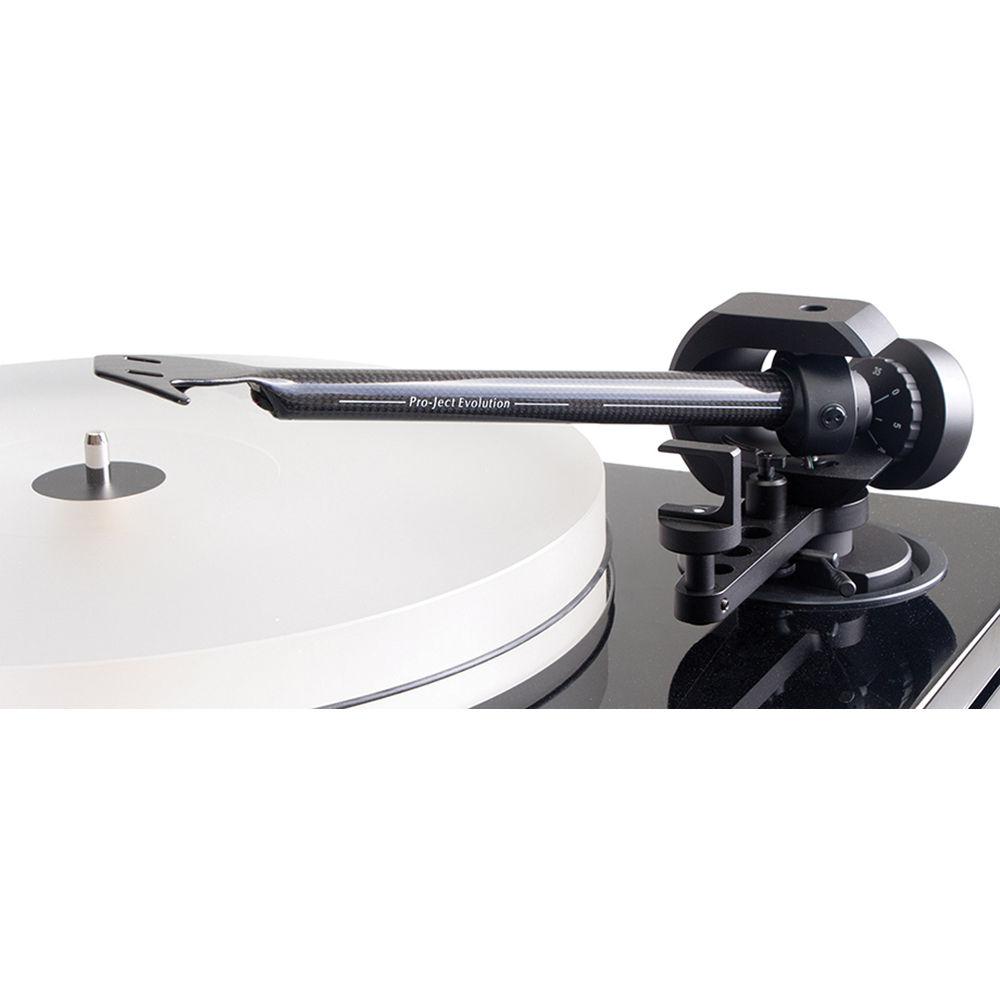

- One piece Project 9cc Evolution carbon fiber tone arm
- Arm uses four hardened Swiss ABEC 7 ball races in an inverted bearing design
- Flexible internal tone arm wire drawn from high purity copper with only two contact points from cartridge to output connectors
- Counterweight's center of gravity is level with the stylus tip and is decoupled from the arm and acts as a resonance damper
- Fully adjustable azimuth, VTA, and dampened arm lift

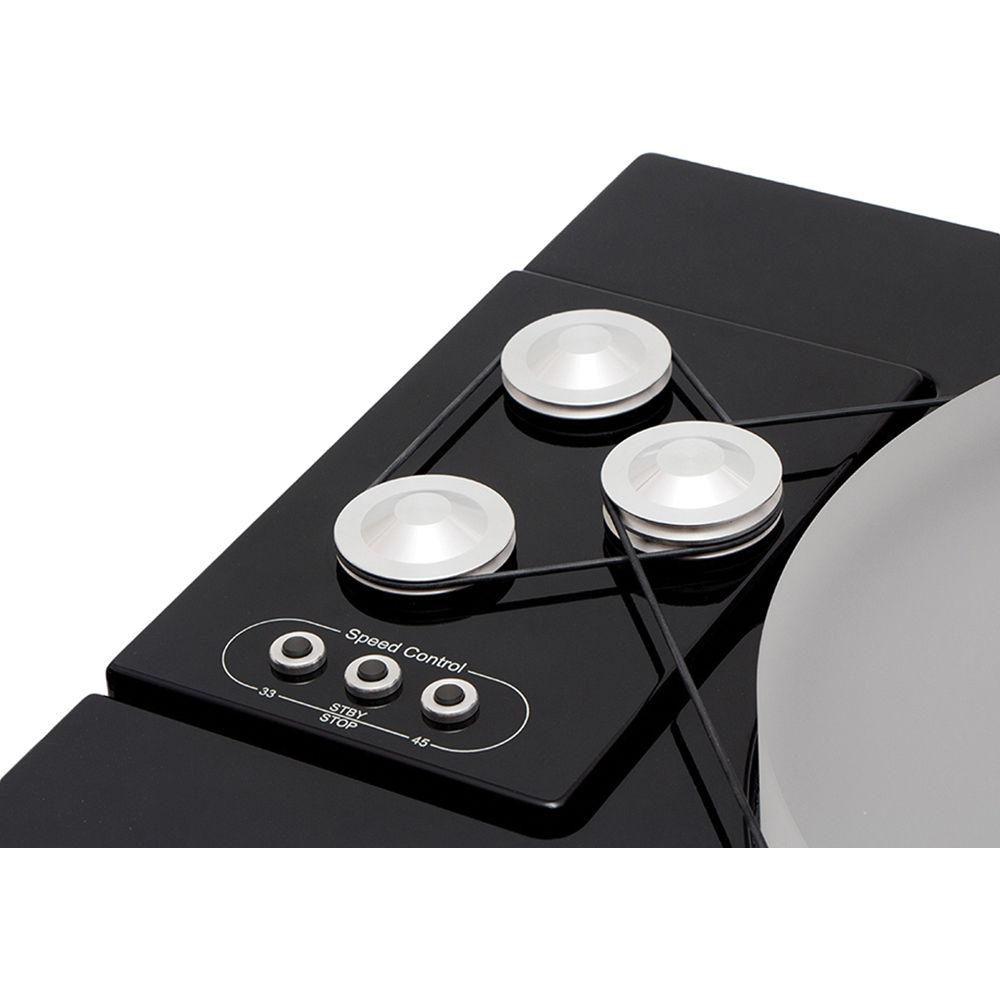

- Microprocessor electronic speed controlled dual motor single flywheel drive system
- 33 1/3 and 45 rpm speed change at the touch of button
- Motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth
- Dual motor flywheel system sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge

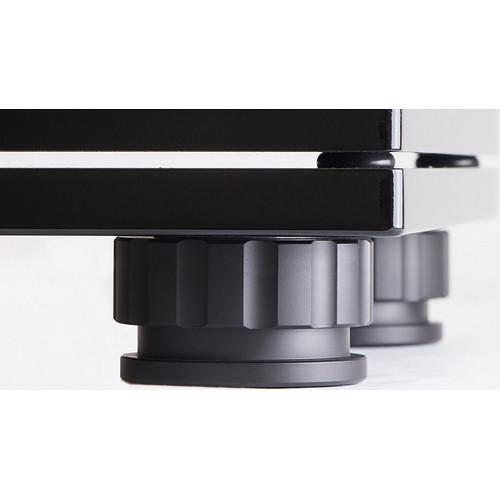

- Magnetic-levitation adjustable isolation feet
- Inverted ceramic main bearing for super quiet fluid operation
- Gold RCA connectors and detachable phono cable
- Low noise fully manual belt drive design
- Removable acrylic dust cover and 45 rpm adapter
In the Box Music Hall mmf-11.1 - Two-Speed Audiophile Turntable (No Cartridge) AC Power Cable Dust Cover 45 RPM Adapter Parts Bag with Adjustment Tools Instruction Manual One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall mmf-11.1 - Two-Speed Audiophile Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall MMF-11.1 Specs | | | Speeds | 33⅓ or 45 rpm (electronic speed control)
Deviation: +/-0.1%
Variance: < +/-0.08% | | Motor | 2 x synchronous motors, controlled via microprocessors | | Drive Mechanism | Silicone rubber belt | | Tone Arm | Effective Arm Length: 9" (230 mm)
Overhang: 0.71" (18 mm)
Effective Arm Mass: 8.5 g
Mounting Distance: 8.3" (212 mm)
Angle Crank: 24°
Course Zero Error Angle: ø 130.5, ø 243.7
Force on Tip: 0-to 3 g | | Cartridge | None | | Platter Diameter | 11.8" (30 cm)
Weight: 7.4 lb (3.6 kg) | | Mechanical | Distance: > -45 dB | | Electrical | Distance: >-65 dB | | | | Connectors | 2 x RCA | | Power Requirements | 90~246V AC, 47 to 63 Hz switching power supply (EU, UK, USA)
Input: 23W DC | | Dimensions (WxHxD) | 21.3 x 13.8 x 7.8" (540 x 350 x 197 mm) | | Weight | 39.5 lb (17.9 kg) |
