User Manual for Music Hall MMF-5.3WH Turntable Click to enlarge the picture
Contents of the user manual for the Music Hall MMF-5.3WH Turntable
- Product category: Turntables Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Turntables
|
User manual for the Music Hall MMF-5.3WH Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|

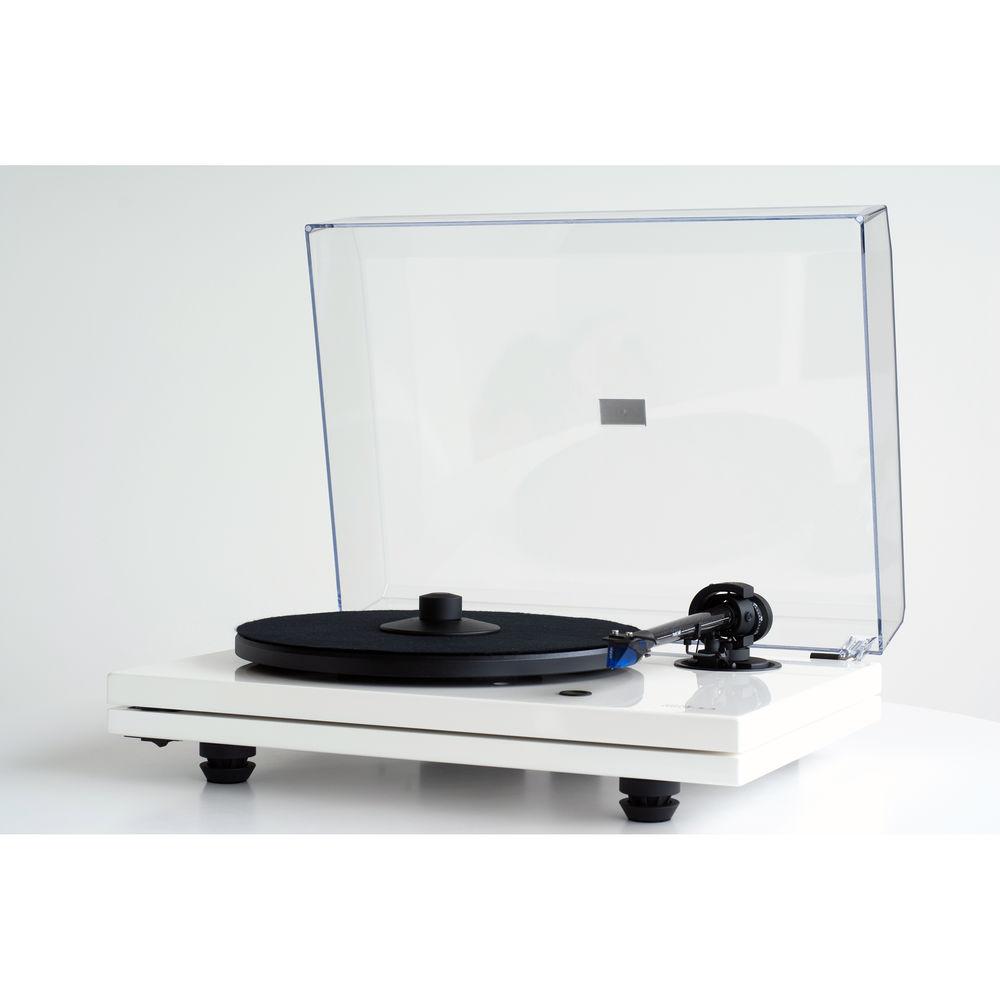

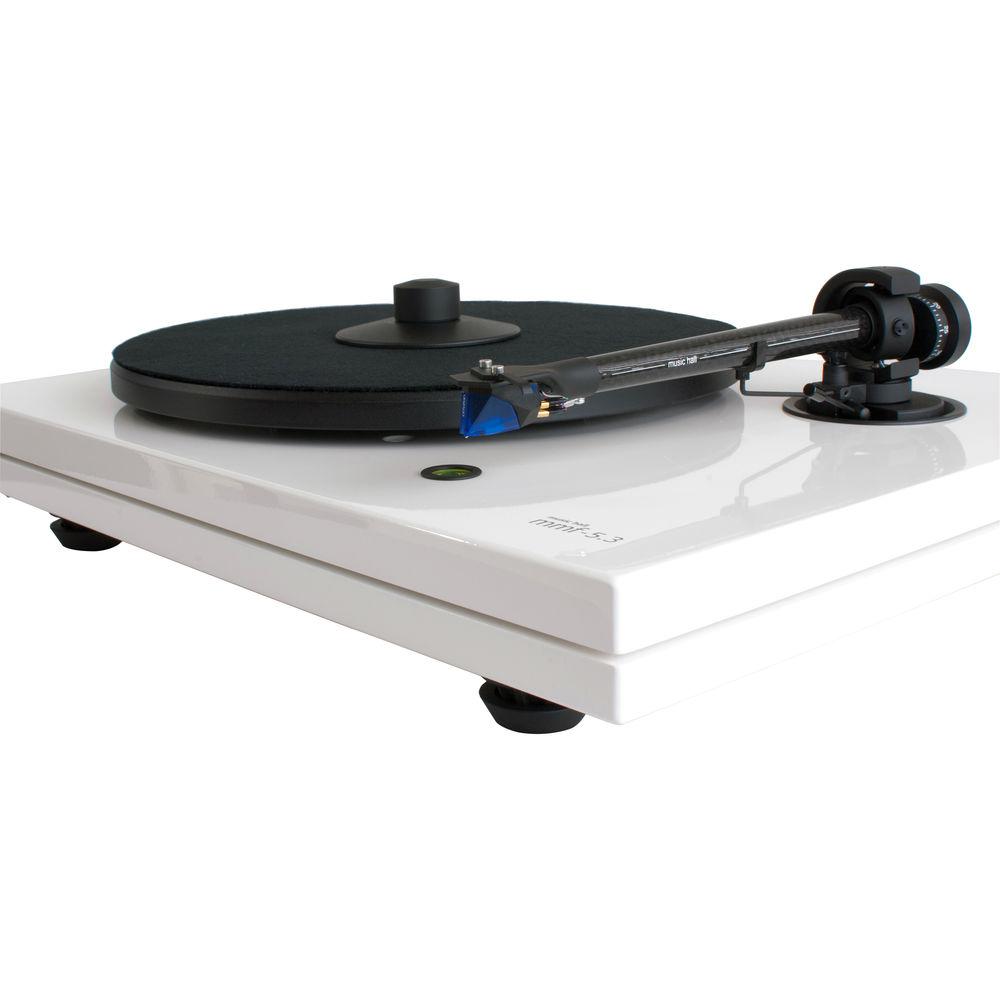

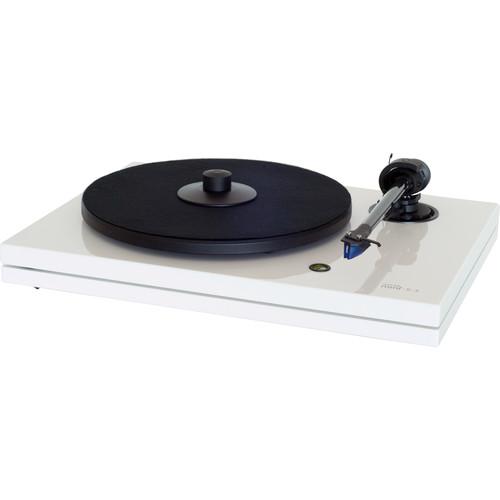

Product description The white MMF-5.3 Turntable from Music Hall is a 2-speed, belt-driven audiophile turntable employing unique dual-plinth construction. The top tier 9" alloy tonearm with flexible internal wire drawn from high-quality copper. The counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper. This turntable is also equipped with high quality gold RCA connectors and detachable phono cable. - High-gloss white lacquer finish
- 9" alloy tonearm with flexible internal wire drawn from high-purity copper
- Counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
- DC synchronous motor for speed stability, separately isolated on the lower platform
- Two-speed stepped motor pulley for 33⅓ and 45 rpm

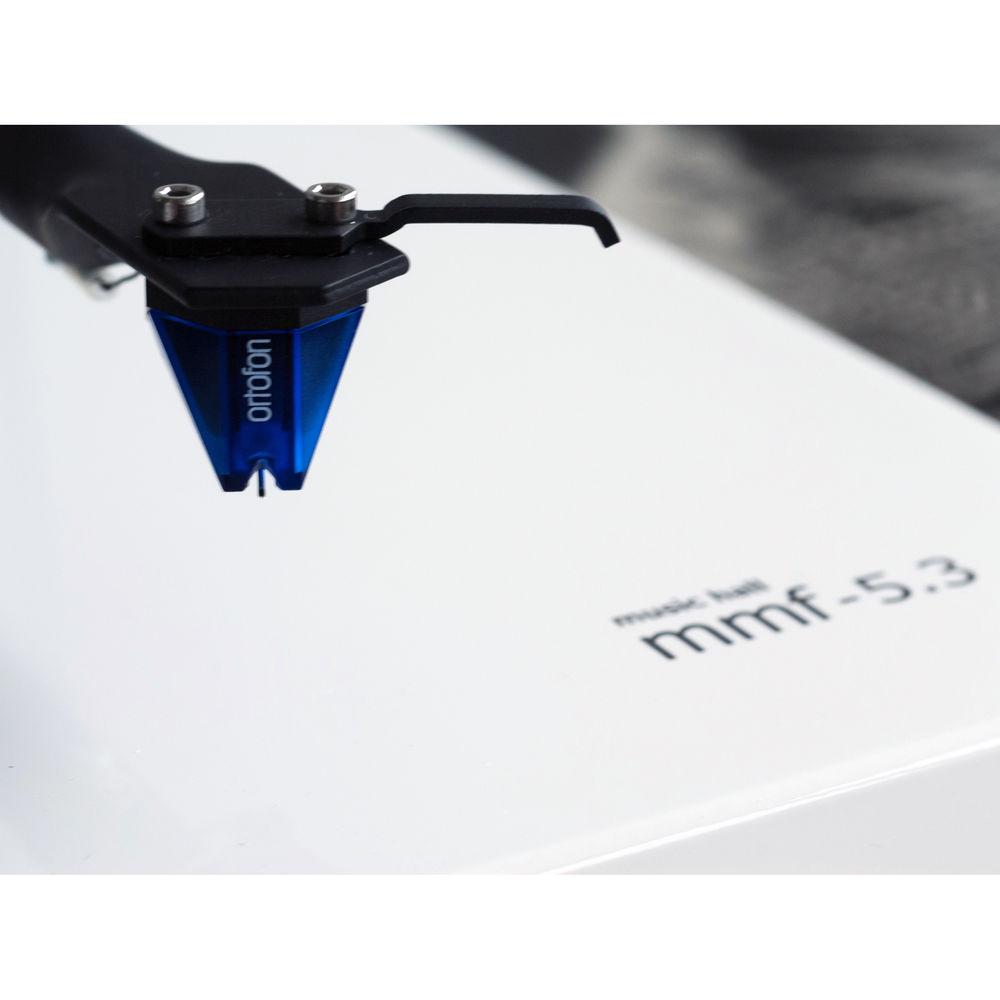

- Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus
- The cartridge supplied is properly aligned and mounted
- Precision stainless-steel main bearing sheathed in Teflon for noise-free fluid operation
- Dynamically balanced alloy platter with soft felt mat

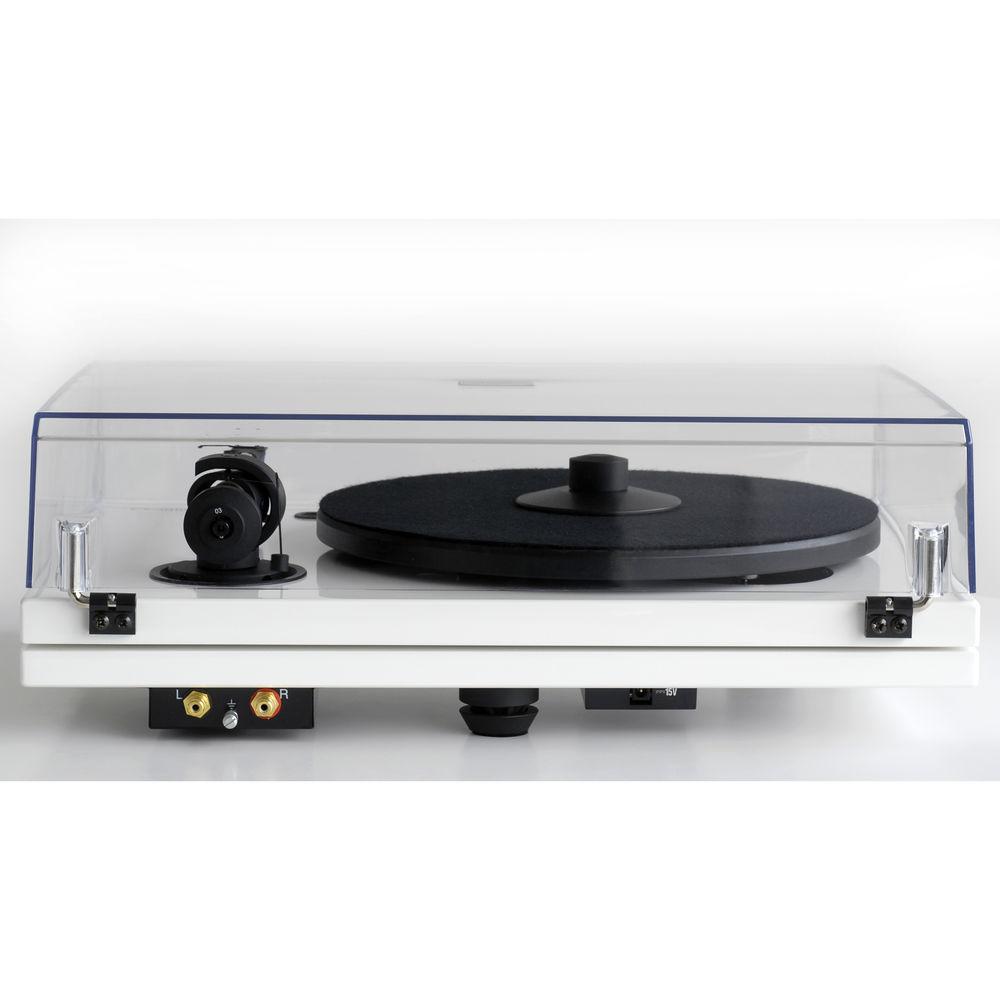

- Gold-plated RCA connectors and detachable phono cable
- Vibration damping adjustable feet
- Built-in round spirit level for proper leveling
- Low-noise fully manual belt-drive design
In the Box Music Hall MMF-5.3WH Turntable (White) Dust Cover 45 rpm Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall MMF-5.3WH Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall MMF-5.3WH Specs Speeds | 33.3 rpm (manual change to 45 rpm) | Wow and Flutter | ±0.10% | Speed Deviation | ±0.8% | Rumble Max | ≥70 dB | Tone Arm | Effective Length: 9.0" (22.9 cm) Mass: 0.3 oz (8.5 g) Weight: 8.8 oz (250.0 g) (Without counterweight) | Power Supply | 15 V / 0 to 0.8 mA DC universal power supply | Power Connections | 110 / 120 or 230 / 240 V; 50 or 60 Hz | Standby Power Consumption | <1 W | Overhang | 0.7" (1.8 cm) | Dimensions (W x D x H) | 18.25 x 13.25 x 5.50" (46.36 x 33.66 x 14.0 cm) | Weight | 24.0 lb (10.9 kg) |
