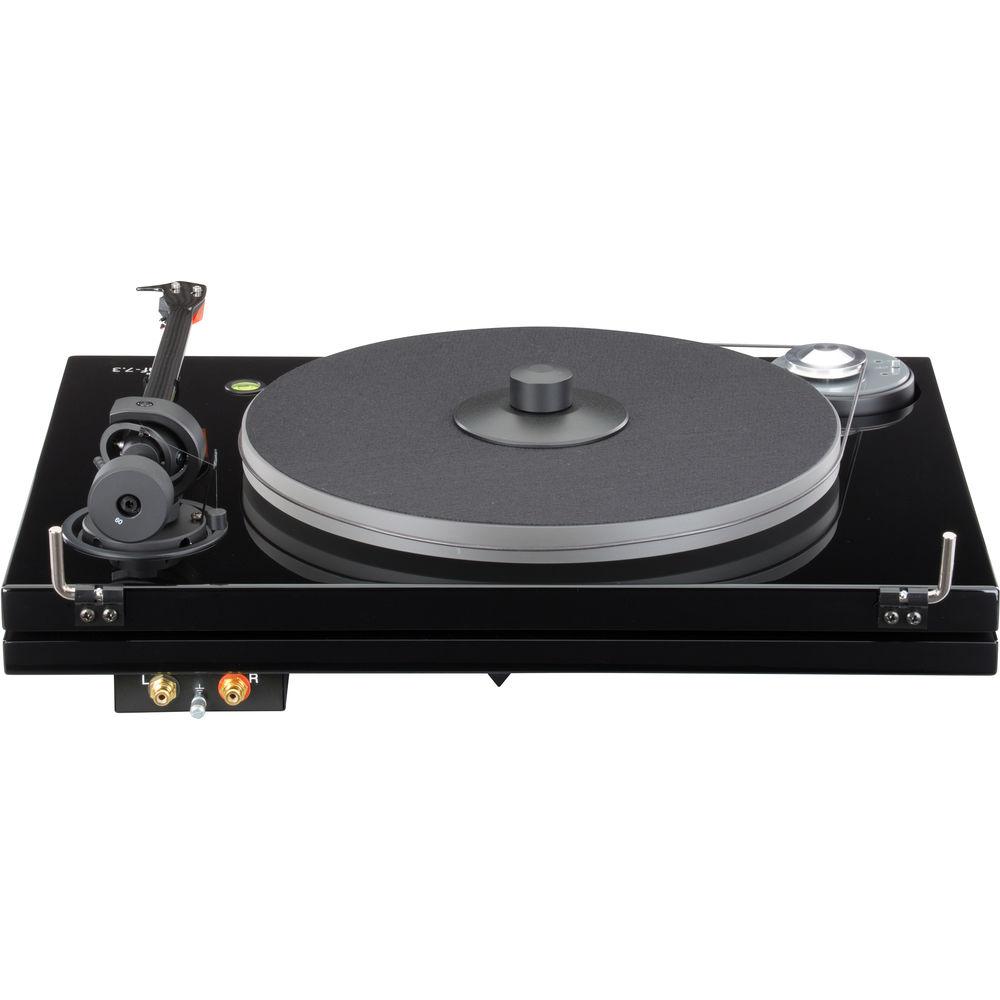

User Manual for Music Hall MMF-7.3 2-Speed Turntable with Ortofon 2M Bronze Cartridge Click to enlarge the picture
Contents of the user manual for the Music Hall MMF-7.3 2-Speed Turntable with
- Product category: Turntables Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Turntables
 |
User manual for the Music Hall MMF-7.3 2-Speed Turntable with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|

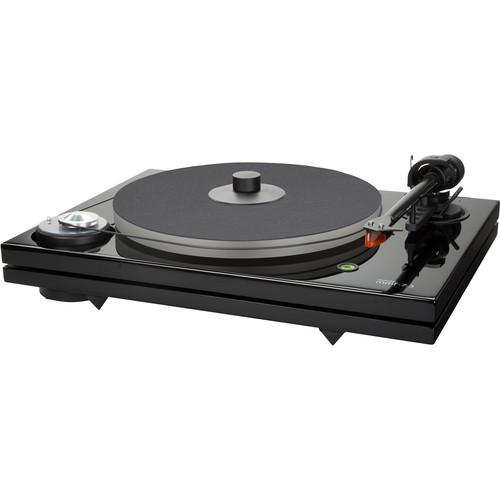

Product description The black lacquer MMF-7.3 2-Speed Turntable with Ortofon 2M Bronze Cartridge from Music Hall is a 2-speed belt driven audiophile turntable employing dual-plinth construction. The design of the MMF-7.3 isolates the critical sound reproducing components (platter, main bearing, tonearm, and cartridge) on the top platform from the adjustable tip-toe feet, which are mounted on the bottom platform. The motor speed controls and wiring are isolated on their own platform and completely decoupled from the turntable. Sorbothane hemispheres separate the two platforms and provide additional suspension and vibration damping. The MMF-7.3 Turntable comes with an Ortofon 2M Bronze cartridge. - Carbon fiber tonearm with flexible internal wire
- Counterweight's center of gravity is in level with the stylus tip, decoupled from the arm, and acts as a resonance damper
- Completely isolated/decoupled DC motor with 33-1/3 and 45 rpm speed controls located in the front left corner of the turntable, thus canceling any potential vibration from the motor/belt to the cartridge
- Motor sits on its own resonance damping puck
- Front motor position eliminates motor-to-cartridge vibration
- Ortofon 2M Bronze cartridge, with a nude fine line stylus, is properly aligned and mounted
- Precision stainless steel main bearing sheathed in Teflon for noise-free, fluid operation
- Non-resonant acrylic platter with metal screw-on record clamp and soft felt mat
- Gold-plated RCA connectors and detachable phono cable
- Adjustable tip toe feet with anti-scratch cups
- Low-noise fully manual belt drive design
- Built-in round spirit level for proper leveling
In the Box Music Hall MMF-7.3 2-Speed Turntable with Ortofon 2M Bronze Cartridge (Black Lacquer) Ortofon 2M Bronze Cartridge Dust Cover 45 rpm Adapter Manual PDF 462kbfuyrtvwxbdtxxvvvtasx Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall MMF-7.3 2-Speed Turntable with Ortofon 2M Bronze Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall MMF-7.3 Specs | Power Supply | 15 V / 0 to 0.8 mA DC
Universal power supply | | Power Connections | 100-240 VAC, 50/60 Hz | | Standby Power Consumption | < 1 W | | Speeds | 33-1/3 rpm
(manual change to 45 rpm) | | Wow and Flutter | ± 0.10 % | | Speed Deviation | ± 0.06 % | | Rumble Max | > -73 dB | | Tone Arm | Length: 9" (23 cm) | | Overhang | 0.7" (18 mm) | | Dimensions (W x D x H) | 18.3 x 13.3 x 5.50" (46.5 x 33.7 x 13.9 cm) | | Weight | Tonearm: 8.8 oz (250 g) without counterweight
Effective Tonearm: 0.3 oz (8.5 g) | | | | Package Weight | 29.4 lb | | Box Dimensions (LxWxH) | 22.1 x 17.8 x 12.0" |
