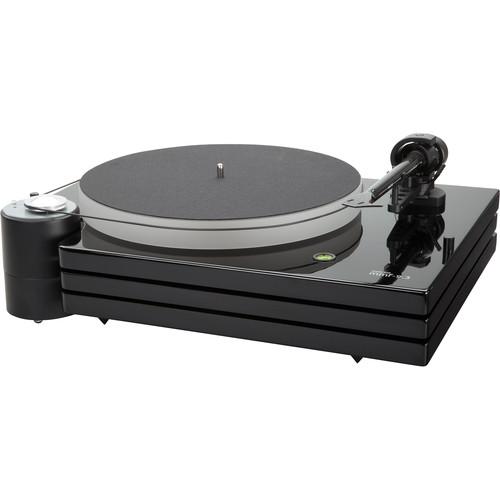

User Manual for Music Hall MMF-9.3 Dual-Speed Turntable Click to enlarge the picture
Contents of the user manual for the Music Hall MMF-9.3 Dual-Speed Turntable
- Product category: Turntables Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Turntables
|
User manual for the Music Hall MMF-9.3 Dual-Speed Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|
Product description The black lacquer MMF-9.3 Turntable from Music Hall is a two-speed, belt-driven audiophile turntable that employs a triple plinth construction. Its design isolates the critical sound-reproducing top platform components, such as the platter, main bearing, and tonearm, from the bottom platform mounted adjustable tip-toe feet and wiring. The motor and speed controls are isolated on their own vibration damping base and completely decoupled from the turntable. Sorbothane hemispheres separate each of the three platforms and provide additional suspension and vibration damping. -
- Triple plinth construction
- One-piece full carbon fiber tonearm
- Counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
- Completely isolated/decoupled DC motor with 33 and 45 rpm speed controls located in the front left corner of the turntable, thus canceling any potential vibration from the motor/belt to the cartridge (cartridge not included)
- Motor sits on its own resonance damping puck
- Inverted ceramic main bearing for quiet and fluid operation
- Non-resonant, 1” thick acrylic platter
- Soft felt platter mat
- High-quality gold RCA connectors and detachable phono cable
- Adjustable tip-toe feet with anti-scratch cups
- Low noise fully manual belt drive design
- Built-in round spirit level for proper leveling
- Dust cover and 45 rpm adapter included
- Easy assembly
In the Box Music Hall MMF-9.3 Dual-Speed Turntable (No Cartridge, Black Lacquer) Dust Cover 45rpm Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall MMF-9.3 Dual-Speed Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall MMF-9.3 TURNTABLE Specs | | | Speeds | 331/3 rpm (manual change to 45 rpm)
Deviation: ±0.1% | | Rumble Max | > -73 db | | Motor | 15 VDC, decoupled | | Drive Mechanism | Not Specified by Manufacturer | | Cartridge | Not Applicable | | Stylus | Not Applicable | | Effective Arm Length | 9.0" (23 cm) | | Frequency Range | 20 Hz to 22 kHz ±3 dB | | Channel Balance | 1 dB maximum @ 1 kHz | | Signal to Noise Ratio | Not Specified by Manufacturer | | Channel Separation | 25 dB @ 1 kHz | | Sensitivity | 0.5 mV + 1 dB (1 kHz @ 5 cm/sec) | | | | Load Resistance | 100 Ohms | | Load Capacitance | 100 to 1000 pF | | Internal Inductance | 12 mH | | Internal Resistance | 8 Ohms | | Wow and Flutter | ±0.01 % | | Power Output | 4/0 W in stand-by | | Connectors | High-quality gold RCA connector
Detachable phono cable | | | | Power Requirements | 15 VDC / 0 to 0.8 mA universal power supply | | Power Consumption | Standby: < 1 W | | Vertical Tracking Angle | 20° | | Equivalent Tip Mass | 0.35 mg | | Overhang | 0.71" (18 mm) | | Dimensions (WxHxD) | Platter Diameter: 12" (30 cm)
Fixing Centers: 0.5" (1.3 cm)
Overall: 18.25 x 13.25 x 7.25" (46.4 x 33.7 x 18.4 cm) | | Weight | Tonearm: 8.81 oz (250 g)
Playing Load: 1.5 to 2.0 g (1.75 g nominal) |
