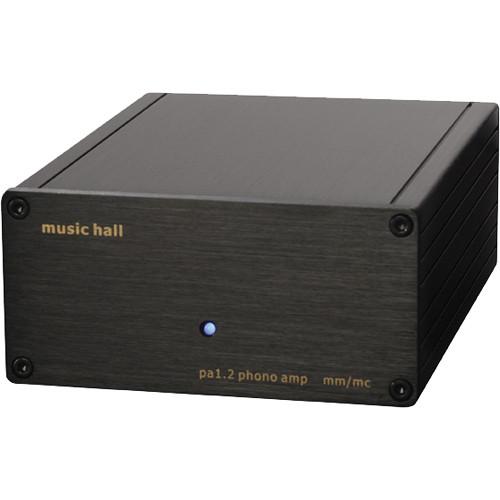

User Manual for Music Hall PA1.2 Phono Amplifier Click to enlarge the picture
Contents of the user manual for the Music Hall PA1.2 Phono Amplifier
- Product category: Phono Preamplifiers Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Phono Preamplifiers
|
User manual for the Music Hall PA1.2 Phono Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|
Product description The Music Hall pa1.2 Phono Amplifier is a pre-amplifier for connecting a turntable to either a receiver or integrated amplifier. The unit works with both moving magnet (mm) and moving coil (mc) phono cartridges.
The preamplifier is housed in an extruded aluminum chassis that shields the electronics from stray magnetic fields and enables low noise operation. The unit allows you to amplify the phono out of your record player to a line level signal for use in your system. UPC: 837654659472 In the Box Music Hall PA1.2 Phono Amplifier 15 VAC Power Supply Limited 1-Year Warranty User Manual PDF 77.1kbddrfdbcstbb Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall PA1.2 Phono Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall pa1.2 Specs | Inputs | 2 x Phono | | Outputs | 2 x Line Level | | THD | MM < 0.01%
MC < 0.05% | | Gain | MM: 40 dB
MC: 60 dB | | Input Impedance | MM: 47 kΩ 120 pF
MC: 100 Ω 120 pF | | Noise Floor | MM: 86 dB (94 dB A weighted)
MC: 68 dB (75 dB A weighted) | | Output Voltage | MM: 300mV at 1KHz - 3mV (MM Input)
MC: 0.3mV (MC input) | | Maximum Output | 9.5 V at 1 kHz | | Equalization | RIAA curve accuracy: Maximum 0.5 dB at 20 to 20,000 Hz | | Power Supply | US: 15 VAC at 300 mA
Europe: 16 VAC at 200 mA | | Power Consumption | US: 15 VAC at 30 mA
Europe 16 VAC at 30 mA | | RoHS Compliant | Yes | | Dimensions (H x W x D) | 2 x 4.2 x 6" (52 x 107 x 152 mm) | | Weight | Without Power Supply: 17.6 oz (500 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.45 x 6.25 x 2.8" |
