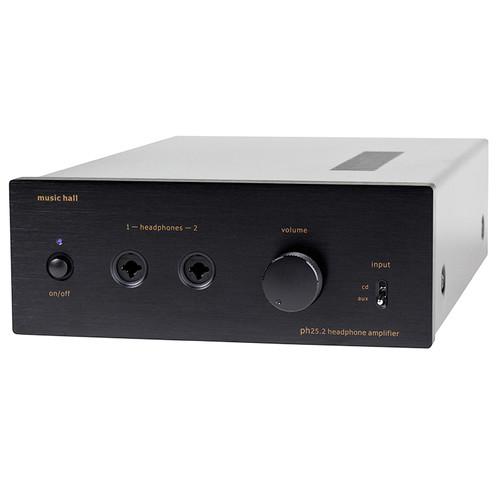

User Manual for Music Hall ph25.2 Tube Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Music Hall ph25.2 Tube Headphone Amplifier
- Product category: Headphone Amplifiers Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Headphone Amplifiers
 |
User manual for the Music Hall ph25.2 Tube Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|

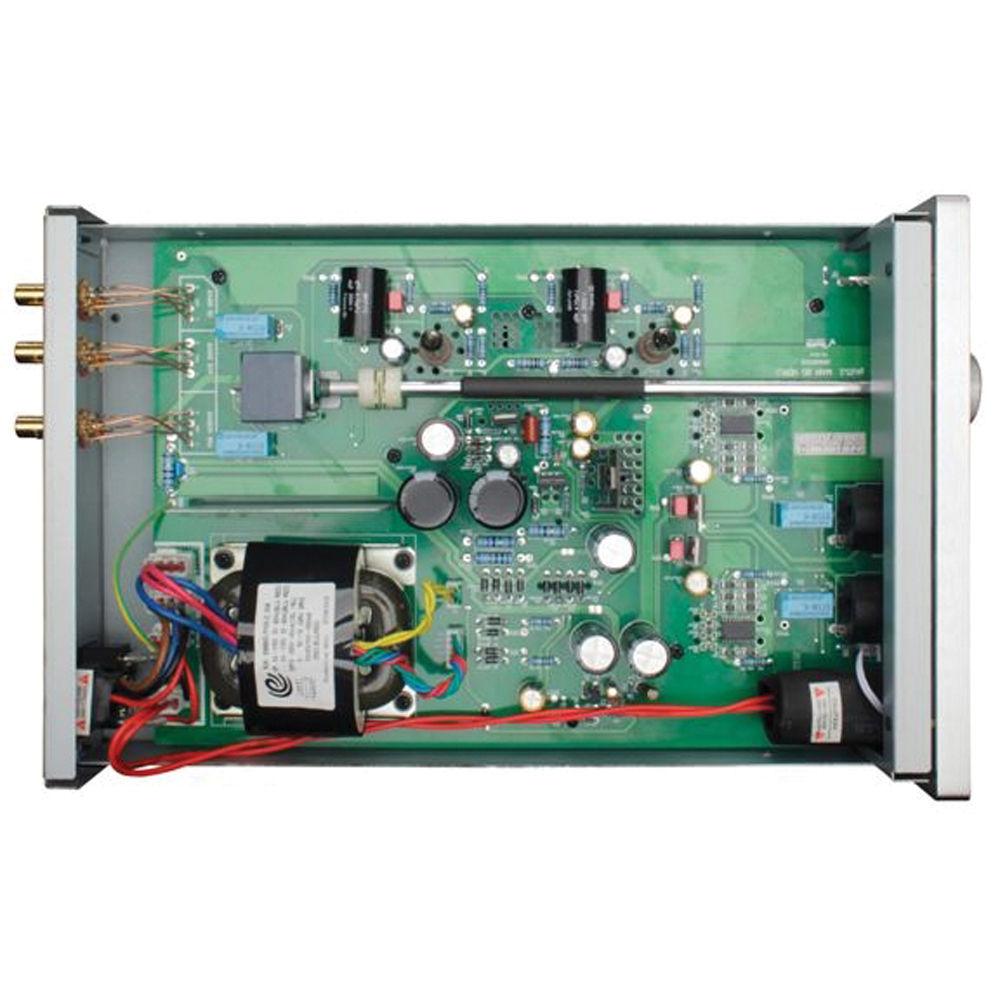

Product description Music Hall's ph25.2 Tube Headphone Amplifier offers a tube pre-amp with solid-state amplification that combine to deliver detail, clarity and presence for all your audio sources. The unit is hand-assembled using high-grade parts for unsurpassed audio quality. The ph25.2 is equipped with a CD and AUX input to allow connection of a variety of sources and has two professional Neutrik headphone output sockets. Additionally, the headphone amp is enclosed in a solid, substantial aluminum alloy fascia - Highly reliable 6N16B tube pre-amp section employing an SRPP circuit
- Professional Neutrik headphone output sockets

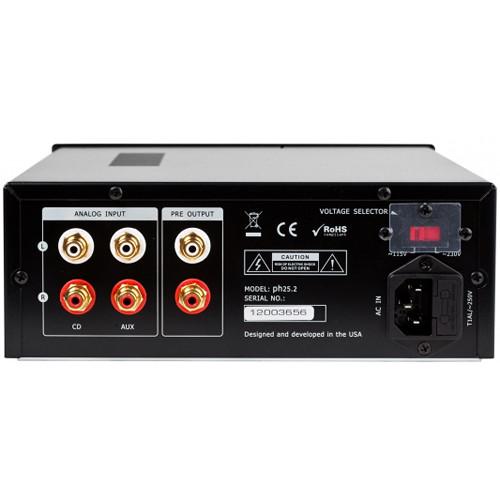

- Two analog inputs; CD and AUX input
- Audiophile-grade CMC RCA sockets eliminate signal loss
- Special low-noise R-core power transformer
- Two buffered headphone outputs incorporate two superior TPA6120 amps
- Precise Alps Type 27 potentiometer with 0.5 dB accuracy
- Solid and substantial 0.5" brushed alloy fascia
UPC: 091037334527 In the Box Music Hall ph25.2 Tube Headphone Amplifier IEC Style Power Cord 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall ph25.2 Tube Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall ph25.2 Specs | Rated Power Output | 650 mW (load = 47 ohms) | | Input Sensitivity | 330 mV | | Frequency Response | 20 Hz - 20 kHz (+/- 1 dB) | | Noise | < 0.8 mV (at maximum volume) | | THD | < 0.25% (1 kHz) | | Power Requirements | 115-230 VAC, 50/60 Hz | | Dimensions (WxHxD) | 8.5 x 3.75 x 13.5" (21.6 x 9.6 x 34.3 cm) | | Weight | 8.0 lb (3.6 kg) | | | | Package Weight | 9.85 lb | | Box Dimensions (LxWxH) | 16.2 x 12.5 x 6.9" |
