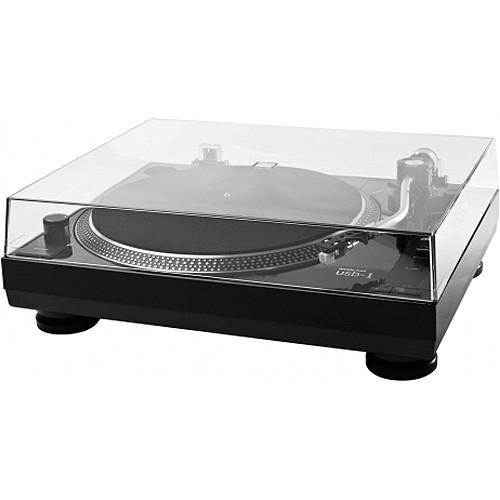

User Manual for Music Hall USB-1 USB Turntable Click to enlarge the picture
Contents of the user manual for the Music Hall USB-1 USB Turntable
- Product category: Turntables Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Turntables
 |
User manual for the Music Hall USB-1 USB Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|
Product description The USB-1 USB Turntable from Music Hall is a two speed turntable that allows you to digitize your vinyl collection through its USB output and included Audacity software. Using its internal analog to digital convertors and the Audacity software, the USB-1 enables you to make digital copies of your vinyl collection in 16 bit, 44.1 or 48kHz quality. Designed to work with both 33 1/3 and 45rpm records, the USB-1 includes a 45rpm adapter for switching between the two speeds

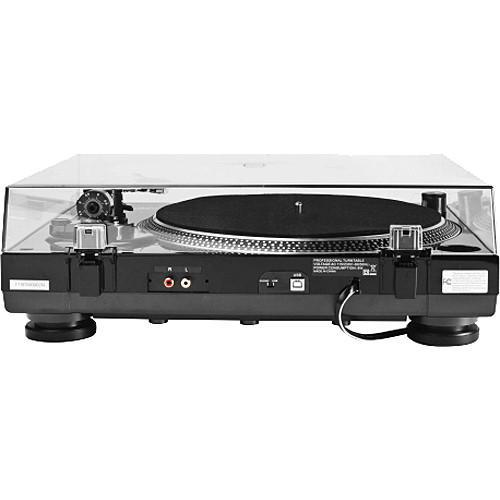

The USB-1 is not limited to digital outputs, and has a built in phono preamp as well as analog 3.5mm RCA stereo outputs that are switchable between phono and line level for broader amplifier compatibility. . - Static balanced S-shaped tone arm with detachable head shell
- Pitch control is adjustable +/- 10%
- Audio Technica AT3600L moving-magnet cartridge
- Anti-skating control for increased stereo balance
- Designed and developed in the US and France
In the Box Music Hall USB-1 USB Turntable Platter Slipmat Head Shell Cartridge USB Cable Counter-weight Audacity Software CD-Rom RCA Cable Dust Cover 45 RPM Adaptor Limited 1-Year Warranty User Manual PDF 849.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall USB-1 USB Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall usb-1 Specs | | | Type | 2-speed full manual | | Motor | DC motor | | Drive Method | Belt drive | | Turntable | 1x aluminum 330 mm diameter | | Speeds | 33 1/3 RPM
45 RPM | | Wow and Flutter | < 0.25% W rms (jis wtd) @ 33 1/3 rpm | | Signal to Noise Ratio | > 50 dB | | Pitch Control Range | +/- 10% | | Starting Time | < 1 s @ 33 1/3 RPM | | Braking Time | < 1 s @ 33 1/3 RPM | | Time for Speed Change | < 1 s from 33 1/3 to 45 RPM
< 1 s from 45 to 33 1/3 RPM | | Speed Tolerance at Normal Pitch | +/- 1.3% | | USB | Computer interface: USB 1.1 compliant Windows XP or Mac OSX
A/D: 16 bit 44.1/48 kHz
D/A: 16 bit 44.1/48 kHz | | | | Type | Static balanced S-shaped with detachable headshell | | Arm Length | 220 mm | | Tracking Error Angle | < 3° | | Cartridge Weight | 6 to 10 g | | Anti-Skating Range | 0 to 4 g | | Line Output Level | 90 to 216 mV at 1 kHz 5 cm/sec (HP-4005) | | Phono Output Level | 1.5 to 3.6 mV at 1 kHz 5cm/sec (HP-4005) | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | > 15 dB | | Channel Balance | Within 2.5 dB @ 1 kHz | | Needle Pressure Range | 3 to 4 g | | High of Cue | First track: 6 to 11 mm | | Descend of Cue | 1 to 3 s | | EQ Amp | Output: 150 mV +/- 4 dB (2.5 mV @ 1 kHz)
RIAA: 20 Hz to 20 kHz +1/-3 dB (1.5 mV @ 1 kHz) | | | | Outputs | 1x USB
2x 3.5 mm RCA | | Power Supply | AC 115 V 60 Hz or 230 V 50 Hz (user selectable) | | Power Consumption | 8 W | | Operating Temperature | 70 to 75º F (21 to 25º C) | | Dimensions (WxDxH) | 18 x 14 x 6" (450 x 350 x 145 mm) | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 20.5 x 16.0 x 4.0" |
