User Manual for MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor

Click to enlarge the picture
MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor Contents of the user manual for the MustHD 7" 4K 3G-SDI & HDMI
  • Product category: On Camera Monitors MustHD
  • Brand: MustHD
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MustHD On Camera Monitors

MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor
User manual for the MustHD 7" 4K 3G-SDI & HDMI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MustHD product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MustHD user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MustHD product will considerably shorten its lifespan!



Product description

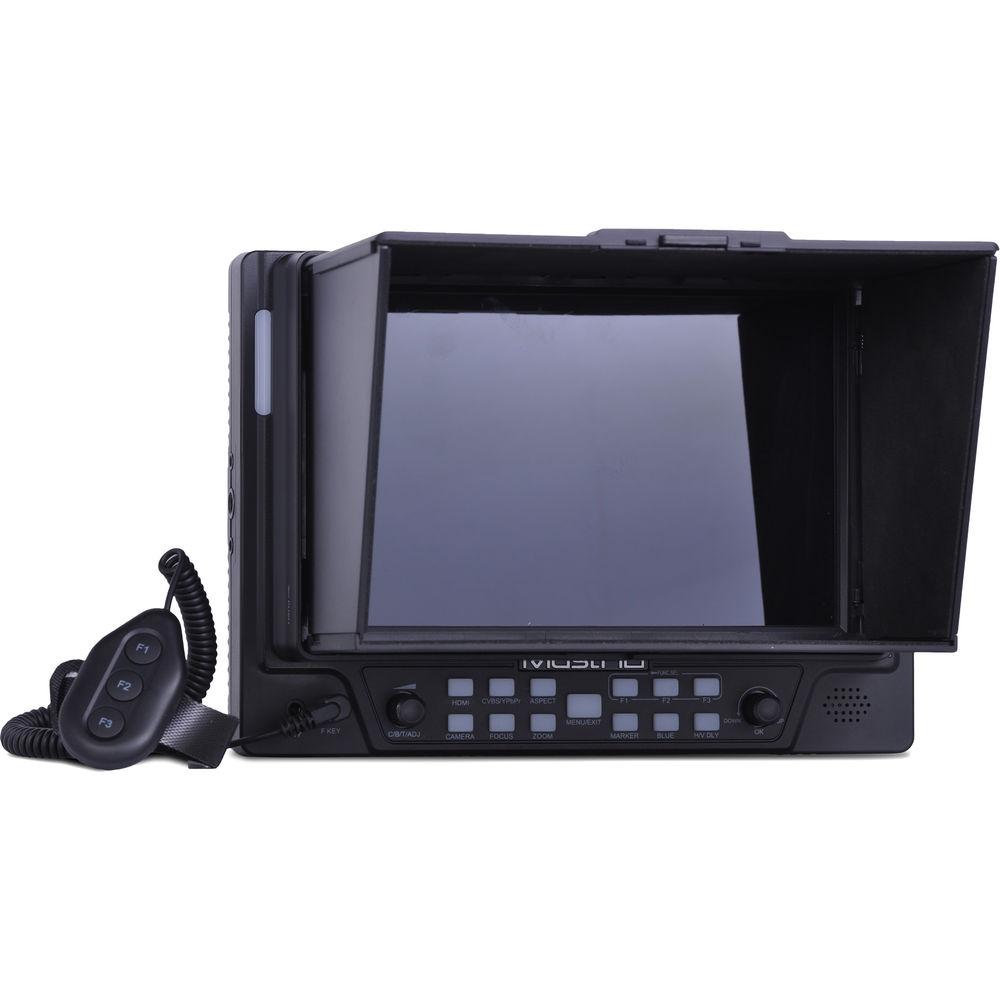

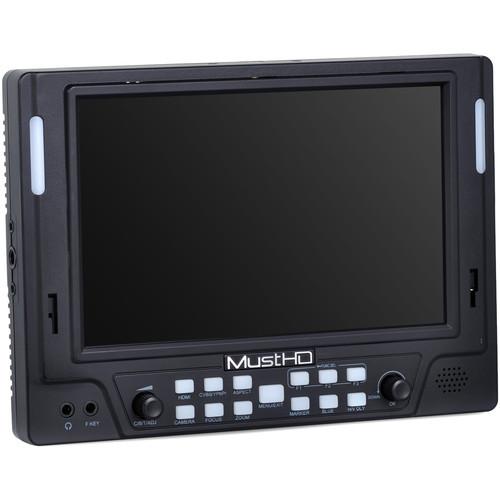

The MustHD 7" 4K 3G-SDI & HDMI IPS Monitor features a 1920 x 1200 HD display, and supports up to DCI 4K signals on input and output. The monitor offers 3G-SDI, HDMI, composite, and tally inputs, and both 3G-SDI and HDMI outputs. The SDI and HDMI inputs are live and can be toggled between via a front panel button. Software functions include Focus Assist and Histogram. A built-in speaker and headphone jack allow for audio monitoring.

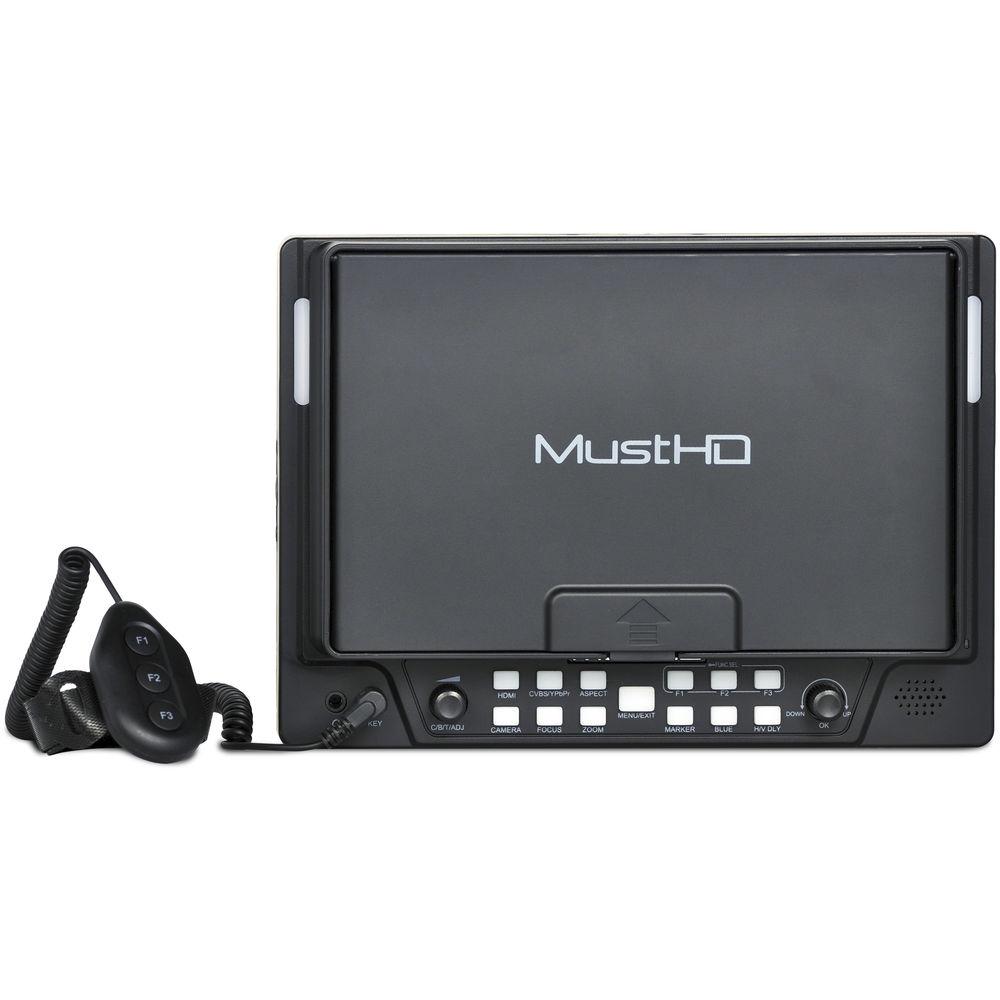

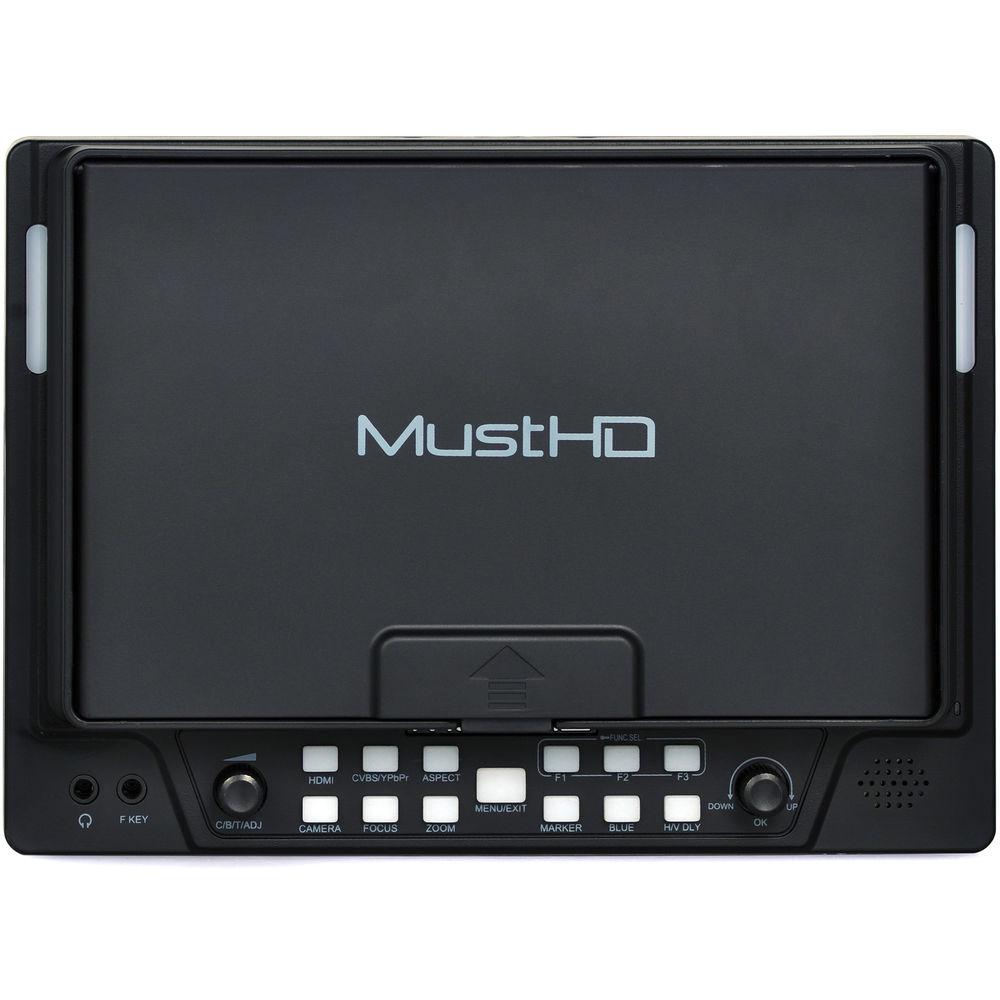

An array of control buttons and knobs, including three assignable function buttons, is available on the front panel. Supplied with the monitor are a sun hood, F970 battery plate, wired remote, and power adapter for continuous operation. A battery is sold separately. Optional LP-E6 and D28S battery plates from MustHD are also supported.
    Key Features
    • 1920 x 1200 HD display
    • Supports up to DCI 4K signals on input and output
    • 3G-SDI, HDMI, composite, and tally inputs
    • 3G-SDI and HDMI outputs
    • Three assignable function buttons
    • Speaker and a headphone jack
    • 450 cd/m² brightness
    • Includes a sun hood, F970 battery plate, wired remote, and more (batteries are sold separately)

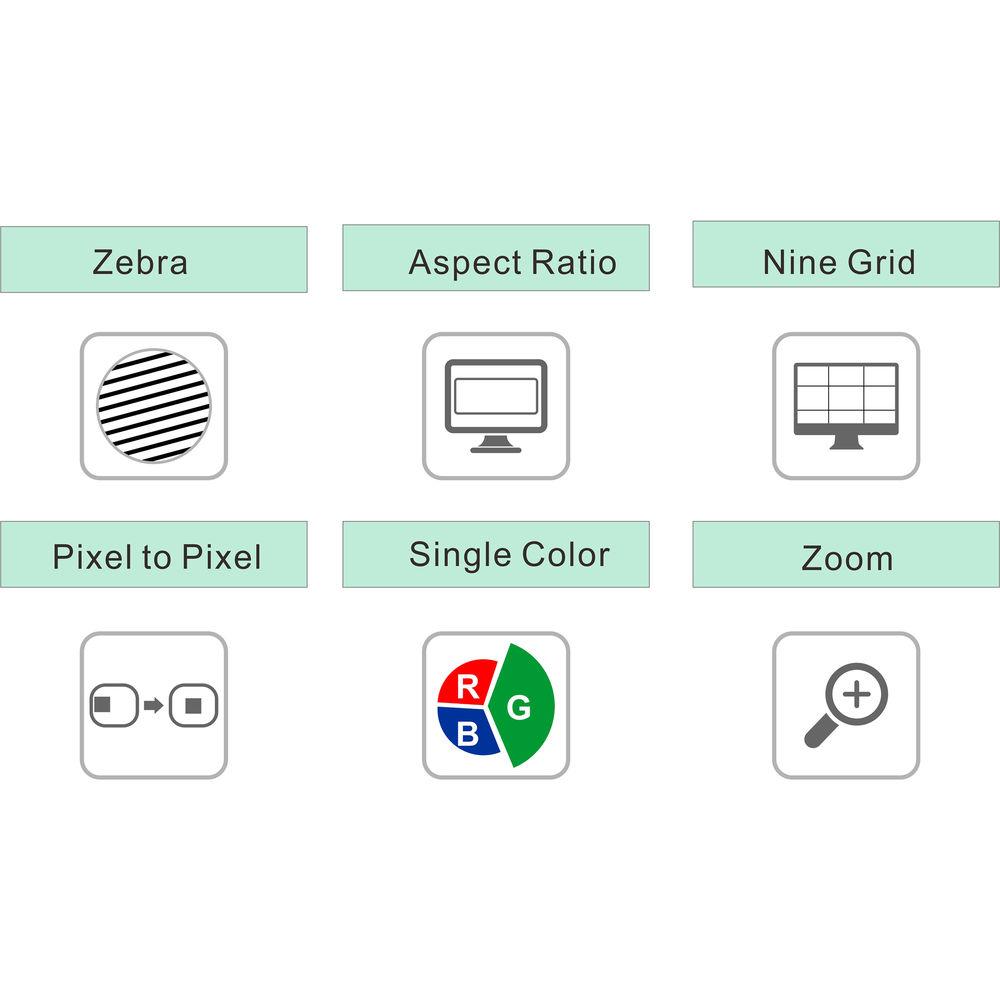

    Software Features
    • Focus Assist
    • Histogram
    • False Color & Single Color
    • Exposure (Zebra)
    • Audio Column
    • Safety Marker & Nine Grid
    • Aspect Ratio
    • Pixel-to-Pixel
    • H/V Mirror
    • Zoom
UPC: 712201661521 In the Box MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor
  • Sun Hood
  • Power Adapter
  • HDMI Cable
  • External Wired Remote
  • F970 Battery Plate
  • Set of 8 Screws
  • Limited 1-Year Warranty
  • User Manual PDF 1.8mb Table of Contents




    Upload User Manual

    Have you got an user manual for the MustHD 7" 4K 3G-SDI & HDMI IPS On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MustHD M702S-4K Specs

    Panel Type IPS-Type LCD
    Display Size 7.0" / 17.8 cm
    Active Area 6 x 3.7" / 151.2 x 94.5 mm
    Screen Resolution 1920 x 1200
    Viewing Angle Horizontal: 178° (89/89)
    Vertical: 178° (89/89)
    Maximum Brightness 450 cd/m2
    Contrast Ratio 1100:1
    Dot Pitch 0.078 x 0.078 mm
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    Image Controls Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers

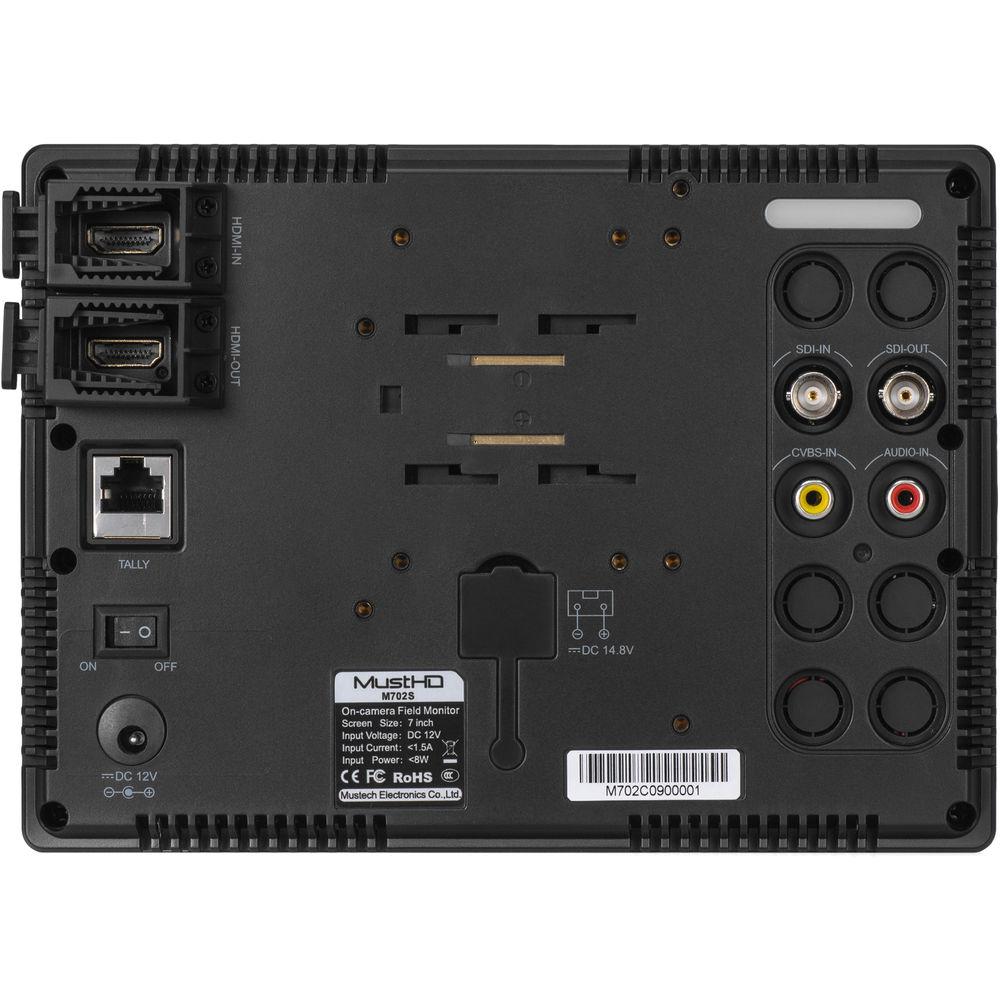

    Video 1 x BNC (3G-SDI) Output
    1 x HDMI Type A Output
    1 x 3BNC (Component) Output
    1 x BNC (Composite) Output
    1 x BNC (3G-SDI) Input
    1 x HDMI Type A Input
    1 x RCA (Composite) Input
    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker 1
    Other I/O 1 x Tally (RJ45)
    Card Slot None
    Video Format HDMI
    DCI 4K: 24/25/30/60
    UHD 4K: 24/25/30/60
    1080p: 60
    1080i: 60
    720p: 60
    576p: 50
    PAL
    480p: 60
    NTSC
    DC Input Power 6 to 20 VDC
    Battery Type 1 x L-Series
    Power Consumption 10 W
    Mounting 1 x 1/4"-20 Female
    Operating Temperature 32 to 113°F / 0 to 45°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Dimensions (W x H x D) 7.8 x 5.7 x 2" / 20 x 14.4 x 5 cm
    Weight 1 lb / 480 g
    Package Weight 2.62 lb
    Box Dimensions (LxWxH) 10.0 x 7.5 x 6.15"
