User Manual for MustHD 7" 4K HDMI IPS On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the MustHD 7" 4K HDMI IPS On-Camera
- Product category: On Camera Monitors MustHD
- Brand: MustHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MustHD On Camera Monitors
 |
User manual for the MustHD 7" 4K HDMI IPS On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MustHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MustHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MustHD product will considerably shorten its lifespan!
|

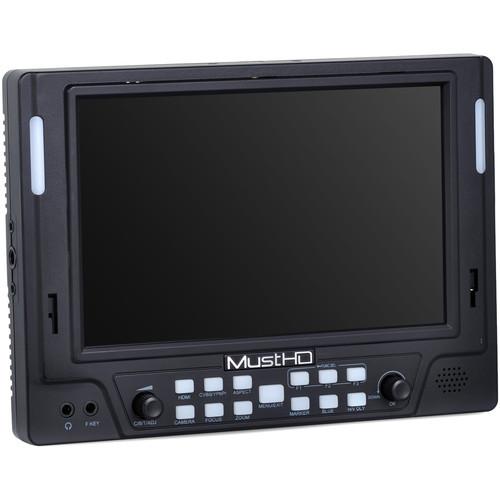

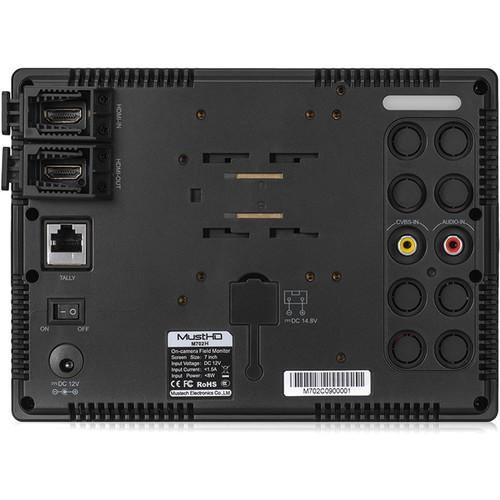

Product description The MustHD 7" 4K HDMI IPS Monitor features a 1920 x 1200 HD display, and supports up to DCI 4K signals on input and output. The monitor offers HDMI, composite, and tally inputs, and an HDMI output. Software functions include Focus Assist, Histogram, and Zebra. A built-in speaker and headphone jack allow for audio monitoring.

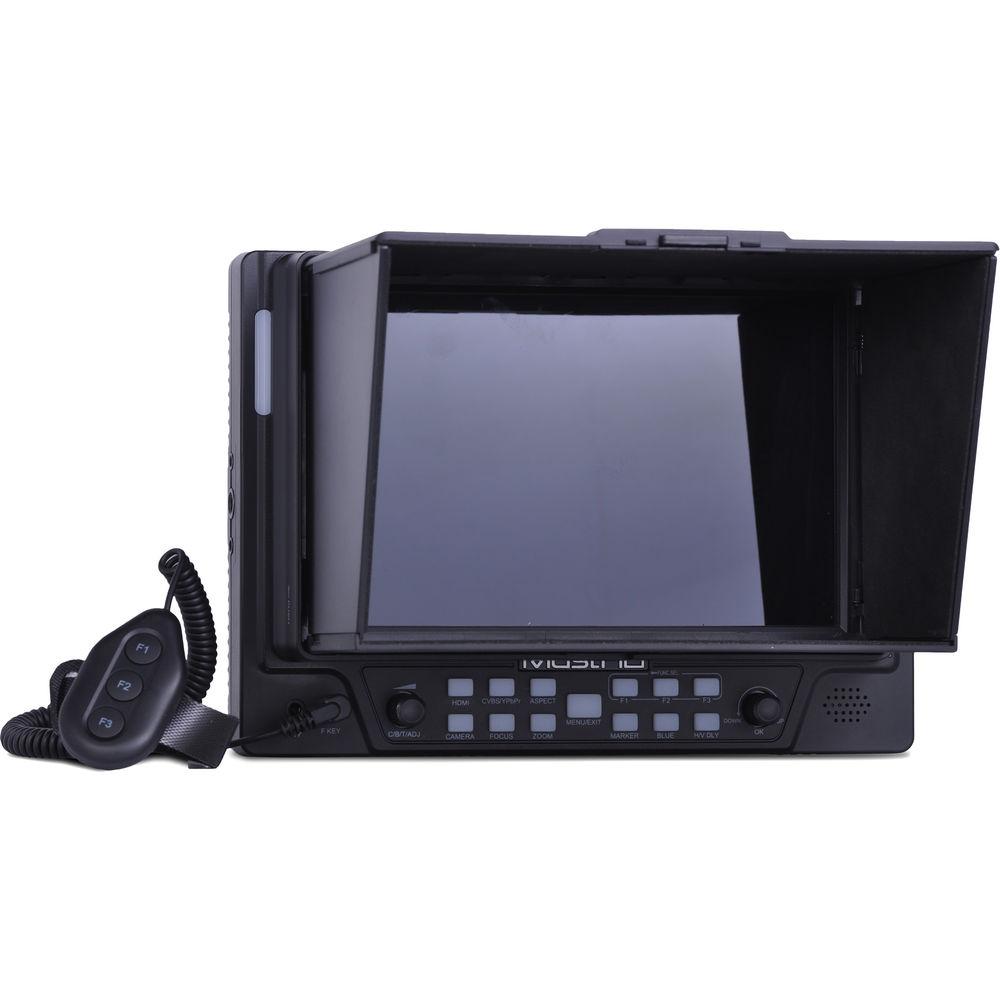

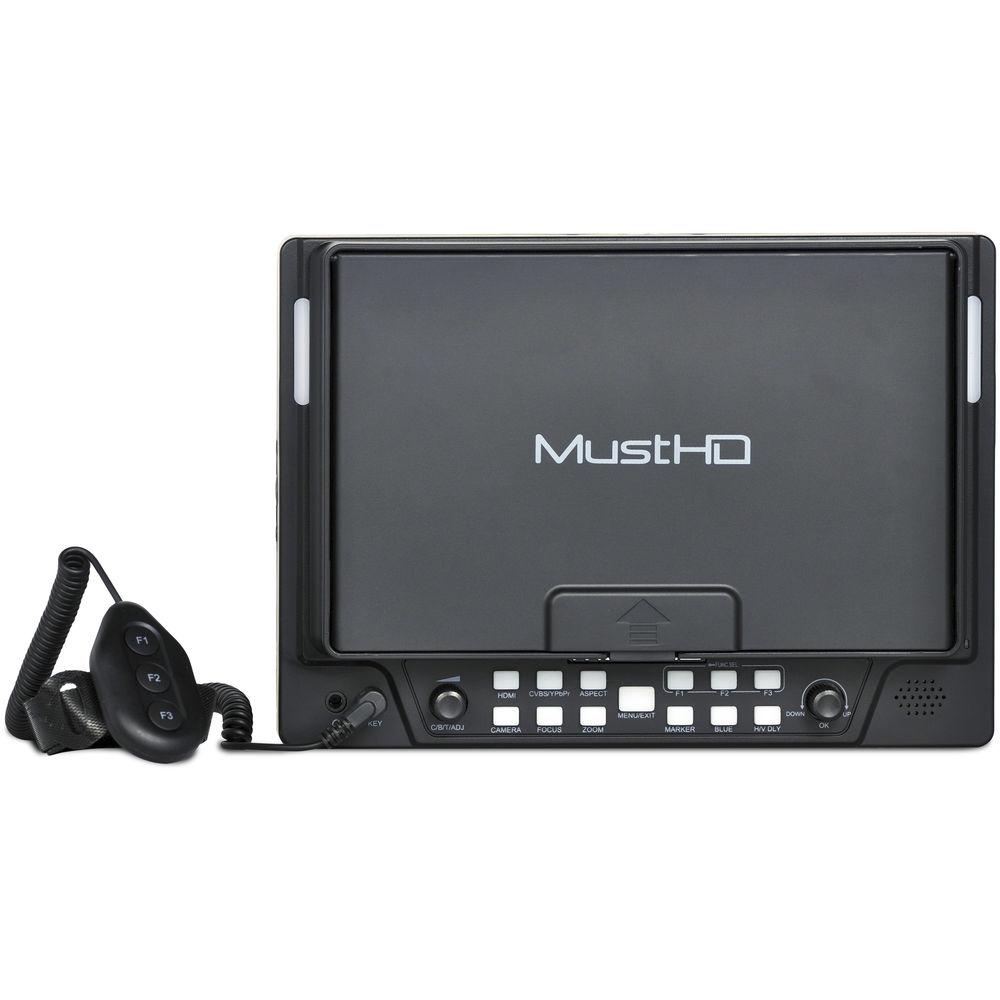

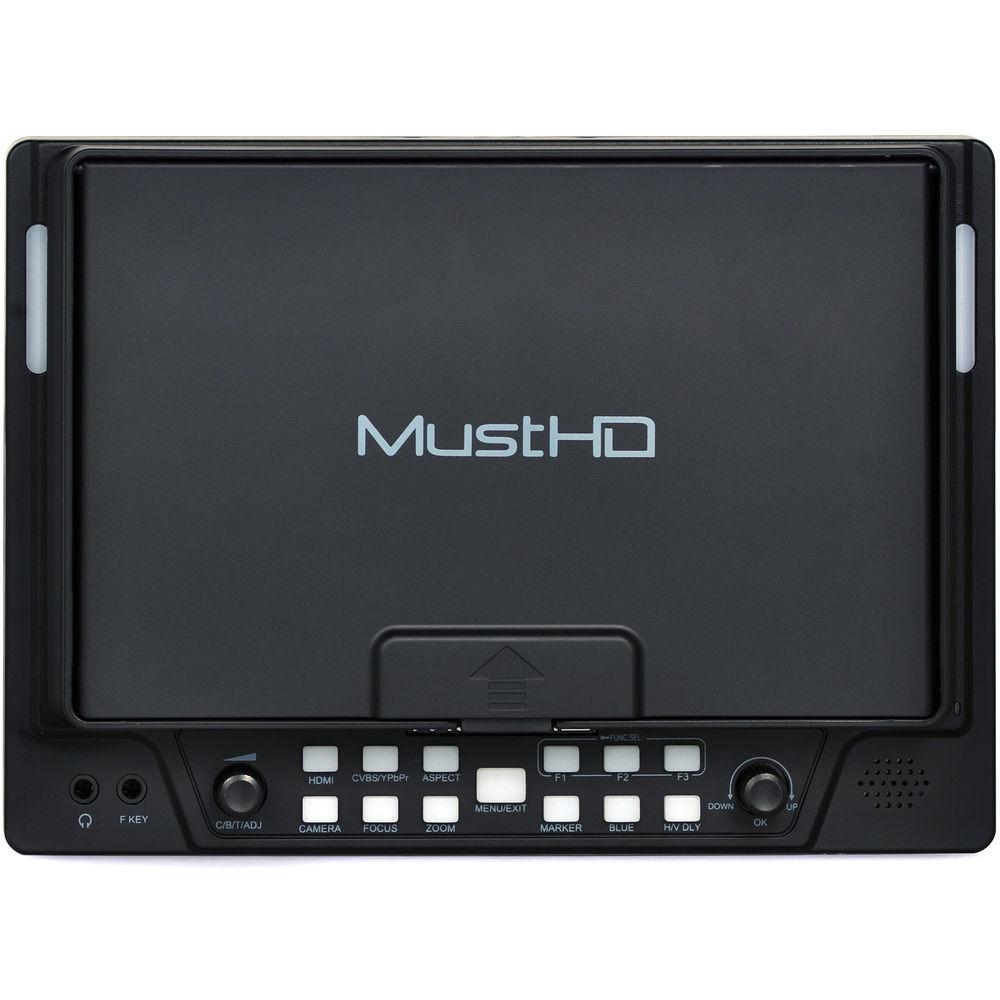

An array of control buttons and knobs, including three assignable function buttons, is available on the front panel. Supplied with the monitor are a sun hood, F970 battery plate, wired remote, and power adapter for continuous operation. A battery is sold separately. Optional LP-E6 and D28S battery plates from MustHD are also supported. - Key Features
-
- 1920 x 1200 HD display
- Supports up to DCI 4K signals on input and output
- HDMI, composite, and tally inputs
- HDMI output
- Three assignable function buttons
- Speaker and a headphone jack
- 450 cd/m² brightness

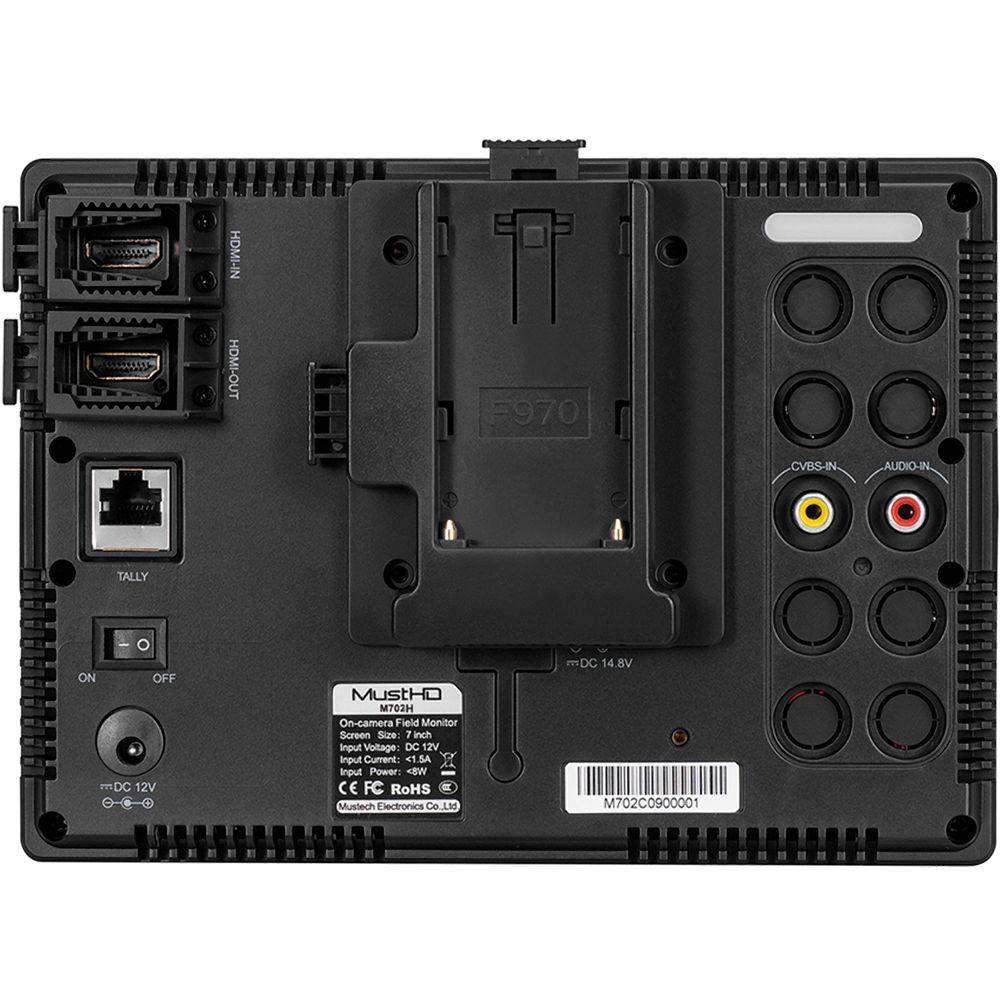

- Includes a sun hood, F970 battery plate, wired remote, and more (batteries are sold separately)

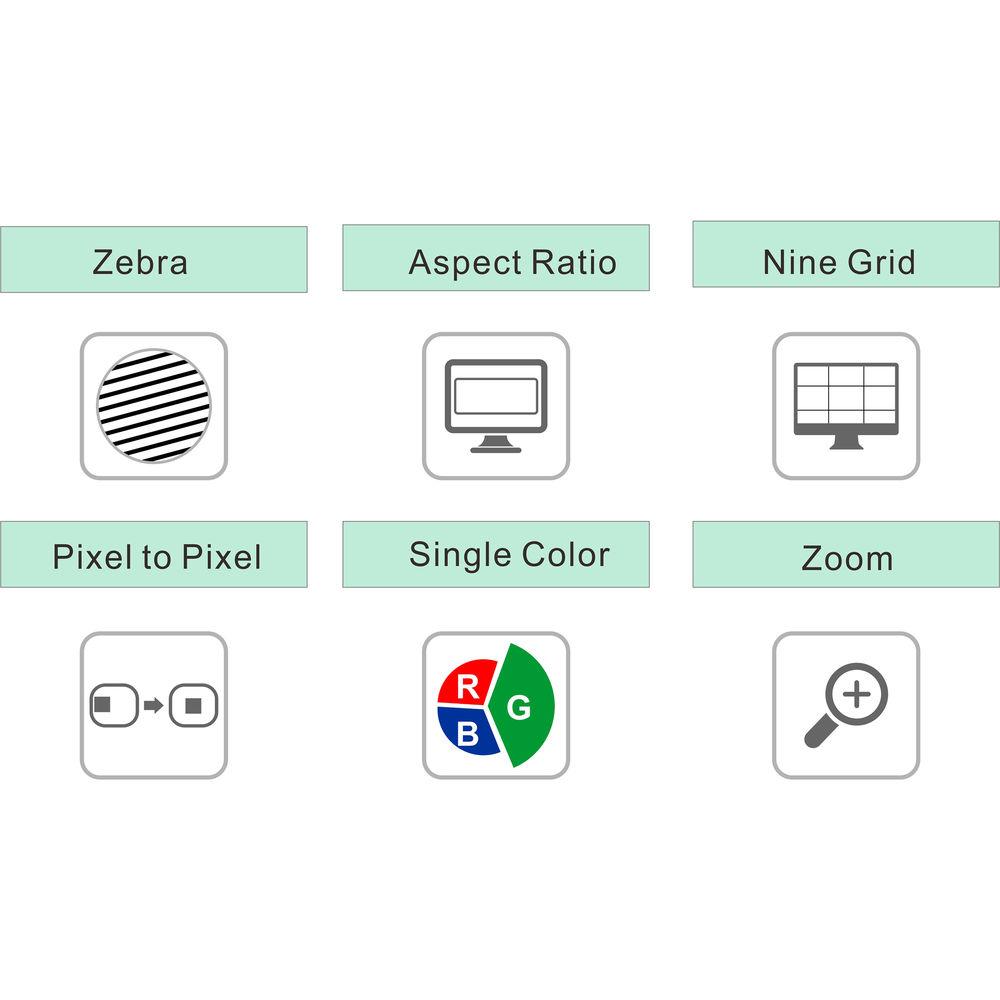

- Software Features
-
- Focus Assist
- Histogram
- False Color & Single Color
- Exposure (Zebra)
- Audio Column
- Safety Marker & Nine Grid
- Aspect Ratio
- Pixel-to-Pixel
- H/V Mirror
- Zoom

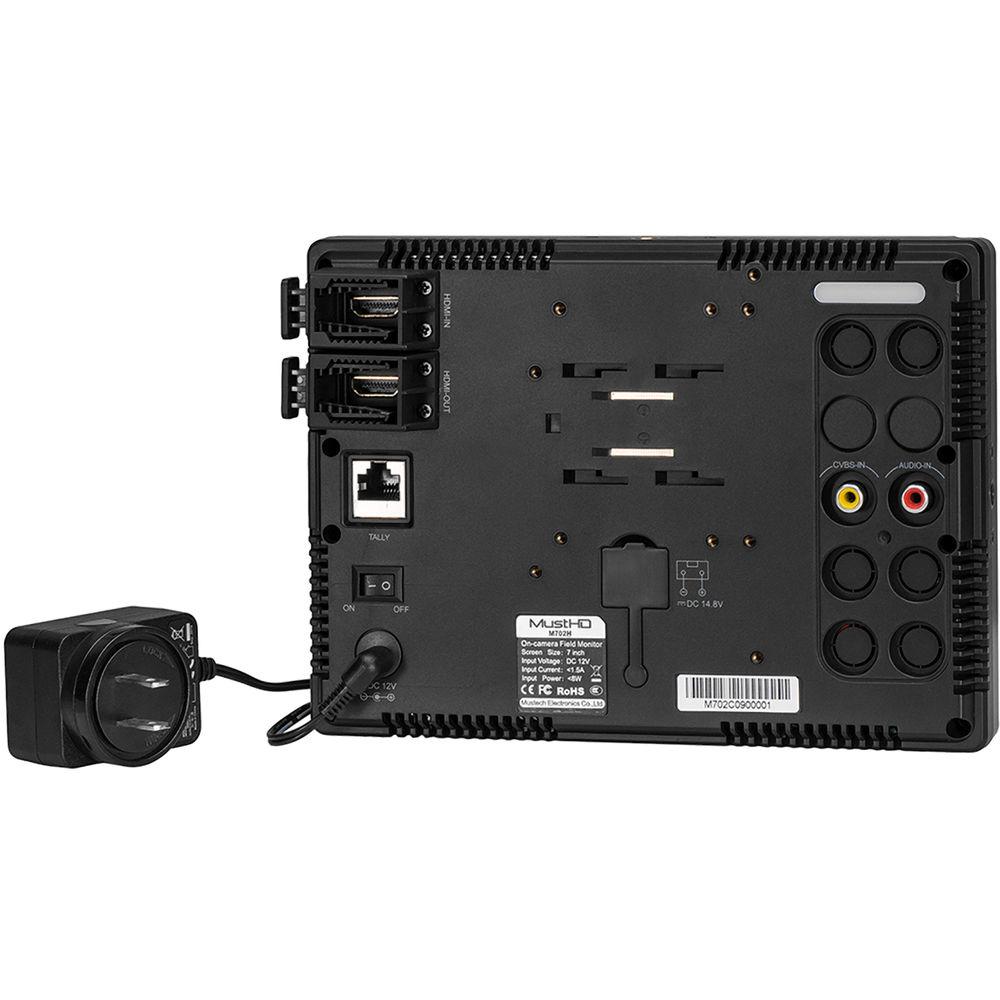

UPC: 712201661514 In the Box MustHD 7" 4K HDMI IPS On-Camera Monitor Sun Hood Power Adapter HDMI Cable External Wired Remote F970 Battery Plate Set of 8 Screws Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MustHD 7" 4K HDMI IPS On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMustHD M702H-4K Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 6 x 3.7" / 151.2 x 94.5 mm | | Screen Resolution | 1920 x 1200 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1100:1 | | Dot Pitch | 0.078 x 0.078 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x HDMI Type A Output
1 x HDMI Type A Input
1 x RCA (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Other I/O | 1 x Tally (RJ45) | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24/25/30/60
UHD 4K: 24/25/30/60
1080p: 60
720p: 60
576p: 50
480p: 60
NTSC
PAL | | | | DC Input Power | 6 to 20 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 10 W | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 7.8 x 5.7 x 2" / 20 x 14.4 x 5 cm | | Weight | 1 lb / 480 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.0 x 7.5 x 6.0" |
