User Manual for MustHD Hyper-Brite 1920 x 1200 7" 3G-SDI HDMI Field Monitor Click to enlarge the picture
Contents of the user manual for the MustHD Hyper-Brite 1920 x 1200 7"
- Product category: On Camera Monitors MustHD
- Brand: MustHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MustHD On Camera Monitors
 |
User manual for the MustHD Hyper-Brite 1920 x 1200 7" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MustHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MustHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MustHD product will considerably shorten its lifespan!
|

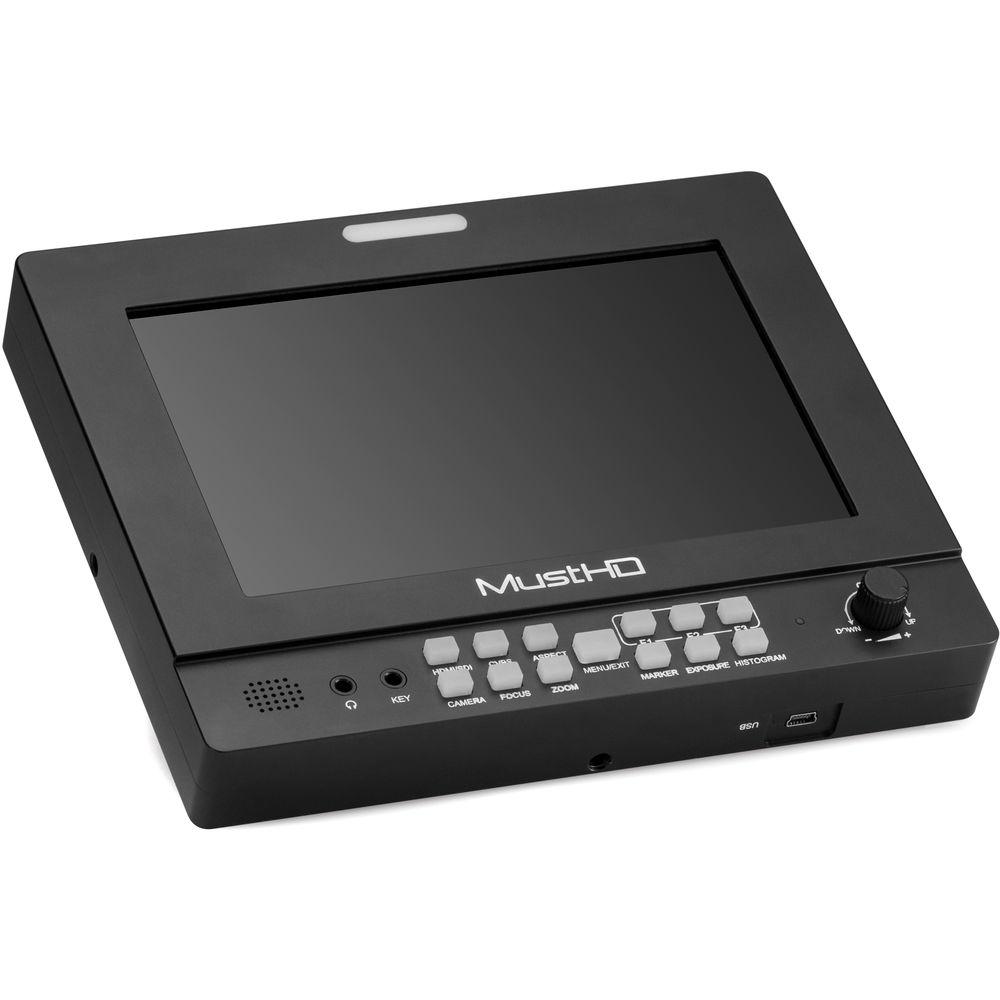

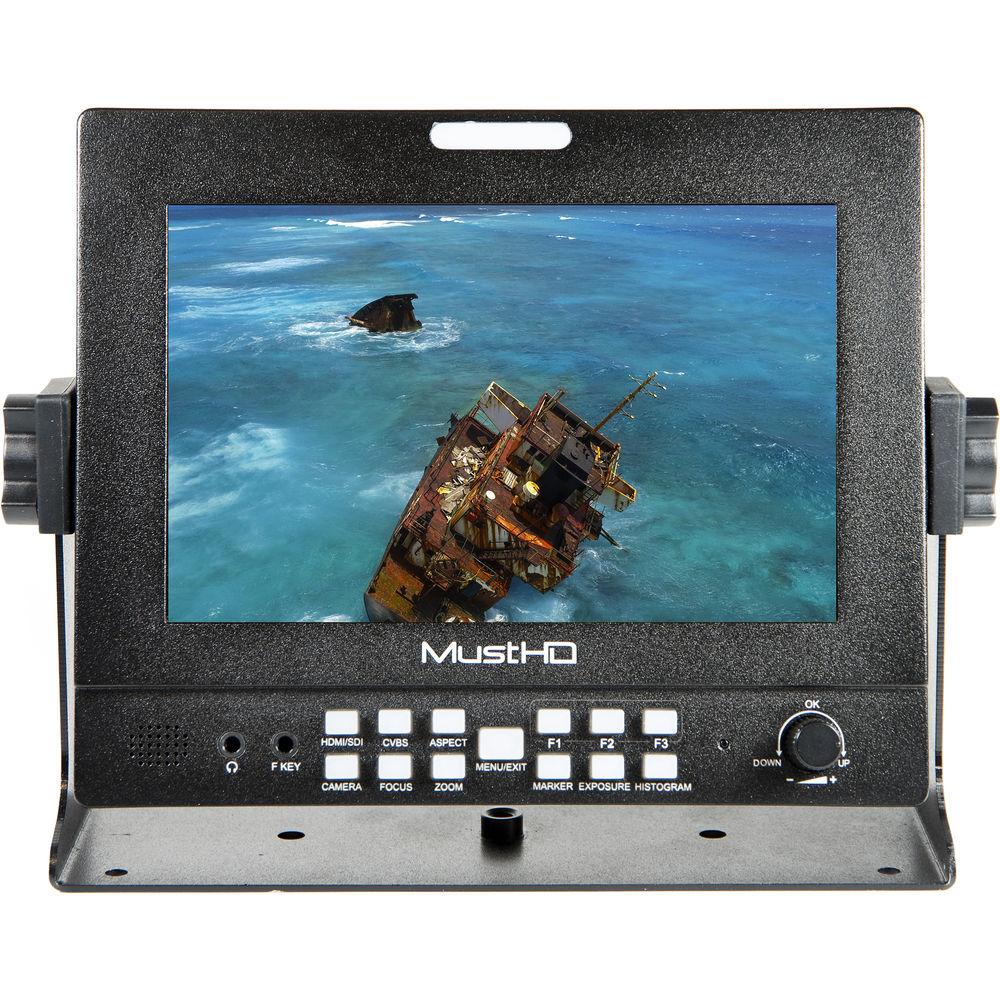

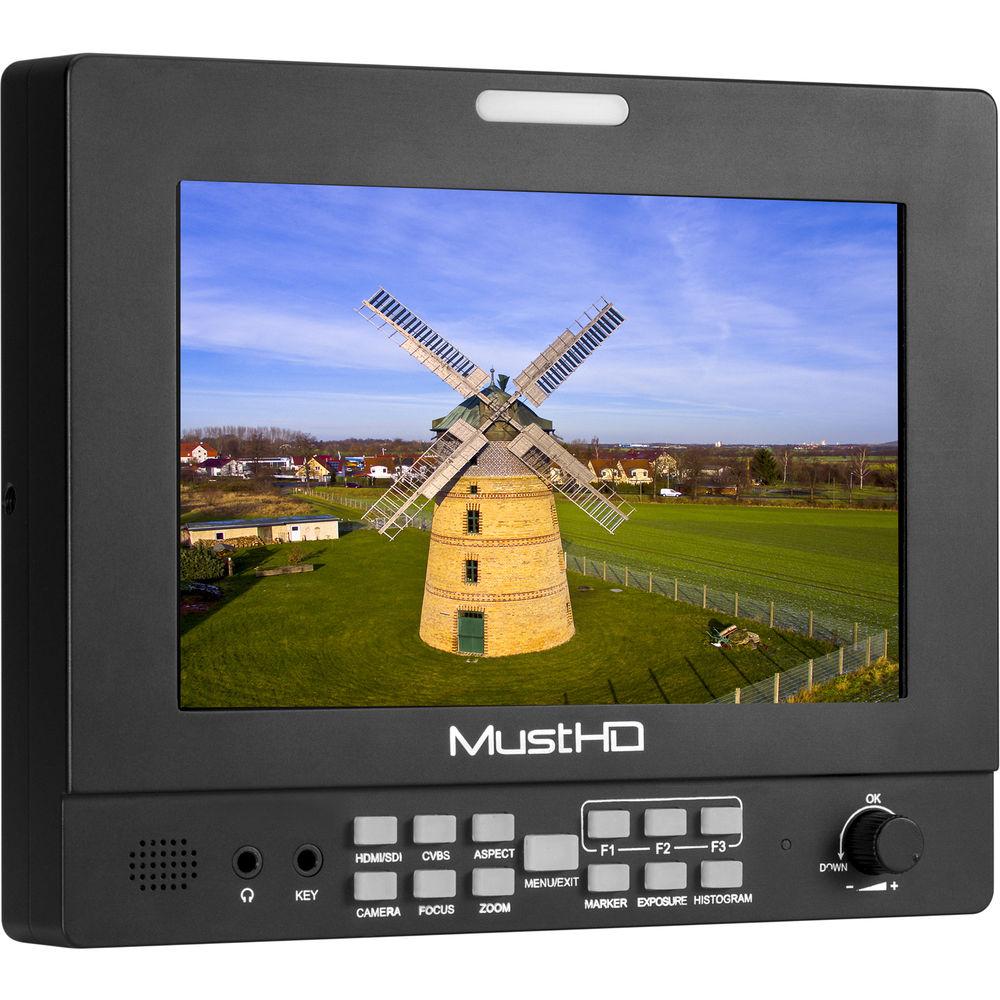

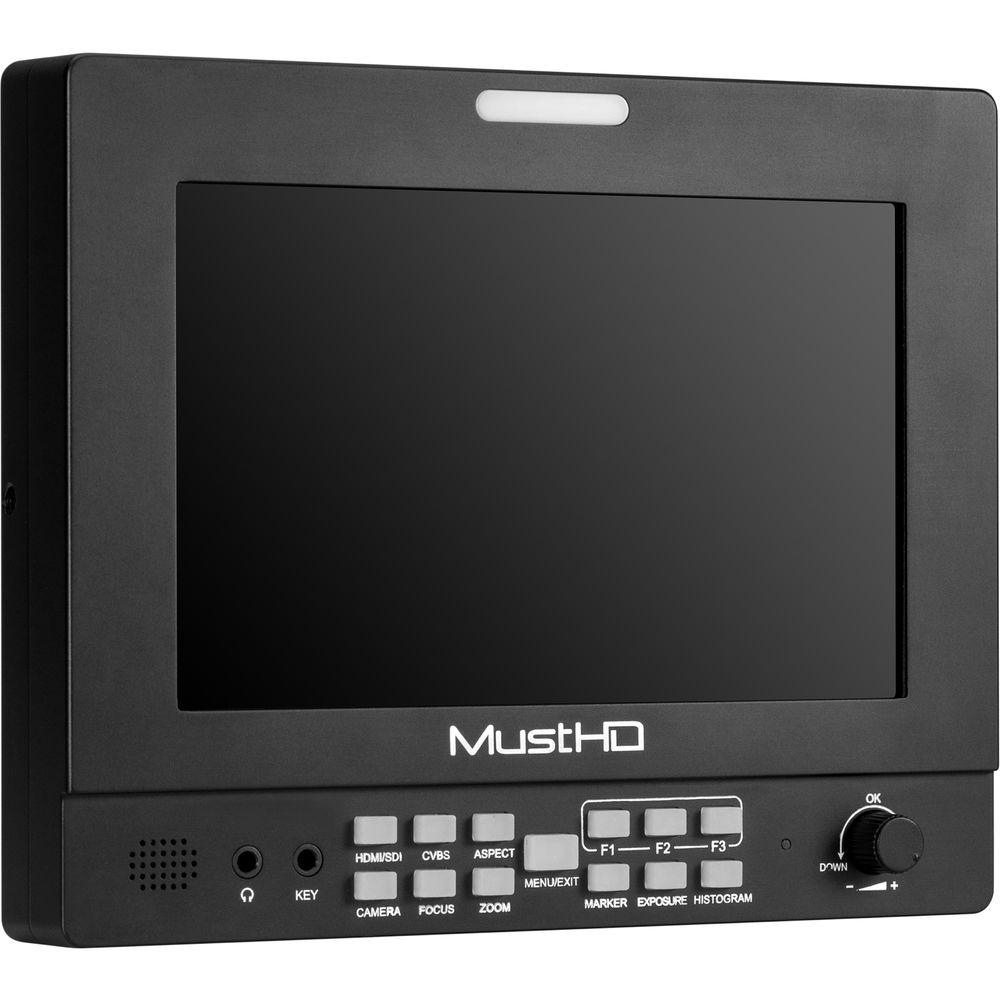

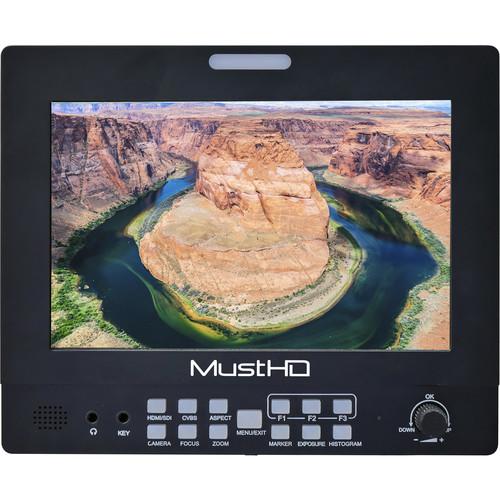

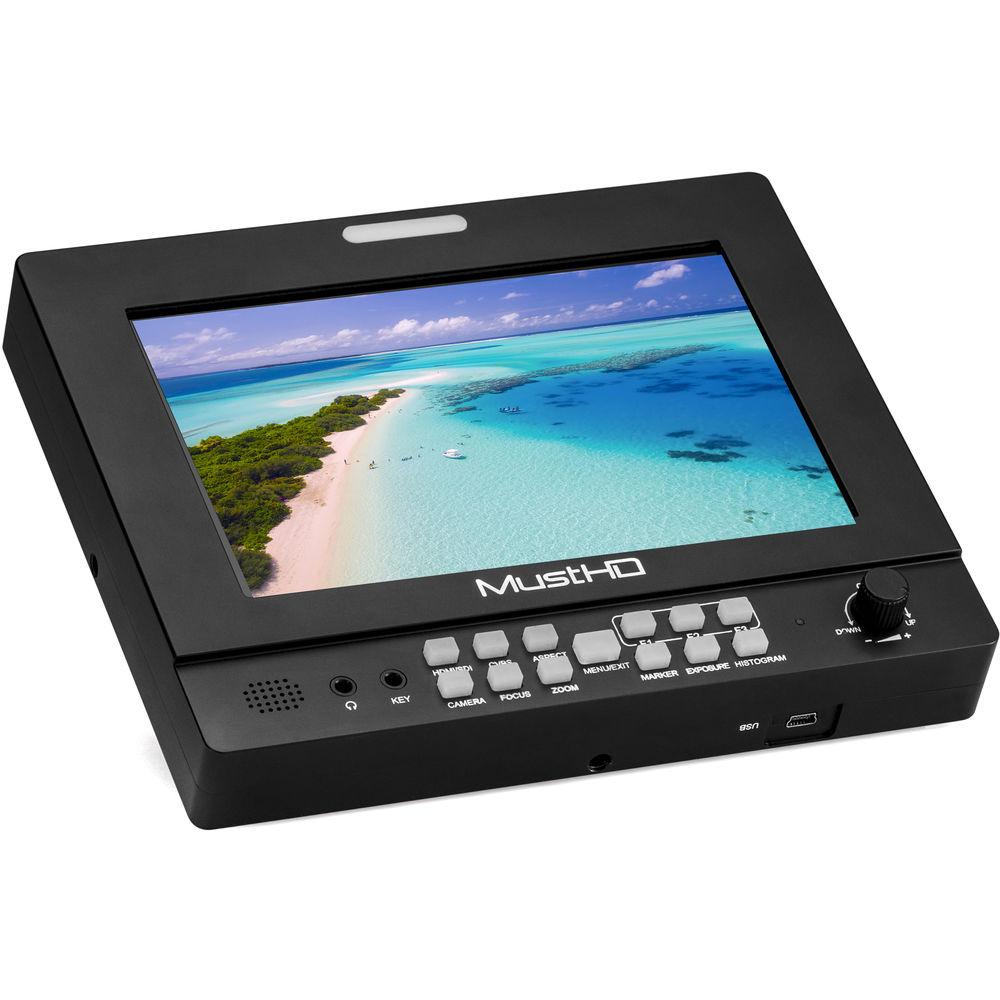

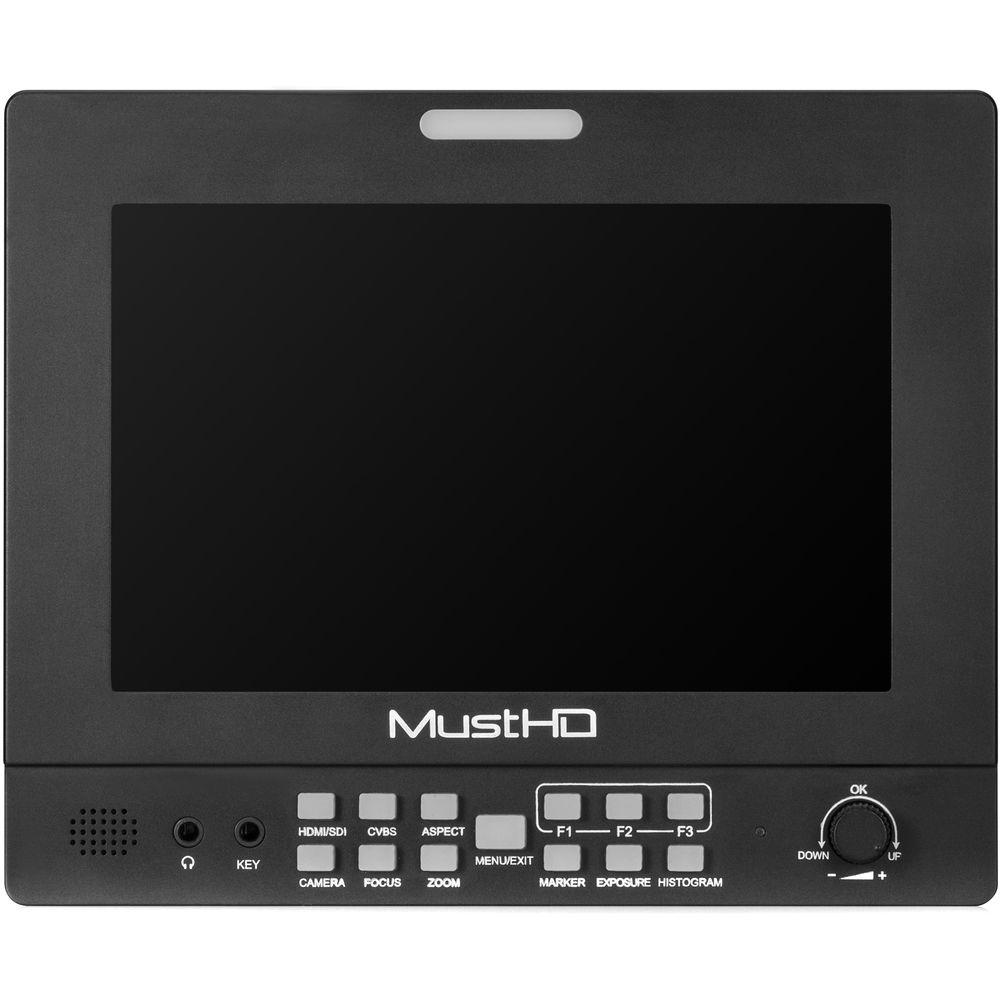

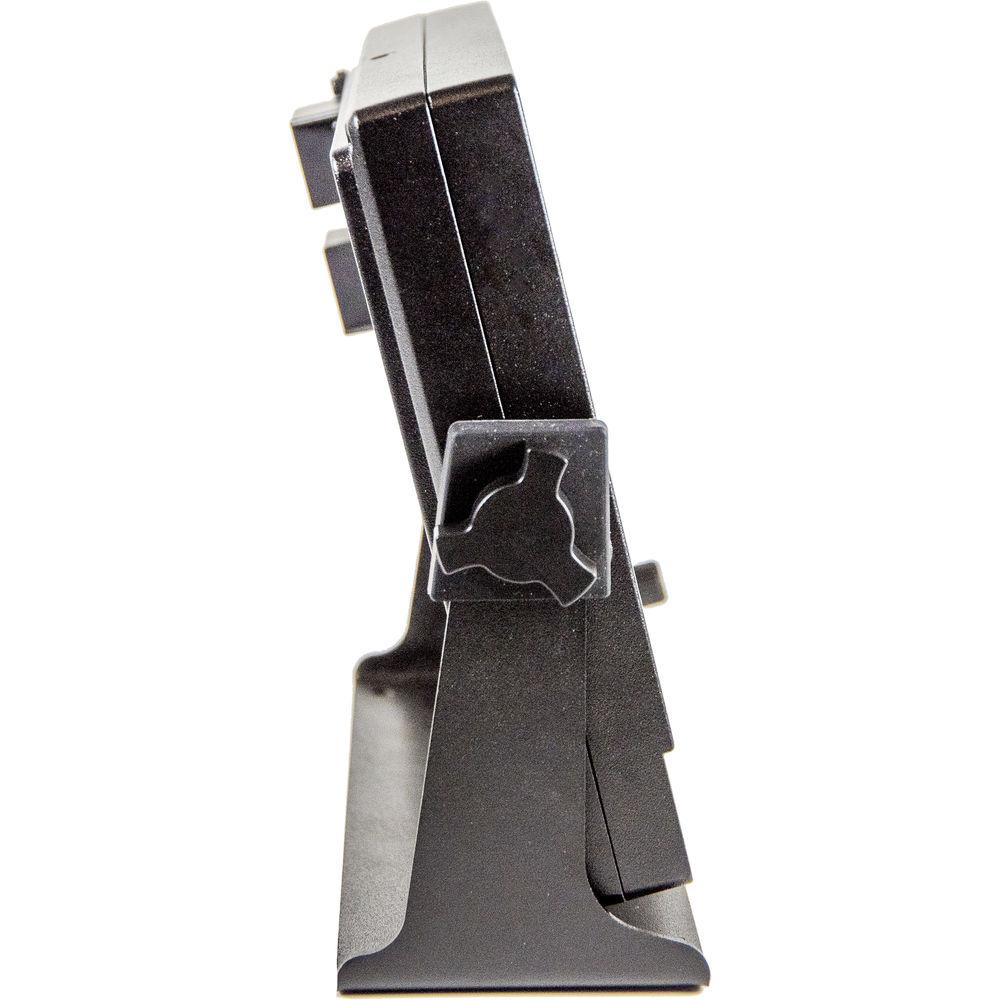

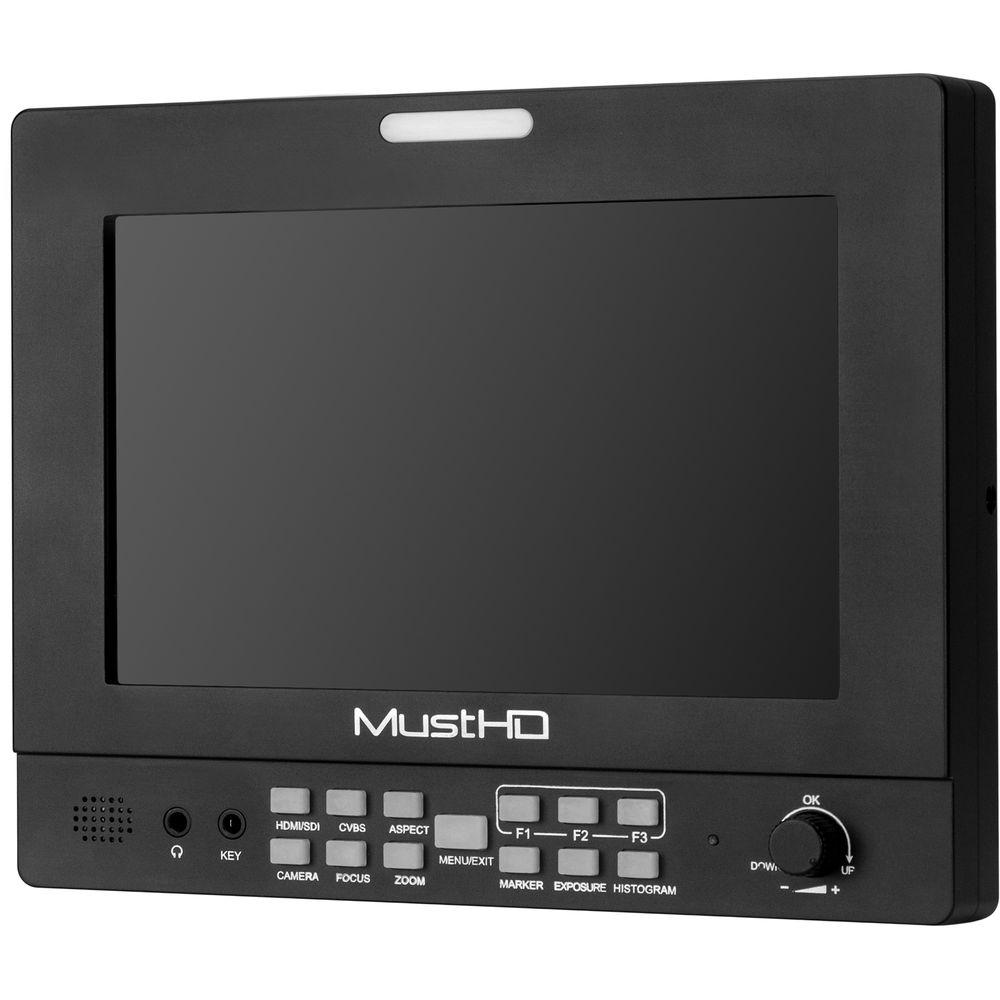

Product description The Hyper-Brite 1920 x 1200 7" 3G-SDI/HDMI Field Monitor from MustHD is designed for the professional cinematographer shooting in the field. The 7" IPS panel features LED backlight capable of 2200 cd/m² output. The brightness of the display enables viewing in sunlight without the need for a sun hood. The SDI and HDMI inputs can handle up to a 4K/60 Hz signal, and the loop-through output enables the use of external recording devices for maximum capture flexibility. It is constructed with aluminum, making it durable and fast-cooling.
The monitor offers a focus assist function for easy focus adjustments, and a false color filter that aids in optimum exposure setting. The display also offers a marker function with marker types that can be set between auto, 16:10, 16:9, 15:9, 1.85:1, 2.35:1, and 4:3. When the marker and the marker type are both activated, a border line of the safety area will be displayed inside the marker.
The included programmable, wired three-button remote allows you to set frequently used functions and access them with the push of a single button. A loop fastening strap allows the remote to be attached to a tripod or frame. - 7" IPS panel with 1920 x 1200 native resolution and 2200 cd/m² brightness
- 3G-SDI, HDMI, and composite inputs
- Accepts up to 4K resolution via 3G-SDI/HDMI input/loop-through output
- Focus assist function for optimum focus adjustment
- Peaking has three color options: red, green, and blue
- False color for under/over luminance warning
- Histogram displays the distribution of brightness in an image as a graph of luminance
- Exposure (zebra) superimposes stripes over the on-screen image, indicating if an area is overexposed
- Audio level meters provide numerical indicators and headroom levels, generating accurate audio level displays to prevent errors during monitoring
- Single color: An assistant function to adjust camera color settings; uses red, green, blue, or mono pixels
- User-selectable aspect ratio (auto, 16:10, 16:9, 15:9, 1.85:1, 2.35:1, and 4:3)
- H/V mirror allows for horizontal/vertical image flipping
- Three-button programmable wired remote included
- Four 1/4"-20 thread mounting holes
- Speaker and headphone output
In the Box MustHD Hyper-Brite 1920 x 1200 7" 3G-SDI/HDMI Field Monitor Wired Remote HDMI Cable DC Power Adapter (US/EU/UK/AU) Mounting Hardware Limited 1-Year Warranty Brochure PDF 557.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MustHD Hyper-Brite 1920 x 1200 7" 3G-SDI HDMI Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

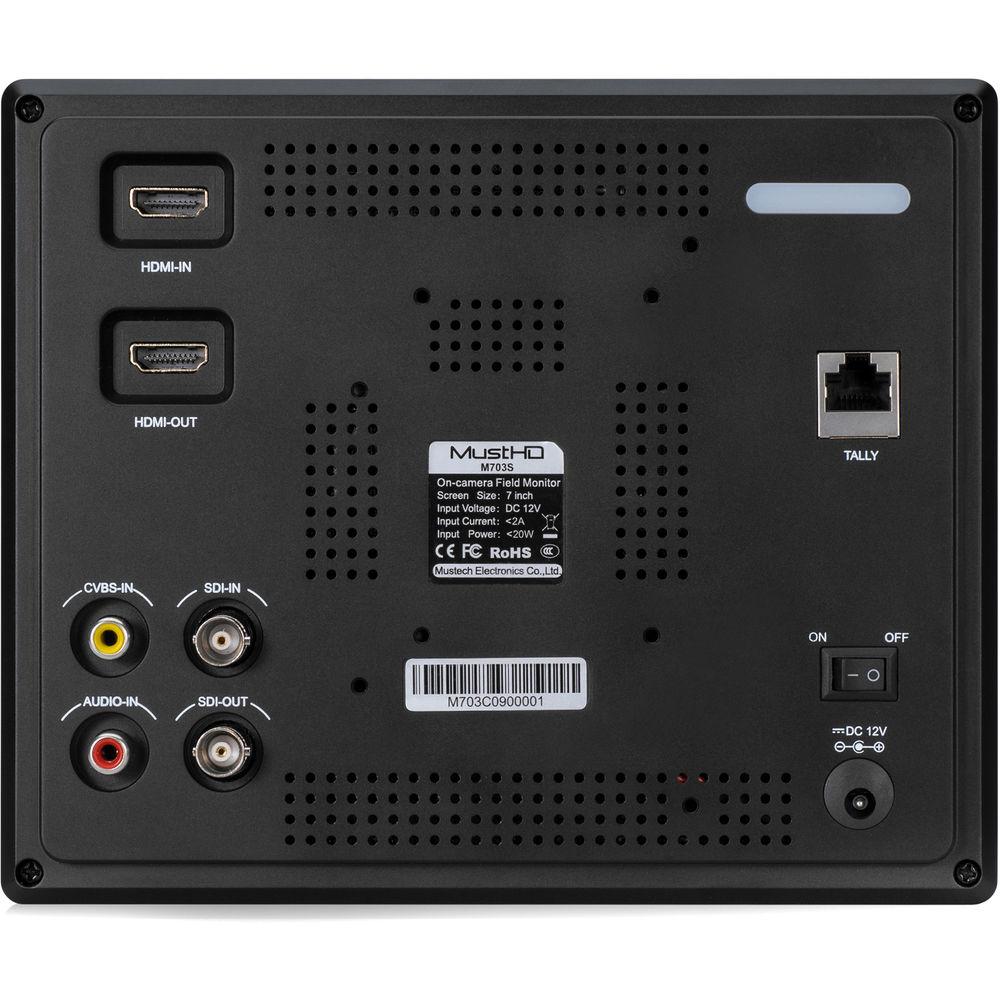

Technical parametersMustHD M703S Specs | LCD Size | 7" (17.8 cm) | | Video System | Not specified by the manufacturer | | Native Resolution | 1920 x 1200 | | Pixel Pitch (H x V) | 0.078 x 0.078 mm | | Viewing Angle (H/V) | 178° / 178° | | Brightness | 2200 cd/m² | | Contrast Ratio | 1200:1 | | Display Area | 6.0 x 3.7" (151.2 x 94.5 mm) | | Input and Output Connectors | Video:
1 x 3G-SDI input
1 x 3G-SDI output
1 x HDMI input
1 x HDMI output
1 x Composite input
1 x LAN (RJ45) for tally function
Audio:
1 x Analog stereo (phone jack)
1 x Internal speaker (mixed mono) | | Supported Resolutions | 3G-SDI & HDMI Input:
4K/60 Hz
1080p/i
720p
576p/i
480p/i
3G-SDI & HDMI Output:
4K/60 Hz
1080p/i
720p
576p/i
480p/i | | Picture Controls | Focus Assist
Peaking
False color
Histogram
Exposure (zebra)
Pixel-to-pixel
Single color
H/V mirror | | Remote Control | Yes, 3-button programmable wired remote | | Power Requirements | 12 to 20 VDC | | Power Consumption | <20 W | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | 14 to 140°F (-20 to 60°C) | | Dimensions | 7.6 x 6.3 x 1.4" (194 x 160 x 35.5 mm) | | Weight | 29.6 oz (840 g) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 9.9 x 7.5 x 6.1" |
