Product description

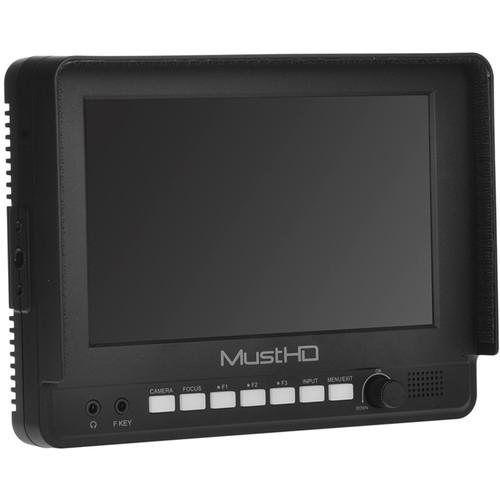

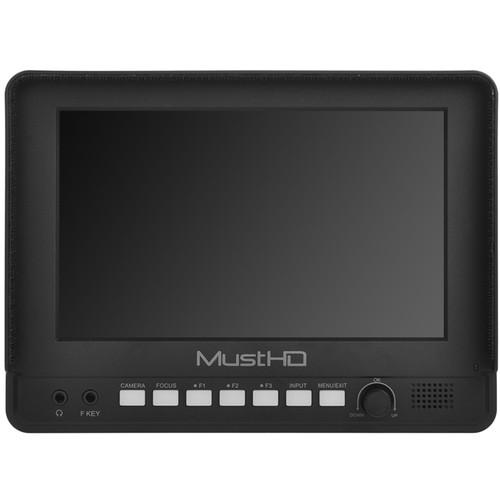

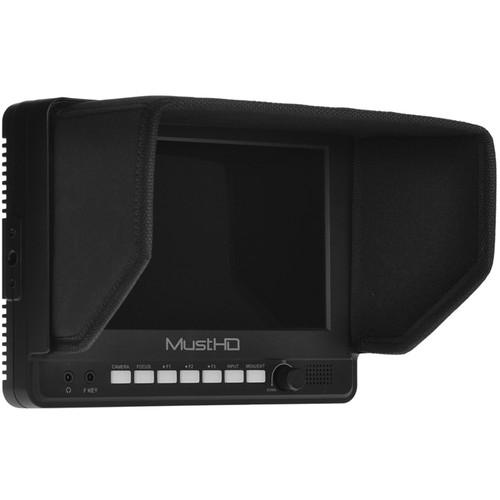

The M700H 7" HDMI On-Camera LCD Monitor from MustHD is a compact and lightweight field monitor designed for entry-level use. The included sunhood, which is flexible and detachable, helps shade the LCD monitor when used in bright locations. With features like color peaking, false color, exposure, marker, and more, this LCD monitor supports a resolution up to 1920 x 1080.The Focus Assistance function helps the user to easily find the right focus by adding a sharp outline on the shape or boundaries of the object until the red indicator outlining the desired area indicates optimal focus.
    Focus Assistance
    • Helps user to easily find out the exact area in the picture with the right focus by adding sharp outline on the shape or boundaries of the object in the picture
    • The user can adjust the focus control unit until the red indicator outlining the desired area indicates optimal focus
    Marker
    • User can select a display marker mode from 16:10, 16:9, 15:9, 1.85:1, and 4:3 and can also have self-defined marker ratio
    Zoom
    • Supports 10 to 90% image zoom
    • User can zoom the selected area of an image

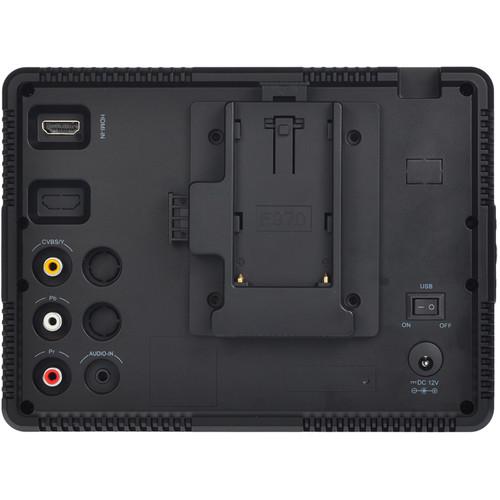

    Battery Plates
    • The monitor is powered by the included AC adapter or the Sony F970 battery

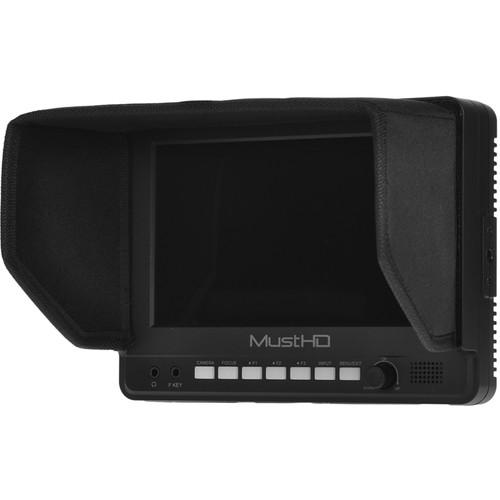

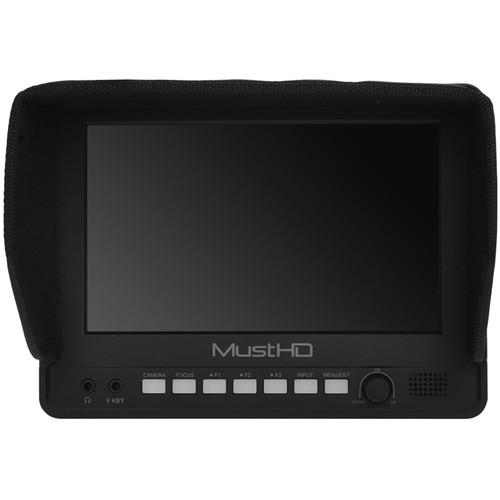

    Sunhood

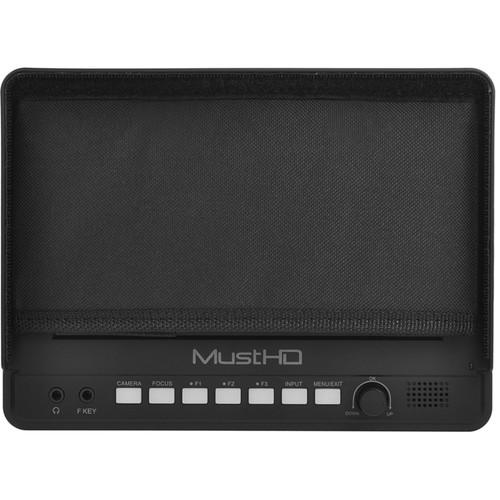

    • This sunhood reduces the reflections during outdoor shooting and protects the LCD screen when folded
    External Self-Define Button Plate
    • The external self-defined button customizes your favorite and frequently-used functions like F1, F2, and F3 and controls them by clicking on On/Off
    • User can easily get the features like color peaking, false color, zoom, marker and so on by the F Key button or external self-defined button plate
    General
    • 7" LCD 1024 x 600 monitor, supports up to 1920 x 1080
    • HDMI input
    • Histogram
    • False color
    • Blue Only
    • H/V Delay
    • Exposure
    • Hatch-cross
    • Aspect ratio
    • Over-scan
    • Pixel to pixel
    • Black and White
UPC: 712201661392 In the Box MustHD M700H 7" 1024 x 600 HDMI On-Camera Monitor
  • Detachable Sunhood
  • AC Adapter
  • HDMI Cable (Mini HDMI to HDMI)

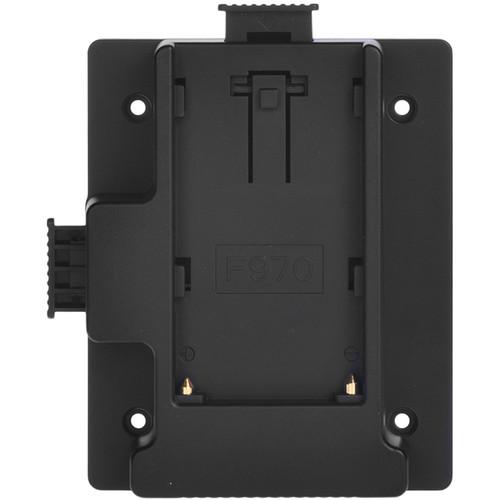

  • Sony F970 Battery Plate for On-Camera Field Monitor

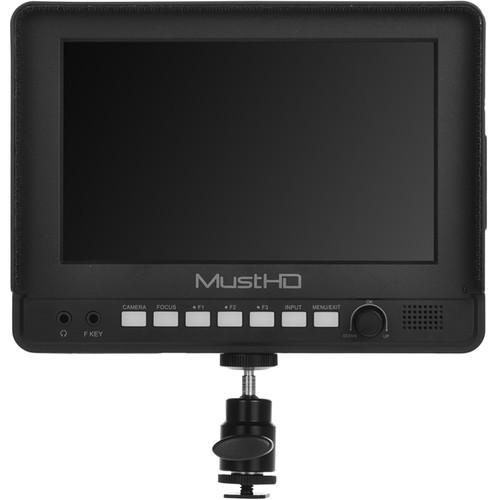

  • Shoe Mount Adapter
  • Function Key Cable Control
  • Screws
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the MustHD M700H 7" 1024 x 600 HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MustHD M700H Specs

    Size 7.0" (18 cm)
    Resolution 1024 x 600, support up to 1920 x 1080
    Pixel Pitch (H x V) 0.15 x 0.15 mm
    Color Depth 16.7 million (8-bit)
    Viewing Angle H: 140°
    V: 110°
    Luminance 250 cd/m2 (Center)
    Contrast Ratio 500:1
    Display Area (H × V) 6.0 x 3.5" (15 x 9.0 cm)

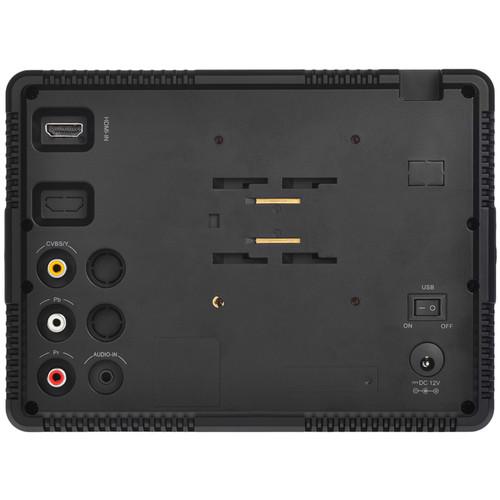

    Input Analog Audio: 2 x RCA
    HDMI: 1 (480i/480p/576i/576p/720p/1080i/1080p @ 60 fps)
    Composite Video: 1 x RCA
    Audio Out Analog stereo (phone jack)
    Internal speaker (mixed mono)
    Power 6 to 20 VDC
    Power Consumption < 8 W (typical)
    Operating Temperature 32 to 113°F (0° to 45°C)
    Storage Temperature 14 to 140°F (-20 to 60°C)
    Dimensions 7.79 x 5.82 x 1.30" (19.8 x 14.8 x 3.40 cm)
    Weight 17.0 oz (482 g)
    Package Weight 2.345 lb
    Box Dimensions (LxWxH) 10.05 x 7.55 x 6.05"
