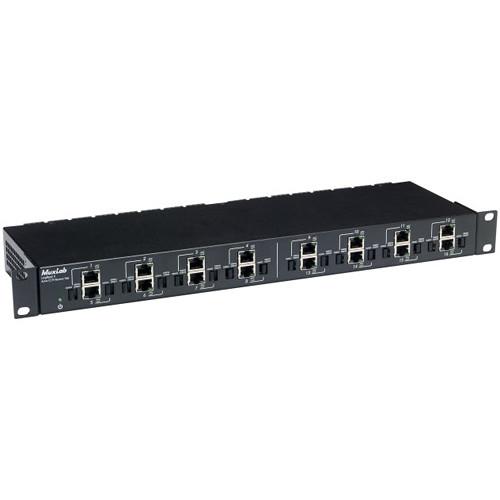

User Manual for MuxLab 16-Channel LongReach II Active CCTV Receiver Hub Click to enlarge the picture
Contents of the user manual for the MuxLab 16-Channel LongReach II Active CCTV
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 16-Channel LongReach II Active CCTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The 16-Channel LongReach II Active CCTV Receiver Hub from MuxLab provides extended distance between the CCTV camera and the DVR via Cat 5e/6 cable. The LongReach II Hub also allows video, remote power, and 2-wire PTZ control to be combined over Cat 5e/6 cable and features ground loop isolation (GLI) for optimum video transmission. It is suitable for use at campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, self-storage, hospitals, and car dealerships. - 16-channel analog CCTV hub
- Up to 5000' via Cat 5e/6 cable
- Up to 7000' via Cat 5e/6 with 500100/101 at camera
- Video, power, and PTZ over one Cat 5e/6 cable
- Ground Loop Isolation (GLI)
In the Box MuxLab 16-Channel LongReach II Active CCTV Receiver Hub Rackmount Bracket 5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 16-Channel LongReach II Active CCTV Receiver Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500127 Specs | | | Bandwidth | 20 Hz to 8 MHz | | Input | 1.5 Vpp maximum, 100 ohms, balanced (RJ45) | | Output | 1.1 Vpp, ± 1 dB, 75 ohms, unbalanced (BNC) | | Insertion Loss | -14 dB minimum for luma, -60 dB minimum for chroma Determined by Automatic Gain Control | | Return Loss | >15 dB over the frequency range | | Common Mode Rejection | >40 dB @ 3.85 MHz | | Ground Loop Isolation | Up to +/-50 VDC | | Auto Polarity Correction | Automatically adjusts for any polarity | | Maximum Distance via Cat5e/6 | NTSC: 5000' (1524 m) with passive CCTV balun at camera
NTSC: 7000' (2133.6 m) with 500100/101 at camera Coax jumper cables must be less than 30' (9 m) | | LED Diagnostics | Power, video sync | | AGC (Automatic Gain Control) | Automatically adjusts for gain, sharpness, and luminosity
Stabilization Time: Under 1 second | | | | Wiring | Remote low voltage power supported via 2 or 3 twisted pairs A class II power supply is recommended | | Maximum Distance | @ 24 VAC via three twisted pairs
2 VA: 1500' (457 m)
4 VA: 745' (227 m)
10 VA: 300' (91 m)
20 VA: 150' (46 m) Longer distances may be achieved @ 28 VAC
Based on 10% voltage drop at camera | | Maximum Current | 2.5 A rms or DC | | | | Wiring | Remote 2-wire PTZ control supported via 1 twisted pair | | Maximum Distance | Up to 4000' (1219.2 m) depending on the PTZ camera vendor | | Maximum Input Voltage | 48 V (AC RMS/DC) | | Maximum Current Rating | 2 A (AC RMS/DC). No fuse | | | | Signal | CCTV composite baseband video; NTSC, PAL, SECAM | | Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | | Transmission | Transparent to the user | | | | UTP | 24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum Capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (304.8 m) at 1 MHz | | Cable - Coax | Impedance: 75 ohms at 1 MHz (RG59/U) | | Switch | Select between Power-Thru (500024/500029) and Pass-Thru (500022) mode | | Connectors | 16 x BNC-F
Remote Power: 16 x 2-pole screw terminal block
PTZ: 16 x 2-pole screw terminal block
Cat5e/6 Link: 16 x RJ45S Power connector
Ground screw terminal | | Compatible Baluns | 500000, 500000R, 500009, 500022, 500024, 500100/10 | | Power Supply | 5 VDC / 2.6 A maximum
Floating: +/- 20%
Interchangeable blades
1.53 A maximum | | Protection | ± 2.5 V on the video line
± 48 V on the power and control lines | | Power Surge Protection | Above 34 VAC RMS or +/- 48 VDC | | Fuse Protection | Auto-resettable fuse on 5 VDC input and Power A (+) upon power cycling | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Enclosure | Aluminum | | Regulatory | FCC and CE | | Dimensions | 16.9 x 5.0 x 1.6" (42.9 x 12.9 x 4.2 cm) | | Weight | 4.6 lb (2.1 kg) |
