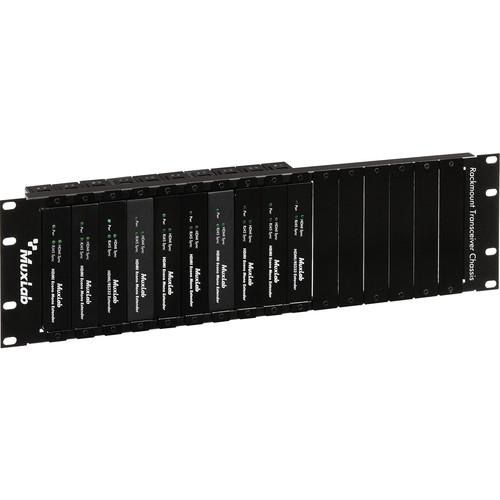

Product description The black 16-Port Rackmount Transceiver Chassis from MuxLab is designed as a head-end cable management solution, allowing any combination of up to 16 MuxLab transceivers to be installed in a standard 19" telecom relay rack. The transceiver may be installed in either front or rear- facing orientation depending on the application. Head-end A/V equipment such as DVD players, video servers, and cable boxes may be installed in a local wiring closet and connected to the Cat5e/6 structured cabling system via a wide array of MuxLab transceiver solutions. The rackmount chassis includes 32 mounting brackets and rack-mounting hardware for mounting 16 transceivers onto the rack. Key Features - Supports up to 16 transceivers
- Space-efficient 3 RU high, fitting a 19" rack
- Supports front or rear-facing orientation
- Includes mounting bracket kits for 16 transceivers and rack-mounting hardware
- Provides for neat installation and cabling
- Blank filler plates can be purchased separately
Applications - Commercial and residential A/V systems
- Classroom projector systems
UPC: 627699009208 In the Box MuxLab 16-Port Rackmount Transceiver Chassis (Black) 8 x Mounting Bracket Kit for 16-Port Rackmount Transceiver Chassis (Set of 4) 4 x 10-32 Rack Screw & Washer Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 16-Port Rackmount Transceiver Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500920 Specs | Environment | Custom audio-video systems in a structured cabling environment | | Application | Head-end installations, A/V rooms, telecom rooms | | Capacity | 16 Positions | | Compatible Products | MuxLab transceivers measuring 4.4 x 2.9 x 1.0" (11.1 x 7.5 x 2.5 cm) | | Orientation | Baluns may be installed front or rear-facing | | Snap-in Mechanism | Mounting brackets to hold the transceivers into position via front screws | | Rack Height | 3 RU (5.25"), 19" rack | | Enclosure | Black painted aluminum | | Mounting Holes | 4 x Rack-mounting 10-32 holes | | Mounting Hardware | 4 x Rack-mounting 10-32 screws and washers
32 x Transceiver brackets | | Standard | EIA/TIA | | Dimensions (W x H x D) | 19.0 x 5.3 x 3.8" (48.3 x 13.4 x 7.2 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 21.575 x 8.819 x 7.087" |
