User Manual for MuxLab 1U Rack-Mountable Transceiver Chassis Click to enlarge the picture
Contents of the user manual for the MuxLab 1U Rack-Mountable Transceiver Chassis
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 1U Rack-Mountable Transceiver Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

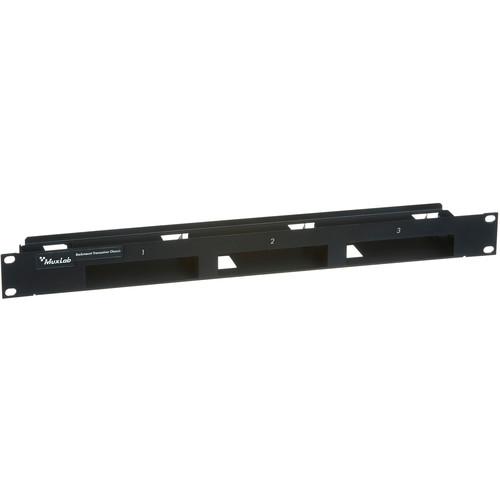

Product description The black 1U Rack-Mountable Transceiver Chassis from Muxlab is designed for small commercial and residential applications. This transceiver chassis allows up to 3 MuxLab desktop transceivers to be mounted in a 1U 19” relay rack for custom audio-video applications where the source equipment is installed in a central wiring room. General - Space-efficient 1U height structure
- Latching mechanism for secure installation
- Supports up to 3 transceivers
- Snap-in design for ease of installation
- Includes four 10-32 screws and washers for rack mounting
- Slot number silkscreen on the front and rear
Applications - Head-end audio-video systems
- Home and commercial AV systems
UPC: 627699009055 In the Box MuxLab 1U Rack-Mountable Transceiver Chassis (Black) 4 x 10-32 Screw & Washer for Rack Mounting Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 1U Rack-Mountable Transceiver Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500905 Specs | Environment | Custom audio-video systems in a structured cabling environment | | Application | Head-end installations, audio-video rooms, telecom rooms | | Capacity | 3 positions | | Compatible Products | MuxLab transceivers measuring 4.3 x 2.9 x 1.0" (11.1 x 7.5 x 2.5 cm) | | Snap-in Mechanism | Baluns lock into position via spring latch mechanism | | Rack Height | 1U: 1.75", 19" rack | | Enclosure | Black painted aluminum | | Mounting Holes | 4 x Rack-mounting holes | | Mounting Hardware | 4 x rack-mounting 10-32 screws and washers (included) | | Slot Id | Silkscreen on the front and rear. Slots numbered "1" to "3" | | Standard | EIA/TIA | | Dimensions (W x H x D) | 19 x 1.7 x 3.8" (48.3 x 4.5 x 7.2 cm) | | Weight | 1.9 lb (0.9 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 20.9 x 5.0 x 4.4" |
