User Manual for MuxLab 1x4 4K HDMI Splitter Click to enlarge the picture
Contents of the user manual for the MuxLab 1x4 4K HDMI Splitter
- Product category: Distribution Amplifiers (DA's) MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Distribution Amplifiers (DA's)
 |
User manual for the MuxLab 1x4 4K HDMI Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

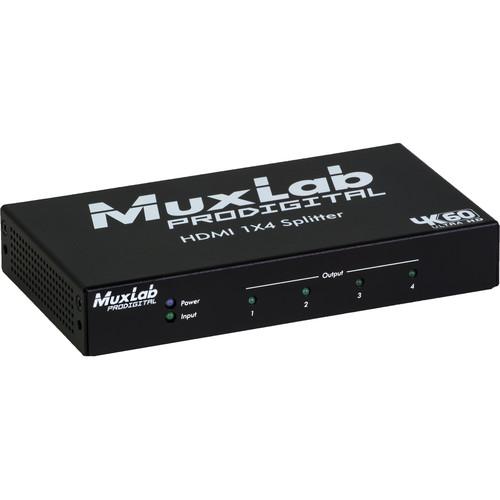

Product description With the MuxLab 1x4 4K HDMI Splitter you can split a single HDMI signal and send it out to up to four displays. In addition to SD and HD content, UHD 4K content up to 60 fps is supported in order to drive high-resolution displays. HDCP 1.4 and 2.2 are supported for handling protected HD and UHD content. LED status indicators show which outputs are active and if there is an active input. - General
-
- Distributes one HDMI 2.0 source to two displays
- Supports up to 4K @ 60 Hz (4:4:4)
- HDCP 1.4 and 2.2 compliant
- Supports HDR and Deep Color
- Supports LPCM 7.1 channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- 16-position rotary switch for EDID management
- LED diagnostics

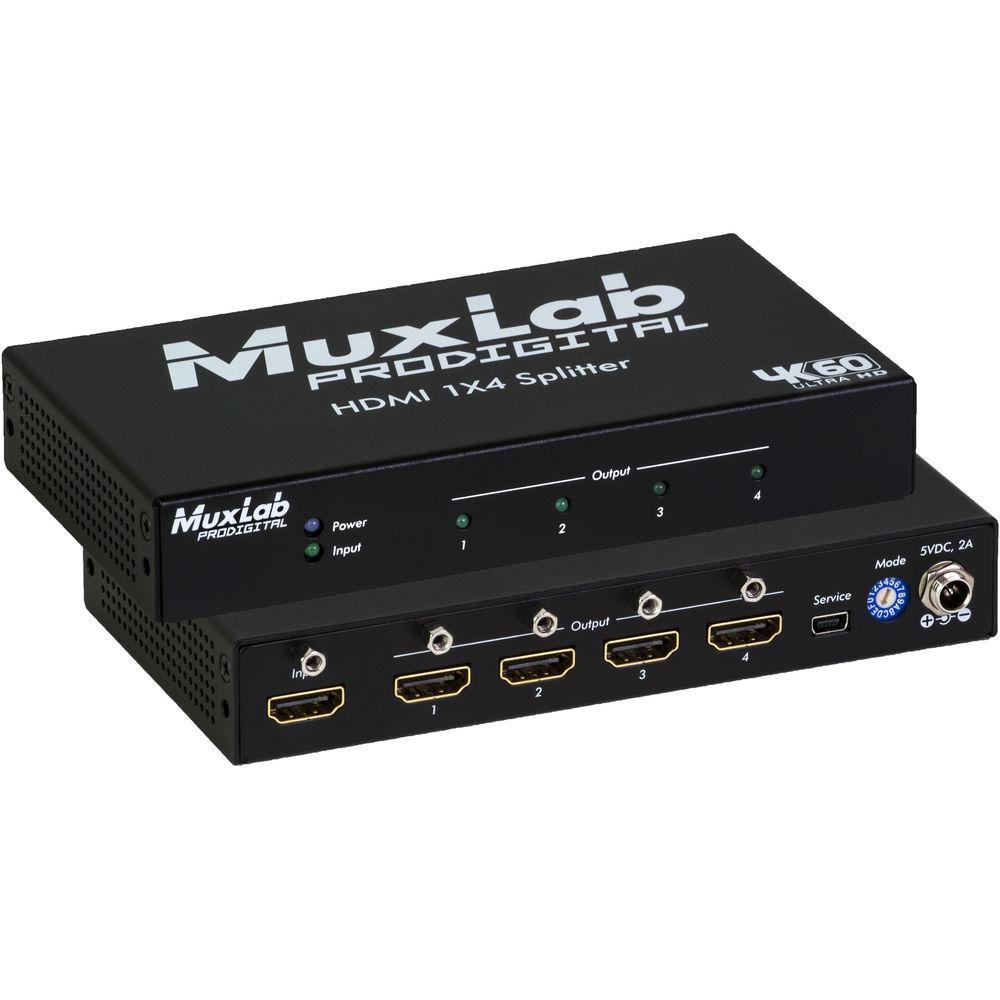

- Connectors on rear for neat cabling
- Applications
-
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems

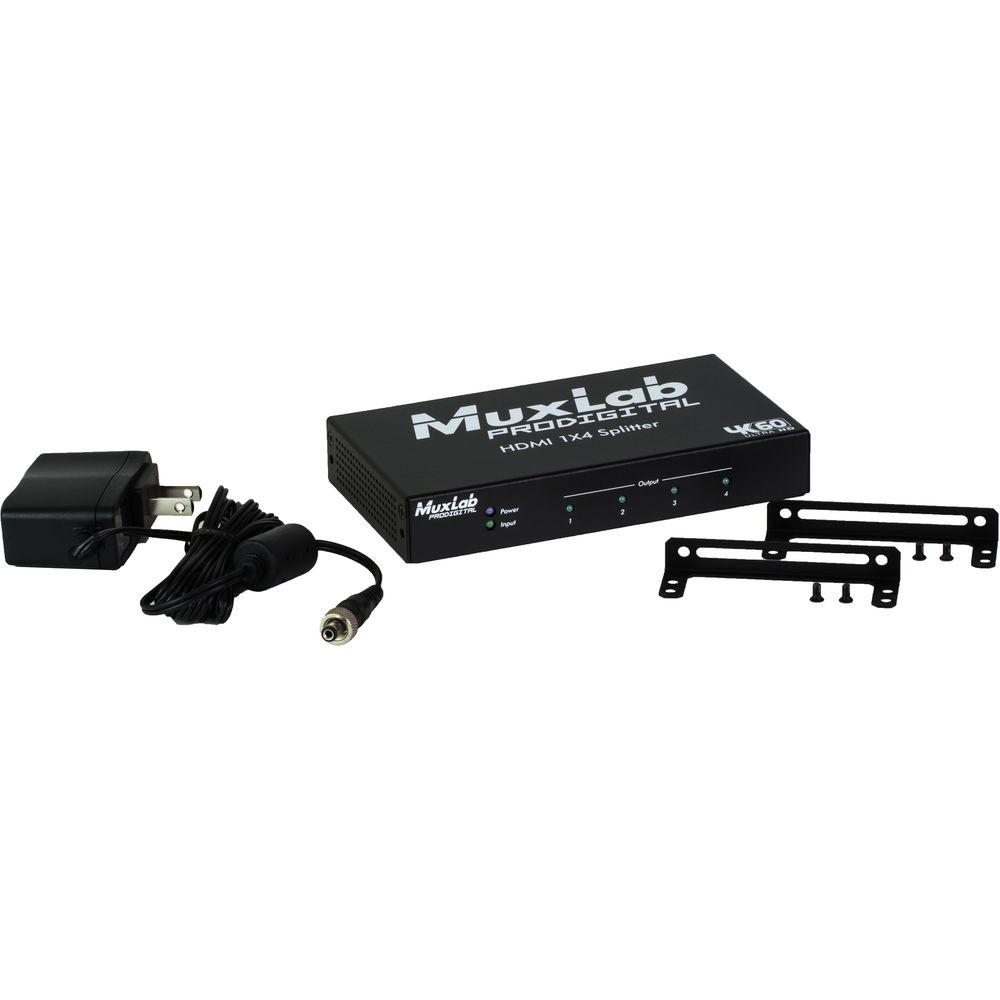

UPC: 627699004265 In the Box MuxLab 1x4 4K HDMI Splitter Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 1x4 4K HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500426 Specs | Inputs | 1 x HDMI Type A, v2.0 | | Outputs | 4 x HDMI Type A, v2.0 | | Video Bandwidth | 18 GB/s | | Frequency Range | 25 to 600 MHz | | HDCP | 1.4 & 2.2 compliant | | Resolution | 3840 x 2160 24/25/30/60
1080p 24/50/60
480i to 1080p 50/60 | | Color Depth | 8/10/12-bit | | Audio | LPCM 7.1 channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X | | Power Supply | Input: 110-240 VAC
Output: 5 VDC, 2 A | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0-90%, non-condensing | | Dimensions | 6.1 x 3.3 x 1.0" (16.0 x 8.3 x 2.5 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.245 lb | | Box Dimensions (LxWxH) | 8.0 x 5.55 x 2.95" |
