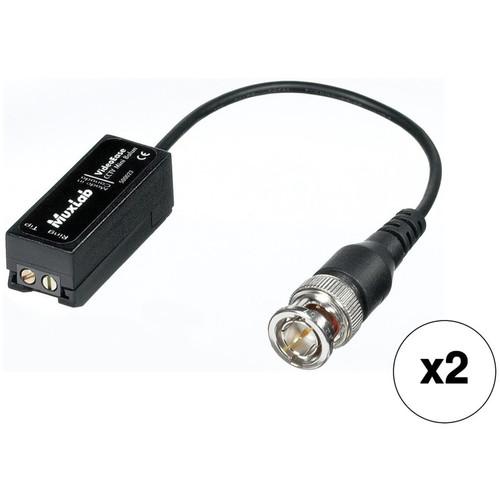

User Manual for MuxLab 2 x 500023 CCTV Mini Balun Kit Click to enlarge the picture
Contents of the user manual for the MuxLab 2 x 500023 CCTV Mini
- Product category: Signal Extenders Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Signal Extenders
|
User manual for the MuxLab 2 x 500023 CCTV Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The package of two MuxLab 2 x 500023 CCTV Mini Balun Kit from is designed to transmit CCTV video signals via Cat3 or Cat5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, they connect a wide range of surveillance equipment such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices. Note: This kit requires one Cat5e/6 twisted pair cable and two 75 Ohm coax cables with 75 Ohm BNC connections for full functionality. - 2 x MuxLab 500023 CCTV Mini Balun The 500023 CCTV Mini Balun from MuxLab transmits a single CCTV video signal via Cat 3 or Cat 5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects a wide range of surveillance equipment such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices.This mini balun supports transmission of color signals at up to 1200' via Cat 3 cable, which can be extended to up to 2200' via Cat 5 cabling. Additionally, the balun can transmit B&W signals up to 1500' via Cat 3 cables, with extended transmissions of up to 2500' using Cat 5 cable.The balun is designed to be used in pairs, and it works in conjunction with other MuxLab CCTV baluns (500000, 500009, and 500015) for additional compatibility. Featuring a compact design, the balun can fit inside a camera back box or dome enclosure for a neat installation, and it is constructed of ABS fire-retardant plastic for durability.
- Allows use of Cat 3/5 cables as an alternative to coaxial cables
- Transmits color signals up to 1200' via Cat 3; distance can be extended up to 2200' via Cat 5
- Transmits B&W signals up to 1500' via Cat 3; distance can be extended up to 2500' via Cat 5
- Fits between inside most CCTV camera back boxes and dome camera enclosures
- Constructed of ABS fire-retardant plastic for durability
- Reverse polarity sensitive connectors with 2 screw terminals
- Compatible with other MuxLab CCTV baluns (500000, 500009, and 500015)
UPC: 627699000236 In the Box - 2 x 500023 CCTV Mini Balun
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 2 x 500023 CCTV Mini Balun Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x MuxLab 500023 CCTV Mini Balun
| Environment | Closed-Circuit TV (CCTV) equipment for security and surveillance | | Devices | CCTV cameras, digital video recorders (DVRs), monitors, switchers, sequencers, multiplexers, and other CCTV equipment | | Transmission | Transparent to the user | | Bandwidth | Video: DC - 8 MHz | | Maximum Input | 1.1 V p-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC - 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC - 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3: 1200' (365 m); Cat 5: 2200' (670m)
(Shorter distances may be achieved when used with DVRs)
B/W: Cat 3: 1500' (457 m); Cat 5: 2500' (762 m) | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 Ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305 m) at 1 MHzBNC: Impedance: 75 Ohms at 1 MHz (RG59/U mini coax)
Maximum 25' (7.6m) of coax allowed per end to end link | | Connectors | Two (2) screw terminals for twisted pair
BNC-M for coax | | Impedance | Input: 75 Ohms (BNC)
Output: 100 Ohms (screw terminals) | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95% | | Enclosure | ABS fire-retardant plastic | | Dimensions | 2.3 x 0.62 x 0.62" (5.8 x 1.6 x 1.6cm) + 8" (20.3cm) mini coax lead | | Weight | 1 oz (28g) | | | | Box Dimensions (LxWxH) | 4.5 x 2.45 x 0.85" |
