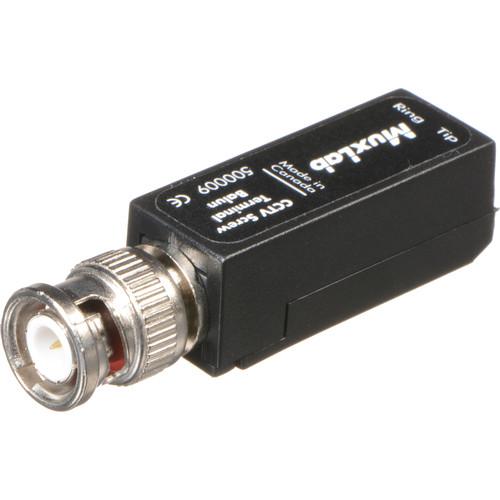

User Manual for MuxLab 2 x CCTV Screw Terminal Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 2 x CCTV Screw Terminal
- Product category: Signal Extenders Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Signal Extenders
|
User manual for the MuxLab 2 x CCTV Screw Terminal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The package of two MuxLab 2 x CCTV Screw Terminal Baluns from is designed to transmit CCTV video signals via Cat 3, 5e, or 6 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, the baluns connect a wide range of surveillance devices including cameras, IP camera encoders, video switchers, sequencers, multiplexers, DVRs, and camera servers. These baluns can also be used with other composite baseband video equipment such as DVD players, cable boxes, media servers, and audio/video monitors. - Video extender used in pairs
- Allows use of Cat3/5/5E cables as a cost-effective alternative to coaxial cables
- Transmits color signals up to 1200' (365m) via Cat3; distance can be extended up to 2200' (670m) via Cat5
- Transmits black and white signals up to 1500' (457m) via Cat3; distance can be extended up to 2500' (762m) via Cat5/6
- Made of ABS fire retardant plastic
- Compact design - 2.30 x 0.62 x 0.62" (5.8 x 1.57 x 1.57 cm)
- Low return loss - ensures maximum power transfer with no line faults
- Allows use of Cat5E/6 cables as an alternate to coaxial cables, making changes and additions easier
- Meets FCC Class A, CE, and RoHS regulatory standards
UPC: 627699900093 In the Box MuxLab 2 x CCTV Screw Terminal Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 2 x CCTV Screw Terminal Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500009-2PK Specs | Environment | Close-Circuit TV (CCTV) equipment for security and surveillance | | Devices | CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs), IP camera servers and other CCTV equipment | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5 or higher - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)
B/W: Cat 3 -1500' (457m); Cat 5/6 - 2500' (762m) | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U) | | Connectors | (reverse polarity sensitive)
Two (2) screw terminals | | Impedance | Input: 75 ohms (BNC)
Output: 100 ohms (RJ45) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.30 x 0.62 x 0.62" (5.8 x 1.57 x 1.57cm) | | Weight | 1.5 oz (42.5g) | | Regulatory | FCC Class A, CE, RoHS | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.35 x 4.45 x 0.9" |
