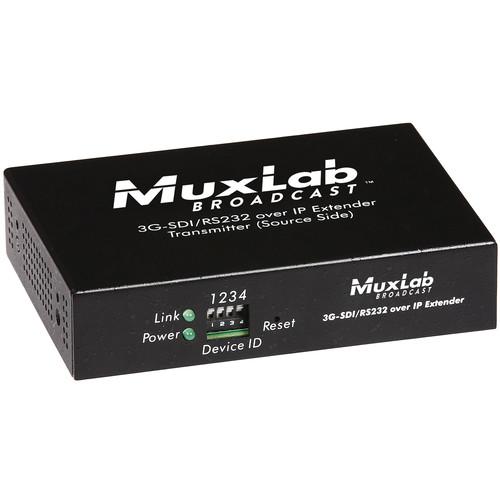

User Manual for MuxLab 3G-SDI Over IP Transmitter Unit with PoE Click to enlarge the picture
Contents of the user manual for the MuxLab 3G-SDI Over IP Transmitter Unit
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 3G-SDI Over IP Transmitter Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description Provided by third party: The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
- Key Features
-
- Supports up to 1080p resolutions
- Motion JPEG compression with very low latency
- Supports 100's of Transmitters and Receivers, depending on network bandwidth
- LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
- Supports RS232 and one way IR transmission for remote control of end devices
UPC: 627699907566 Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 3G-SDI Over IP Transmitter Unit with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500756-TX Specs | | | Device Type | Video/infrared/serial extender | | Form Factor | External | | Color | Black | | | | Connectivity Technology | Wired | | Max Resolution | 1080p | | Max Transfer Distance | 394 ft | | Status Indicators | Power, link OK | | | | Interfaces | 1 x 3G-SDI input - BNC
1 x serial - DB-9
1 x network (PoE) - RJ-45
1 x IrDA - mini jack | | | | Compliant Standards | FCC, RoHS | | | | Power Over Ethernet (PoE) | PoE | | Power Consumption Operational | 2.9 Watt | | | | Width | 4.4 in | | Depth | 3 in | | Height | 1 in | | Weight | 17.64 oz | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
