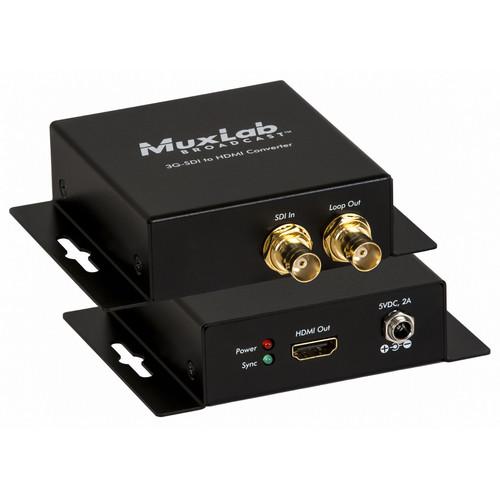

Product description The 3G-SDI to HDMI Converter from MuxLab allows you to connect an SDI equipment to an HDMI Display. It converts the SDI signal back to HDMI and supports resolutions of 480i (SD-SDI), 720p/1080i (HD-SDI), and 1080p (3G-SDI). The converter provides a low jitter and re-clocked outputs, allowing for unit daisy chain. -
- Auto 3G/HD/SD-SDI detection and conversion
- View SDI source video on an HDMI display
- Supports up to 1080p
- Operating range of up to 300' via RG59 coax
- Low jitter & re-clocked output
- Supports daisy chain
- Wall mountable
- LED diagnostics
UPC: 627699007174 In the Box MuxLab 3G-SDI to HDMI Converter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 3G-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500717 Specs | Input Signal | 3G-SDI: SMPTE-424M
HD-SDI: SMPTE 292M, 296M
SD-SDI: SMPTE 259M | | Supported Resolution | 3G-SDI:
1080p 60/59.94/50 Hz (4:2:2)
HD-SDI:
1080p 30/29.97/25/24/23.98 Hz
720p 60/59.94/50 Hz
1080i 60/59.94/50 Hz
SD-SDI:
NTSC (59.94 Hz), PAL (50 Hz) | | Audio | Up to 8 audio channels | | Detection | Auto detection of the 3G/HD/SD-SDI signal | | Bandwidth | 2.97 Gbps
2.975/1.001 Gbps | | Signals | HDMI 1.3a and SDI protocol | | Connectors | 2 x Gold plated BNC 75 Ohms (female)
1 x HDMI type A receptacle HDMI and RG59 coaxial cables not included | | Cable Equalization | 3G-SDI: Up to 300' (90 m)
HD-SDI: Up to 500' (150 m)
SD-SDI: Up to 1000' (300 m) | | Power Supply | 110 to 240 VAC; 5 VDC power supply with interchangeable blades | | Power Consumption | 3 W maximum | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Enclosure | Metal | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Up to 90% non-condensing | | Dimensions | 3.1 x 3.3 x 1.2" (7.9 x 8.4 x 2.7 cm) | | Weight | 1.7 lb (0.78 kg) |
