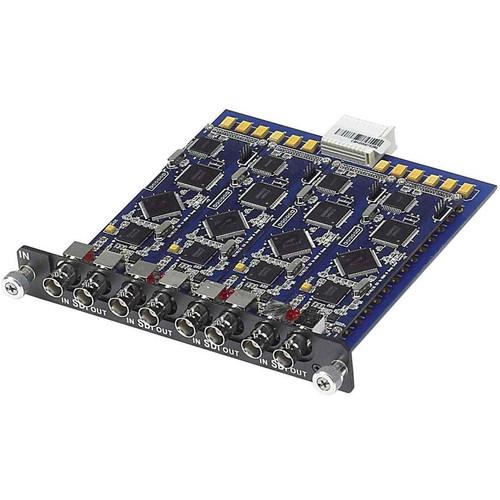

Product description The Muxlab 4-Channel 3G SDI Input Card is a 4-channel module for Muxlab's Multimedia 16 x 16 Matrix Switch. The card allows up to 4 SDI sources to be switched and/or distributed via Cat5e/6 cable. It converts all SDI channels to HDMI format for transmission via the HDMI and/or HDBaseT output cards. The card features 4 BNC inputs and 4 BNC loopback connectors.Applications include digital signage, retail, residential, boardroom, classroom training, professional video editing, medical imaging, courtroom systems, rental and staging, video kiosks, airport video information systems, emergency operations centers, and multimedia entertainment centers. - Supports SD, HD, and 3G SDI
- On-board conversion to HDMI format
UPC: 627699004739 In the Box MuxLab 4-Channel 3G SDI Input Card for Multimedia 16 x 16 Matrix Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 4-Channel 3G SDI Input Card for Multimedia 16 x 16 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500473 Specs | For Use with | Multimedia 16 x 16 Matrix Switch | | Environment | SDI single link: SD, HD and 3G | | Devices | Projectors, PCs, Cameras | | Transmission | Transparent to the user | | Connectivity | 4-port of 2 BNC female connector (input and loopback) | | Maximum Distance | 3G-SDI: 330'(100 m) | | Cable | RG59 Coaxial Cable 75 Ω | | Operating Temperature | 32 to 122°F (0 to 50ºC) | | Storage Temperature | -4 to 185°F (-20 to 85ºC) | | Humidity | Up to 95% non-condensing | | Dimensions | 6.3 x 6.0 x 1.0" (160 x 150 x 25 mm) | | Weight | 0.65 lb (0.30 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.3 x 8.1 x 2.1" |
