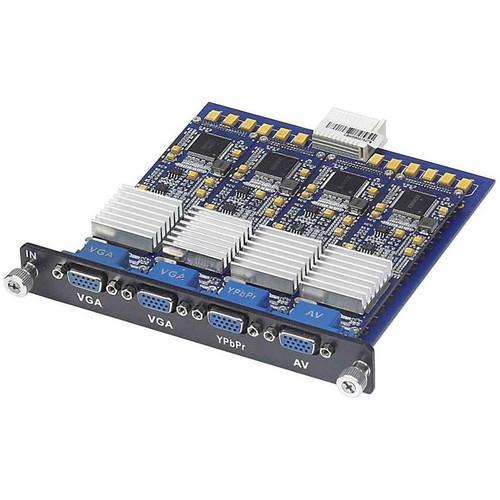

User Manual for MuxLab 4-Channel VGA Input Card for Multimedia 16 x 16 Matrix Switch Click to enlarge the picture
Contents of the user manual for the MuxLab 4-Channel VGA Input Card for
- Product category: DA & Extender/Repeater Accessories MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab DA & Extender/Repeater Accessories
|
User manual for the MuxLab 4-Channel VGA Input Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The Muxlab 4-Channel VGA Input Card is a 4-channel module for the Multimedia 16 x 16 Matrix Switch. The card allows up to 4 VGA sources to be switched and/or distributed via Cat5e/6 cable. The card features 4 HD15 inputs. Stereo Audio is supported using the VGA/Audio adaptor cables that are included. The Input Card converts and scales all VGA channels to HDMI format for transmission via the HDMI and/or HDBaseT output cards.The versatile Input Card is suitable for use for/in digital signage, retail, residential, boardroom, classroom training, professional video editing, medical imaging, courtroom systems, rental and staging, video kiosks, airport video information systems, emergency operations centers, and multimedia entertainment center applications. - Analog stereo audio support
- On-board conversion/scaling to HDMI format
- Includes 4 VGA/Audio adapter cables
UPC: 627699004746 In the Box MuxLab 4-Channel VGA Input Card for Multimedia 16 x 16 Matrix Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 4-Channel VGA Input Card for Multimedia 16 x 16 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500474 Specs | For Use with | Multimedia 16 x 16 Matrix Switch | | Environment | VGA | | Devices | PCs, laptops, home theater PCs | | Transmission | Transparent to the user | | Connectivity | 4-port DB15-HD connector | | Maximum Distance | VGA: 16' (5 m) | | Cables | DB15-HD VGA Cable | | Audio | Analog stereo audio supported using VGA/Audio adapter cable
Audio is embedded in the HDMI channel | | Operating Temperature | 32 to 122ºF (0 to 50ºC) | | Storage Temperature | -4 to 185ºF (-20 to 85ºC) | | Humidity | Up to 95% non-condensing | | Regulatory | FCC, CE, RoHS, WEEE | | Dimensions | 6.3 x 6.0 x 1.0" (160.0 x 150.0 x 25.0 mm) | | Weight | 0.65 lb (0.30 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.2 x 8.2 x 1.7" |
