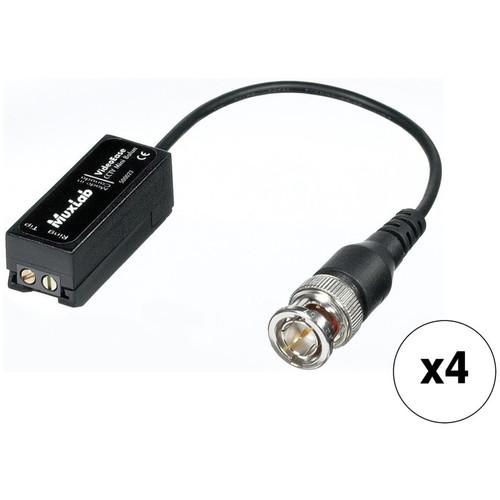

Product description The MuxLab 500023 CCTV Mini Balun Kit from Photo includes four Muxlab 500023 CCTV Mini Baluns. Each balun transmits a single CCTV video signal via Cat 3 or Cat 5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. These baluns are designed to connect a wide range of surveillance equipment, such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices.
Each of the baluns connects one end of one device to one cable, so that each device requires two baluns, one at each end. Therefore, these four baluns are able to connect up to two devices to each other and to the required Cat 3 or Cat 5 cabling. - 4 x MuxLab 500023 CCTV Mini Balun The 500023 CCTV Mini Balun from MuxLab transmits a single CCTV video signal via Cat 3 or Cat 5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects a wide range of surveillance equipment such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices.This mini balun supports transmission of color signals at up to 1200' via Cat 3 cable, which can be extended to up to 2200' via Cat 5 cabling. Additionally, the balun can transmit B&W signals up to 1500' via Cat 3 cables, with extended transmissions of up to 2500' using Cat 5 cable.The balun is designed to be used in pairs, and it works in conjunction with other MuxLab CCTV baluns (500000, 500009, and 500015) for additional compatibility. Featuring a compact design, the balun can fit inside a camera back box or dome enclosure for a neat installation, and it is constructed of ABS fire-retardant plastic for durability.
- Allows use of Cat 3/5 cables as an alternative to coaxial cables
- Transmits color signals up to 1200' via Cat 3; distance can be extended up to 2200' via Cat 5
- Transmits B&W signals up to 1500' via Cat 3; distance can be extended up to 2500' via Cat 5
- Fits between inside most CCTV camera back boxes and dome camera enclosures
- Constructed of ABS fire-retardant plastic for durability
- Reverse polarity sensitive connectors with 2 screw terminals
- Compatible with other MuxLab CCTV baluns (500000, 500009, and 500015)
UPC: 627699000236 In the Box - 4 x 500023 CCTV Mini Balun
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 4 x 500023 CCTV Mini Balun Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x MuxLab 500023 CCTV Mini Balun
| Environment | Closed-Circuit TV (CCTV) equipment for security and surveillance | | Devices | CCTV cameras, digital video recorders (DVRs), monitors, switchers, sequencers, multiplexers, and other CCTV equipment | | Transmission | Transparent to the user | | Bandwidth | Video: DC - 8 MHz | | Maximum Input | 1.1 V p-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC - 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC - 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3: 1200' (365 m); Cat 5: 2200' (670m)
(Shorter distances may be achieved when used with DVRs)
B/W: Cat 3: 1500' (457 m); Cat 5: 2500' (762 m) | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 Ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305 m) at 1 MHzBNC: Impedance: 75 Ohms at 1 MHz (RG59/U mini coax)
Maximum 25' (7.6m) of coax allowed per end to end link | | Connectors | Two (2) screw terminals for twisted pair
BNC-M for coax | | Impedance | Input: 75 Ohms (BNC)
Output: 100 Ohms (screw terminals) | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95% | | Enclosure | ABS fire-retardant plastic | | Dimensions | 2.3 x 0.62 x 0.62" (5.8 x 1.6 x 1.6cm) + 8" (20.3cm) mini coax lead | | Weight | 1 oz (28g) | | | | Box Dimensions (LxWxH) | 4.5 x 2.45 x 0.85" |
