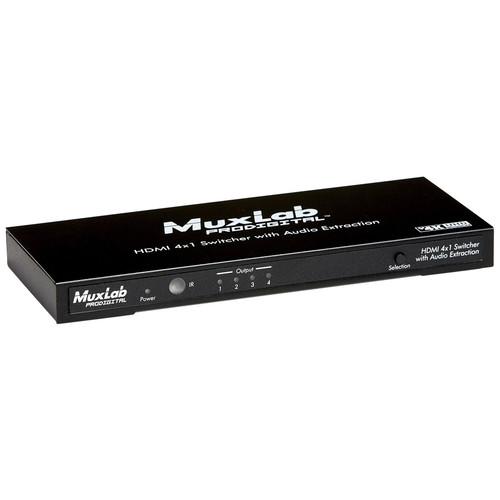

Product description The 4K HDMI 4x1 Switcher with Audio Extraction from MuxLab allows four HDMI sources to be distributed to one HDMI display. The switcher supports up to 4K (3840 x 2160), 8-bit color, and HD audio. The extracted audio is available on an S/PDIF Toslink, coaxial, and 3.5mm stereo phone jack. This unit is HDCP 1.3 compliant and features LED diagnostics indicators. - Switches between four Ultra HD sources to one Ultra HD display
- Supports resolutions up to UHD 4Kx2K (3840 x 2160 @ 30 Hz) and 1080p Full HD
- Supports 12-bit Deep Color, 3D
- Extracts audio to S/PDIF Toslink, coaxial, and 3.5mm stereo jack
- Extracts LPCM to analog audio 3.5mm stereo jack
- Supports LPCM 7.1, Dolby TrueHD, Dolby
- Digital Plus and DTS-HD master audio
- Push-button selects between the four HDMI inputs
- Suitable for commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems
UPC: 627699004302 In the Box MuxLab 4K HDMI 4x1 Switcher with Audio Extraction IR Remote Control 5 VDC, 2A Power Adapter with Interchangeable Blades Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 4K HDMI 4x1 Switcher with Audio Extraction in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500430 Specs | Environment | HDMI 1.4 (3D) | | Devices | DVD/Blu-ray, plasma, projectors, monitors, TV, PC, and laptops | | Transmission | Transparent to the user | | Frequency | 25 to 340 MHz | | Signals | HDMI 1.4 protocol | | Connectors | Input
4 x HDMI type A, female
Output
1 x HDMI type A, female
1 x 3.5 mm Mini stereo audio
1 x S/PDIF Toslink audio
1 x Coaxial audio
1 x Power barrel port | | Indicators | Green: 1 x Power
Blue: 4 x Output link | | Power Control | Push-button on the front of the unit | | Resolution | 480i to 1080p @ 50/60 fps
1080p @ 24/50/60 fps
3840 X 2160 @ 24/25/30 fps
VGA to UXGA | | Color | 8, 10, and 12-bit | | Audio Format | Uncompressed (LPCM) or compressed (Dolby, DTS) | | HDCP | Revision 1.3 | | Cable | HDMI cable | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Up to 90% non-condensing | | Power Supply | 5 VDC, 2 A, with interchangeable blades for US, UK, and Euro | | Regulatory Compliance | FCC, CE, RoHS | | Enclosure | Metal enclosure | | Dimensions | 10.6 x 4.3 x 1.1" (27 x 11 x 3 cm) | | Weight | 3.2 lb (1.5 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 13.7 x 9.4 x 2.2" |
