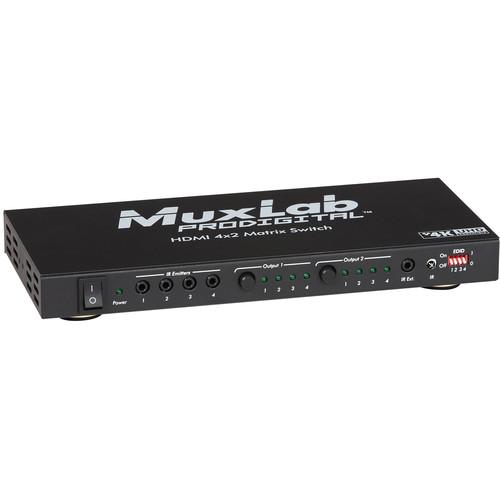

Product description The 4K HDMI 4x2 Matrix Switch from MuxLab connects four HDMI sources to be distributed to two HDMI displays. The switcher supports up to 4K (3840 x 2160) along with all 3D formats. It works with Blu-ray players, set-top boxes, home theater systems, and game consoles that connect to an HDMI display. It is suitable for commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems. - HDMI 1.4 supports 4K x 2K @ 30 Hz, 1080p @ 120 Hz, and 1080p 3D @ 60 Hz
- Supports color depth of 48-, 36-, 30-, and 24-bit
- Supports LPCM 7.1, Dolby TrueHD, and DTS-HD master audio
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Supports push button, IR, and RS232 control
- HDMI connectors with locking nuts

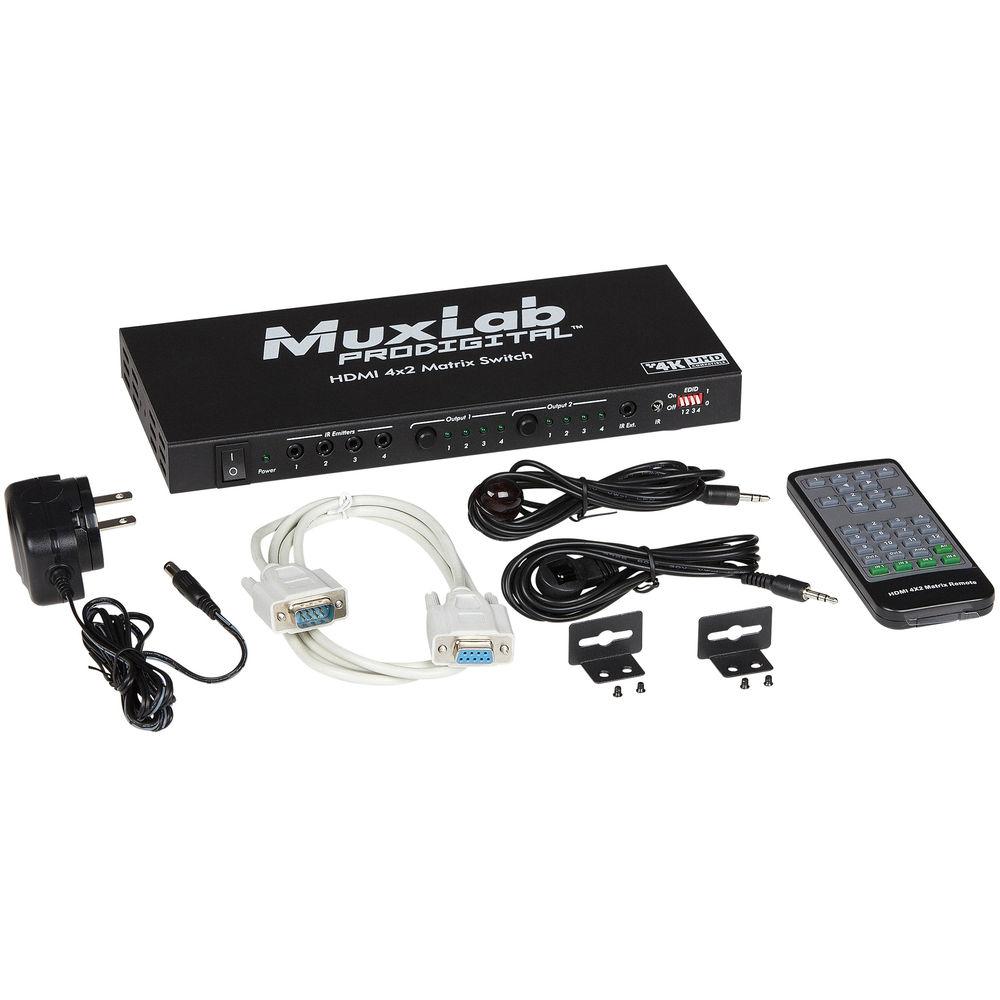

UPC: 627699004425 In the Box MuxLab 4K HDMI 4x2 Matrix Switch with 3 IR Sensors and 4 IR Emitters 3 x IR Sensors 4 x IR Emitters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 4K HDMI 4x2 Matrix Switch with 3 IR Sensors and 4 IR Emitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

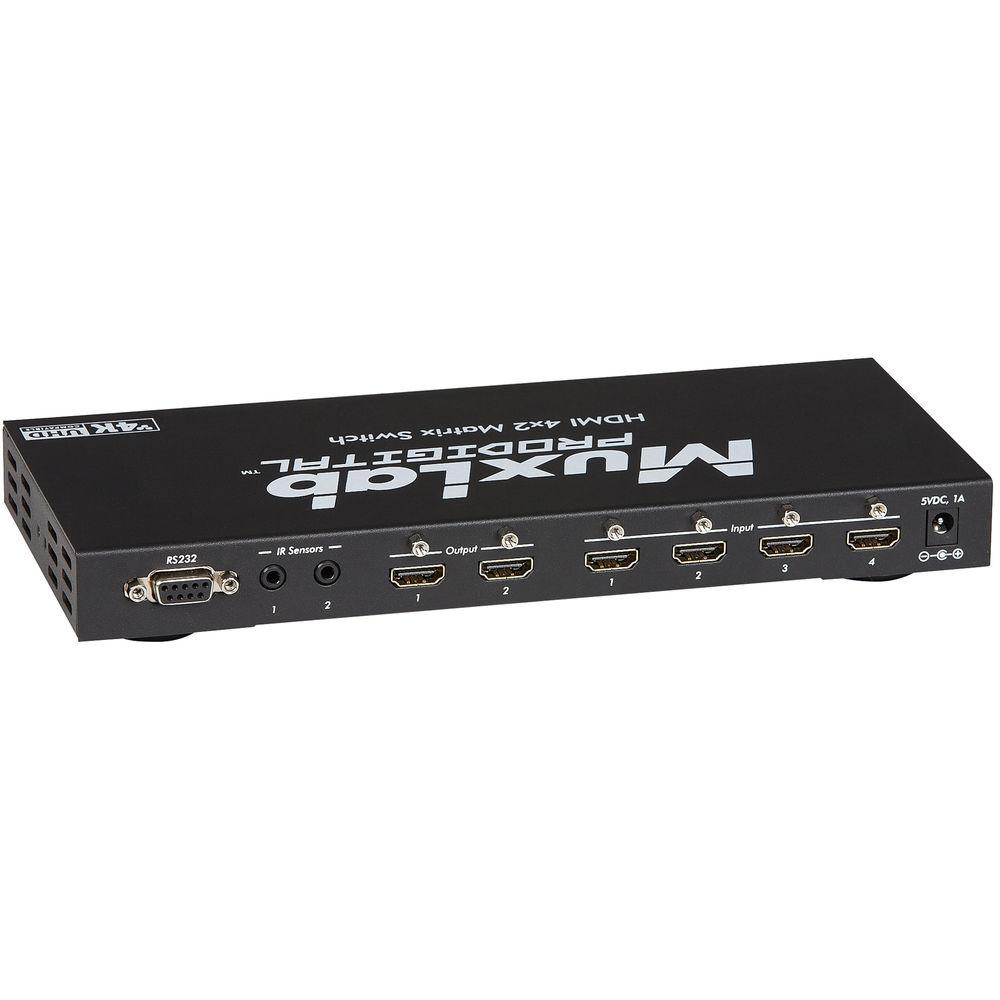

Technical parametersMuxLab 500442 Specs | Video Bandwidth | 297 MHz | | Supported Video Resolutions | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p @ 24/30/50/60 Hz, 4K @ 30 Hz, 1080p 3D @ 60 Hz | | Input Ports | 4 x HDMI
1 x RS-232
3 x IR Sensor 3.5 mm jacks | | Output Ports | 2 x HDMI
4 x IR Emitter 3.5 mm jacks | | ESD Protection | Human-Body Model:
± 8 kV (Air-gap discharge)
± 4 kV (Contact discharge) | | Power Supply | 110 to 240 VAC to 5 VDC, 1 A power supply with interchangeable blades | | Chassis Material | Metal | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | up to 90% non-condensing | | Power Consumption | 5 W maximum | | Regulatory Compliance | FCC, CE, RoHS | | IR | Emitter Cable Length: 60.6' / 154.0 cm | | Dimensions | 10.2 x 4.4 x 1.0" / 25.9 x 11.1 x 2.5 cm | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.0 x 9.3 x 2.5" |
