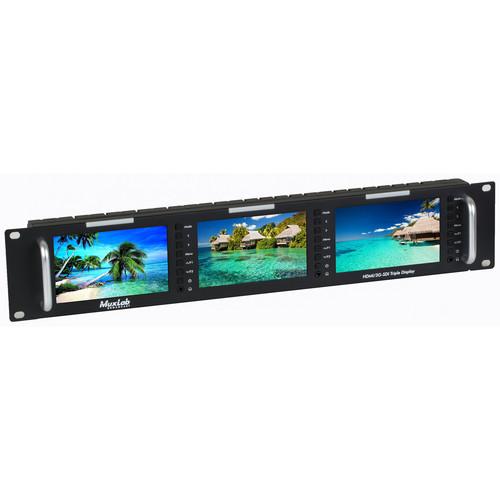

Product description The Muxlab 5" HDMI/3G-SDI Triple Display Monitor features three independent 5" TFT monitors in a single housing suitable for rack-mounting. This allows you to save space in a rack system whether in a machine room or OB truck. Supporting up to 1080p60 over both HDMI and 3G-SDI, each monitor features individual HDMI, 3G-SDI, and CVBS inputs with loop-through outputs. The unit requires only a single power source to power all three monitors.
Each monitor features assignable front panel buttons to select functions such as center marker, safe area, image flip, and image freeze. A single 15-pin connector supports individual tally on each monitor, allowing you to tell at a glance which image is live. The 19" wide panel is pre-drilled for rack-mounting and is only 2 RU tall. - Three independent 5" TFT LCD monitors in a single 19" 2-RU housing.
- Powered via either 4-pin XLR or coax power connector.
- Each monitor has its own front panel buttons for power, menu, and selection as well as assignable function buttons.
- Individual headphone jacks are provided for each monitor.

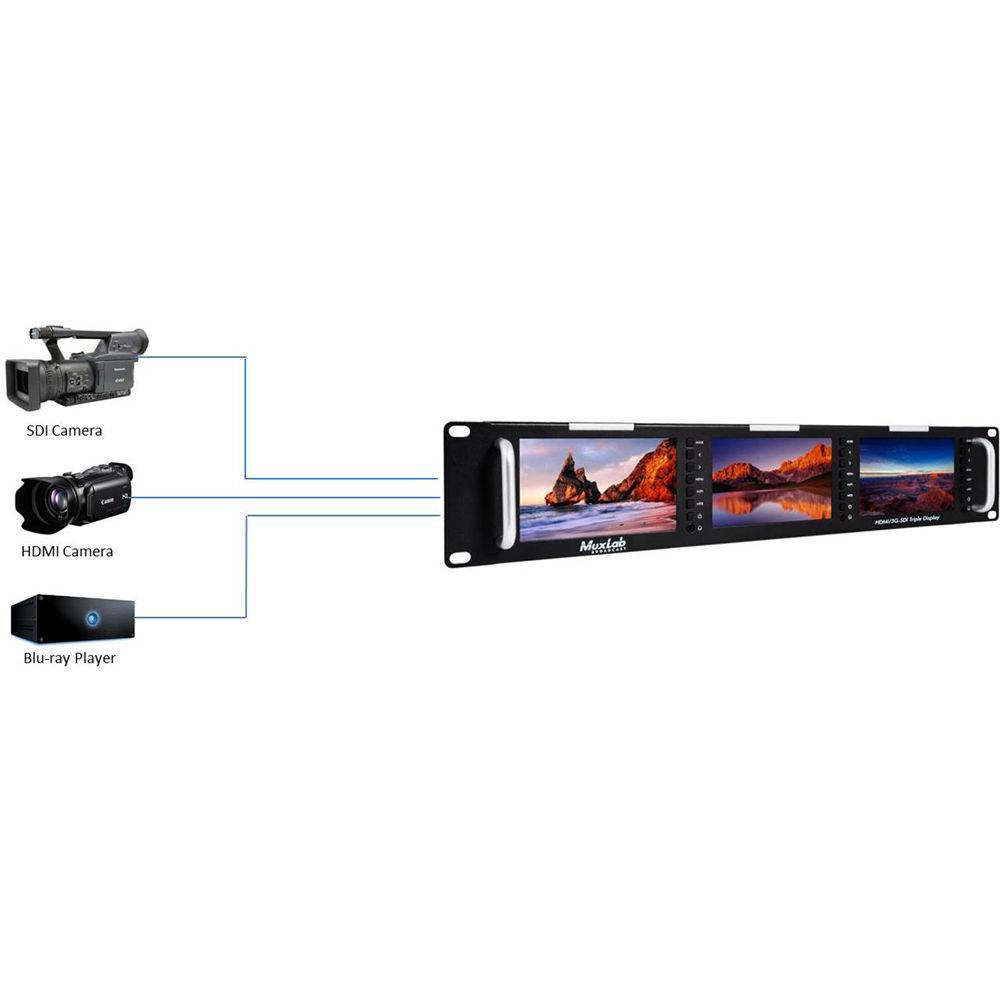

- Each monitor supports HD signals over HDMI and 3G-SDI connectors as well as CVBS SD signals with audio via BNC and RCA jacks.
- Each monitor features center marker, safe area markers, check field, focus assist, aspect ratio, image flip, pixel-to-pixel, and image freeze.
UPC: 627699018408 In the Box MuxLab 5" HDMI/3G-SDI Triple Display Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 5" HDMI 3G-SDI Triple Display Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500840 Specs | Color Video Format | NTSC: 3.58
PAL: 4.43 | | Display Type | TFT LCD with LED backlight | | Screen Size | 5" each | | Resolution | 800 x 480 (RGB) per screen | | Viewing Angle | L/R: 70/70°
U/D: 50/70° | | Aspect Ratio | 16:9 | | Brightness | 500 cd/m² | | Contrast Ratio | 500:1 | | Dot Pitch | 0.045 (W) x 0.135 (H) mm | | Response Time | Turn On: 10 ms
Turn Off: 15 ms | | Video Formats | 3G/HD/SD-SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
576i
480i
Composite

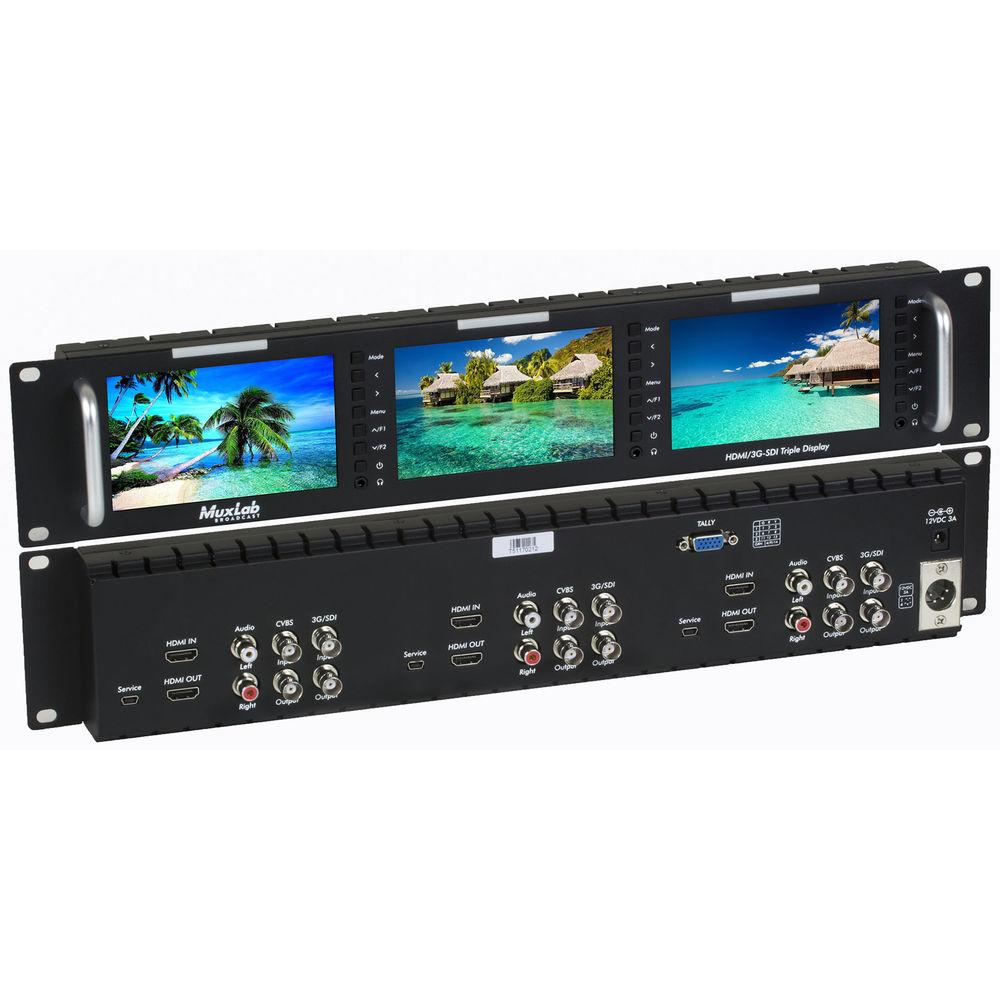

CVBS (Composite Video Broadcast Signal) | | Inputs/Outputs | Inputs Each Monitor
HDMI: 1 x HDMI type A
SDI: 1 x BNC
CVBS: 1 x BNC
Audio: 1 x RCA pair (L/R)
Outputs Each Monitor
HDMI: 1 x HDMI type A (loop-through)
SDI: 1 x BNC (loop-through)
CVBS: 1 BNC (loop-through)
Headphone: 1 x 3.5 mm stereo jack | | Interface | Tally: 1 x DB15
Power: 1 x 2.1 mm coax
Power: 1 x 4-pin XLR
Firmware Update: 3 x mini-USB (1 per monitor) | | Environment | Operating Temperature: -4 to 131°F / -20 to 55°C
Storage Temperature: -22 to 149°F / -30 to 65°C
Humidity: Up to 95% non-condensing | | Power Requirements | 9 to 24 VDC | | Power Consumption | 25 W | | Dimensions (WxHxD) | 19 x 3.46 x 1.34" / 48.26 x 8.79 x 3.4 cm | | Weight | 3.45 lb / 1.56 kg | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 21.2 x 6.5 x 4.3" |
