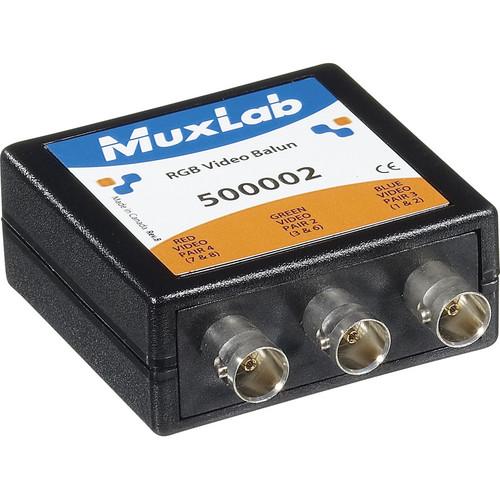

User Manual for MuxLab 500002 RGB Video Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500002 RGB Video Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500002 RGB Video Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500002 RGB Video Balun is a video extender that allows transmission of one component video signal (YPbPr or RGB) via a single Cat5e/6 cable. This balun eliminates the need for using 3 expensive coaxial cables while ensuring a clean and streamlined setup. When used in pairs, the balun transmits component video and supports 480i/p video transmission up to 1000' (305 m) and 720p/1080i/p video transmission up to 500' (152 m).
With support for full HD resolution, the RGB video balun combines RGB over 4 twisted pairs for hi-fidelity commercial applications. The unit comes with three 10” (25.4 cm) BNC coax jumper cables for quick installation. - Allows transmission of one component video (YPbPr or RGB) signal via a single Cat5e/6 UTP cable
- For use with A/V equipment such as DVD players, satellite receivers, plasma displays, projectors, monitors, amplifiers, switchers, home theater systems and other equipment supporting HDTV component video
- Supports 480i/p video transmission up to 1000' (305m) via Cat5e/6 cables
- Supports 720p/1080i/p video transmission up to 500' (152m) via Cat5e/6 cables
- Combines RGB over 4 twisted pairs for hi-fidelity commercial applications
- Eliminates the use of 3 coaxial cables with a single Cat 5e/6 UTP cable
- Modular shielded RJ45 connector
- Made of ABS fire-retardant plastic
- Ideal for production studios, command centers, control rooms, multimedia rooms, communications centers, etc.
UPC: 627699000021 In the Box MuxLab 500002 RGB Video Balun 3 x 10" (25.4 cm) Coax Jumper Cables (BNC-Male to BNC-Male) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500002 RGB Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500002 Specs | Environment | Component Video (YPbPr), RGB Video (sync on green)
480i/p, 720p, 1080i/p | | Devices | DVD players, satellite receivers, plasma displays, projectors, monitors, amplifiers, switchers, home theatre and other equipment supporting HDTV component video | | Transmission | Transparent to the user | | Bandwidth | Video: 60 MHz, 3 dB roll off | | Maximum Input | 1.1Vp-p | | Insertion Loss | 0.1 dB for 0.1 MHz
Gradually increasing to 2.5 dB over the frequency range | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | -55 dB @ 0.1MHz
Gradually increasing to -20 dB @60 MHz | | Maximum Distance | 480i/p: 1,000' (305 m)
720p and 1080i: 500' (152 m) | | Cable | Cable - Cat5/6 UTP/STP: 24 gauge or lower solid copper twisted pair wire. Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305 m) at 1 MHz | | Cable - BNC | Impedance: 75 ohms at 1 MHz | | Connectors | Three (3) BNC-F connectors: Green (Y), Blue (Pb) , Red (Pr) RJ45S for twisted pair | | Pin Configurations | Red (Pr): Pins 7[R] & 8[T], Green (Y): Pins 3[R] & 6[T], Blue (Pb): Pins 1[R] & 2[T] Reverse polarity sensitive. | | Temperature | Operating: 0 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C) | | Humidity | Up to 95% | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC, CE | | Dimensions | 2.40 x 2.25 x 1.0" (6.1 x 5.7 x 2.54 cm) | | Weight | 7.5 oz (212 g) | | | | Package Weight | 0.425 lb | | Box Dimensions (LxWxH) | 6.8 x 6.55 x 1.9" |
