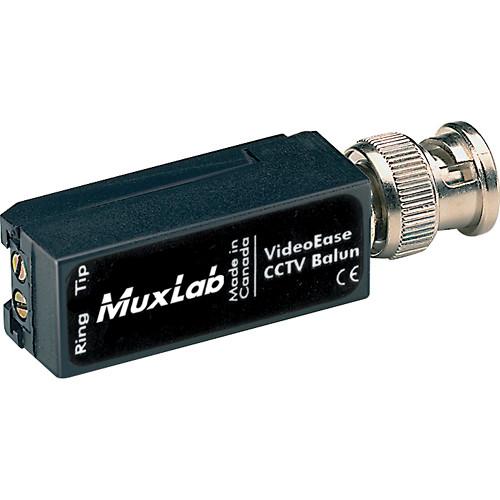

User Manual for MuxLab 500009 CCTV Screw Terminal Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500009 CCTV Screw Terminal Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500009 CCTV Screw Terminal Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The Muxlab 500009 Screw Terminal Balun is a video extender that allows a single CCTV video signal to be transmitted via a Cat3/5E/6 cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects to CCTV security / surveillance equipment that includes cameras, IP camera encoders, video switchers, sequencers, multiplexers, DVRs, and camera servers. The balun can also be used with other composite baseband video equipment such as DVD players, cable boxes, media servers and audio-video monitors. The screw terminal balun is used in pairs to transmit standard composite video and supports transmission of color signals up to 1200' via Cat3; it can be extended to 2200' via Cat5E/6 or a higher version. For black and white signals, the maximum transmission distance is up to 1500' via Cat3 (can extended up to 2500' via Cat5/6). The balun uses 2 screw terminals. Made of ABS fire retardant plastic, the compact screw terminal balun measures 1.75 x .75 x 1.00" (4.44 x 1.9 x 2.54 cm), and features low return loss that ensures maximum power transfer with no line faults between the input and output. Besides using Cat3/5/6 as a cost-effective alternative to coaxial cabling, the balun also makes changes / additions to modular outlet connections faster and easier. - Video extender used in pairs
- Allows use of Cat3/5/5E cables as a cost-effective alternative to coaxial cables
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5E/6 or a higher version
- Transmits black and white signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5/6
- Made of ABS fire retardant plastic
- Compact design - 1.75 x .75 x 1.00" (4.44 x 1.9 x 2.54 cm)
- Low return loss - ensures maximum power transfer with no line faults
- Operating temperature range 0 to 55° C
- Changes and additions to other modular outlet connections are made easier
- Meets FCC Class A, CE, and RoHS regulatory standards
UPC: 627699000090 In the Box MuxLab 500009 CCTV Screw Terminal Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500009 CCTV Screw Terminal Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500009 Specs | Environment | Close-Circuit TV (CCTV) equipment for security and surveillance | | Devices | CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs), IP camera servers and other CCTV equipment | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5 or higher - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)
B/W: Cat 3 -1500' (457m); Cat 5/6 - 2500' (762m) | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U) | | Connectors | (reverse polarity sensitive)
Two (2) screw terminals | | Impedance | Input: 75 ohms (BNC)
Output: 100 ohms (RJ45) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.30 x 0.62 x 0.62" (5.8 x 1.57 x 1.57cm) | | Weight | 1.5 oz (42.5g) | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.1 x 0.6 x 0.4" |
