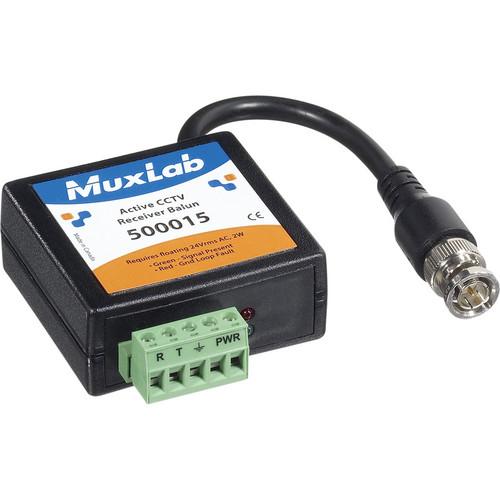

Product description The MuxLab 500015 Active CCTV Receiver Balun allows transmission of CCTV video signals via a Cat5E/6 UTP/STP (Unshielded/Shielded Twisted Pair) cable. When used in conjunction with MuxLab's passive CCTV baluns (500000 and 500009) at the camera end, the balun supports transmission of color or black and white signals up to 1 mile (1.6 km). Providing a hassle-free cabling solution, it connects directly to CCTV security / surveillance equipment that includes cameras, monitors, DVRs, switchers, multiplexers, and other CCTV equipments. The modular balun features AGC (Auto Gain Control) that automatically enhances the brightness, sharpness and color intensity of the video signal based on the actual cable conditions and GLB (Ground Loop Blocking) for reliable and stable image quality. Made of fire retardant plastic, the active receiver balun includes a hook and loop fastener for optional surface mounting, LED indicators for power, video signal, and ground loop fault, and screw terminals with built-in strain relief for ease of installation. The unit has voltage surge protection on video input and output with auto-resettable fuse. - Allows transmission of CCTV video signals via a Cat5E/6 UTP/STP cable
- Transmits color or black and white signals up to 1 mile (1.6 km)
- Works in conjunction with MuxLab's CCTV baluns (500000 and 500009) for a complete cabling solution / hassle-free wiring
- Automatic gain control for brightness and sharpness
- Features ground loop blocking for reliable and stable image quality
- Requires a floating 24V, 2W AC power supply (not supplied)
- Surge protection on video input and output with auto-resettable fuse
- Made of fire retardant plastic
- Hook and loop fastener for optional surface mounting
- LED indicators for power, video signal, and ground loop fault
- Screw terminals with built-in strain relief for ease of installation
- Meets FCC and CE regulatory standards
UPC: 627699000151 In the Box MuxLab 500015 Active CCTV Receiver Balun 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500015 Active CCTV Receiver Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab LongReach Specs | Environment | CCTV equipment for security and surveillance. RS-343 (RS-170) | | Devices | CCTV cameras, monitors, DVRs, switchers, multiplexers and other CCTV equipment. | | Transmission | Transparent to the user | | Bandwidth | DC to 4.5 MHz | | Input | 1.5 Vp-p max, 100 ohms, balanced | | Output | 1.1 Vp-p, ±1 dB, 75 ohms, unbalanced | | Insertion Loss | Determined by Automatic Gain Control
Luma: -14 dB minimum / Chroma: -60 dB minimum | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | Greater than 40 dB at 3.85 MHz | | Maximum Distance | Category 5E/6 UTP/STP: 1 mile (1.6 km) | | LED | Green (Dim): Power
Green (Bright): Video Signal and AC power
Red: Ground Loop Fault | | Cable Requirements | Cat 5E/6 UTP/STP:
24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000' (305m) at 1 MHz
BNC:
Impedance - 5 ohms at 1 MHz (RG59/U or RG6) | | Input Connections | (reverse polarity sensitive)
Video: Two (2) screw terminals
Power: Two (2) screw terminals
Ground: One (1) screw terminal | | Output Connections | Video: Male BNC with 5" coax lead | | Power | 24V (AC or DC) floating ±20%, 110 mA RMS typical, 3W RMS max. | | Surge Protection | Video IN/OUT Surge protection: ±1.5V max. permanent voltage positive or negative pulse, 3V max. 1 ms
AC/DC power surge protection: Above 30 VAC RMS or 42 VDC
Built-In Fuse Protection: Auto-resetting upon power off. Not user serviceable. | | Temperature | Operating: 32 - 113°F (0 - 45°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% non condensing | | Enclosure | Fire retardant plastic (black) | | Dimensions | 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.54cm)
Plus 5" (127mm) coax lead | | Mounting | Fabric hook-and-loop fasteners | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 8.9 x 5.6 x 1.3" |
