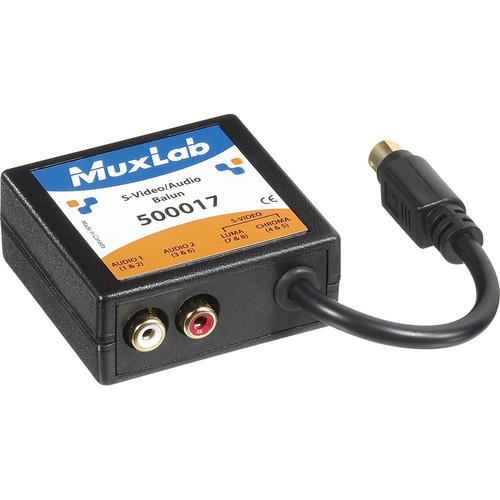

User Manual for MuxLab 500017 S-Video Audio Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500017 S-Video Audio Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500017 S-Video Audio Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500017 S-Video/Audio Balun allows transmission of a single S-Video signal up to 1000' (305m) and audio signal up to 3250' (990m) in a point-to-point connection via Cat5E/6 UTP cable, eliminating the need for bulky S-Video patch cables. When used in conjunction with MuxLab's Audio-Video Distribution Hub (500200), the S-Video Balun allows S-Video programming to be distributed via UTP. The balun is used in pairs and allows S-Video equipment such as DVD players, VCR, satellite receivers, etc. to be connected to any convenient modular outlet. Besides using Cat5E/6 as an alternative to S-Video cabling, the balun also makes changes / additions to modular outlet connections faster and easier. The compact balun measures 2.40 x 2.25 x 1.00" and allows for hassle-free wiring. It features 20Hz to 20KHz audio bandwidth and includes 6" dual-RCA stereo audio cable. The balun is ideal for use in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks. - Allows transmission of a single S-Video signal up to 1000' (305m) and audio signal up to 3250' (990m) in a point-to-point connection via Cat5E/6
- Supports use of UTP as a cost-effective alternative to bulky S-Video patch cables
- When used in conjunction with MuxLab's Audio-Video Distribution Hub (500200), the S-Video Balun allows S-Video programming to be distributed via UTP
- S-Video equipment include DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, LCD projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, S-Video splitters, and S-Video converters
- Allows S-Video equipment to be connected to any convenient modular outlet
- Changes and additions to other modular outlet connections are made easier
- Compact design - 2.40 x 2.25 x 1.00"
- Audio bandwidth - 20Hz to 20KHz
- Includes 6" dual RCA jumper cable
- Ideal for use in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks
UPC: 627699000175 In the Box MuxLab 500017 S-Video/Audio Balun 6" (15.2cm) Dual RCA Stereo Cable Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500017 S-Video Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500017 Specs | Transmission | Transparent to the user | | Bandwidth | Video: DC to 6 MHz
Audio: 20 Hz to 20 KHz | | Impedance | Video: 75 ohms
Audio: 600 ohms minimum | | Maximum Input | Video: 1.1Vp-p
Audio: 1.1Vp-p | | Insertion Loss | Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
Audio: Less than 2 dB per pair over the frequency range | | Return Loss | Video: Better than 15 dB over the frequency range
Audio: N/A | | Common Mode Rejection | Video: Greater than 40 dB over the frequency range
Audio: Greater than 60 dB @ 1 KHz / Greater than 40 dB over the frequency and distance range | | Maximum Distance | Video: 1000' (305m)
Audio: 3250' (990m)
(Cat5e/6 UTP cable) | | Configuration | (pin configuration)
Video
S-Video Luma: pins 7 [R] & 8 [T]
S-Video Chroma: pins 4 [R] & 5 [T]
Reverse Polarity Sensitive
Audio
Audio 1: pins 1 [R] & 2 [T]
Audio 2: pins 3 [R] & 6 [T] | | Cable | 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305m) at 1 MHz | | Connectors | 1x S-video
2x RCA audio jacks
1x RJ45
Includes 6" (15.2cm) dual RCA stereo cable (accepts audio cable up to 12' (3.7m) | | Enclosure | Fire retardant plastic | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Dimensions | 2.4 x 2.3 x 1" (61 x 58 x 25mm) - plus 5" (127mm) S-video lead | | Weight | 3.1 oz (89g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.6 x 3.5 x 1.2" |
