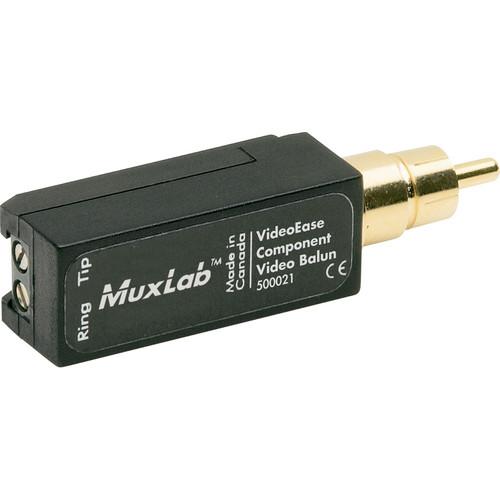

User Manual for MuxLab 500021 Component Video Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500021 Component Video Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500021 Component Video Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The Muxlab 500021 Component Video Balun is a cost-effective solution for transmitting a component video signal (Y, Pb, or Pr) to a component video monitor via a Cat 5 UTP cable. This balun eliminates the need for using 3 expensive coaxial cables while ensuring a clean and streamlined setup. You can transmit a component (YPbPr) video signal a distance of up to 1000’ (305 m) and a composite video signal (NTSC, PAL, SECAM) up to 2200’ (670 m). Thanks to its compact design, you can connect up to 3 baluns sideways to the back of your component video equipment. Note: Three balun pairs are required for a point-to-point component video (YPbPr) connection. - For transmitting a component video signal (Y, Pb, or Pr) from devices such as DVDs, VCRs, TVs, satellite receivers, monitors, switchers, home theater systems to a component video monitor via a Cat5 UTP cable
- Transmits a component video signal (YPbPr) at a distance of up to 1000' (305 m) and composite video signals (NTSC, PAL, SECAM) up to 2200' (670 m)
- Eliminates the use of 3 coaxial cables
- Compact size allows for 3 baluns to be connected sideways on the video equipment
- Gold-plated connector ensures superior resistance to corrosion
- Built-in cable strain relief ensures flexibility without stressing on the vulnerable part of the cord
- Fire-retardant ABS plastic enclosure
UPC: 627699000212 In the Box MuxLab 500021 Component Video Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500021 Component Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500021 Specs | Environment | Component (YPbPr) video (480i, 480p)
Composite video (NTSC, PAL, SECAM) | | Devices | DVD, VCR, TV, satellite receivers, monitors, switchers, home theatre, and other equipment supporting component video | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 60 dB @ 8 MHz | | Maximum Distance Colour | Cat 5 UTP: Component (YPbPr): 1000' (305 m). 480i/p only
Composite: 2200' (670 m) | | Cable - UTP | 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305 m) at 1 MHz | | Cable - BNC | Impedance: 75 ohms at 1 MHz | | Connectors | One (1) gold-plated RCA connector
Two (2) screw terminals for twisted pair Reverse polarity sensitive. | | Impedance | Input: 75 ohms unbalanced (RCA connector)
Output: 100 ohms balanced UTP (screw terminals) | | Temperature | Operating: 0 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C) | | Humidity | Up to 95% | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC, CE
US design patent # D495,320 | | Dimensions | 2.30 x 0.62 x 0.62" (5.8 x 1.6 x 1.6 cm) | | Weight | 1.5 oz (42.5 g) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 5.8 x 4.3 x 0.3" |
