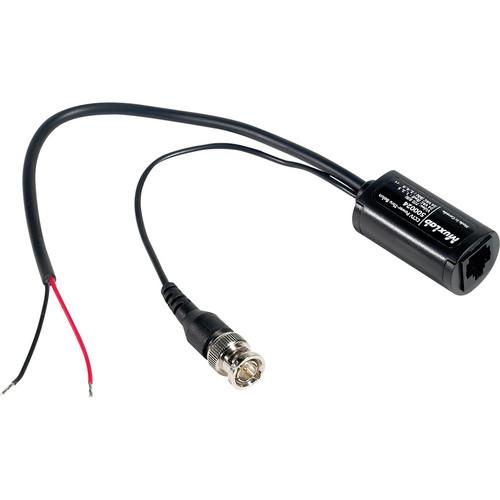

User Manual for MuxLab 500024 CCTV Power-Thru Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500024 CCTV Power-Thru Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500024 CCTV Power-Thru Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500024 CCTV Power-Thru Balun with modular RJ-45 connector transmits video and remote power via one 4-pair Cat5 UTP (Unshielded Twisted Pair) cable, eliminating the need for multiple cable installations. When used in conjunction with MuxLab's passive CCTV hub (500130), the modular balun transmits standard composite video and supports transmission of color signals up to 1200' (365m) via Cat3; it can be extended to 2200' (670m) via Cat5. For b&w signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5. Made of ABS fire retardant plastic, the modular balun features port configuration switch to set port as the Power-thru balun that transmits remote power up to 500' (170m) via 3 twisted pair cables at 24VAC/5VA. Providing a hassle-free cabling solution, the Power-Thru Balun connects to CCTV security / surveillance equipment that includes cameras, monitors, switchers, sequencers, multiplexers, DVRs, and other CCTV equipment. The balun can also be used with other composite baseband video equipments. - Transmits video and remote power via one 4-pair Cat5 UTP cable
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5
- Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5
- Transmits remote power up to 500' via 3 twisted pair cables at 24VAC/5VA
- Made of ABS fire retardant plastic
- Supports baseband video; NTSC, PAL, and SECAM
UPC: 627699000243 In the Box MuxLab 500024 CCTV Power-Thru Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500024 CCTV Power-Thru Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500024 Specs | Environment | Baseband video; NTSC, PAL, SECAM | | Devices | Close-circuit TV (CCTV) cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs) and other CCTV equipment | | Transmission | Transparent to the user | | | | Bandwidth | DC to 8 MHz | | Impedance | Input: 75 ohms (BNC); Output: 100 ohms (RJ45) | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5 - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)
B/W: Cat 3 - 1500' (457m); Cat 5 - 2500' (762m) | | | | Wiring | Remote low voltage power supported via two (3) twisted pairs. A Class II power supply is recommended | | Maximum Distance | (at 24VAC via 3 twisted pairs)
5 VA: 518' (170m)
10 VA: 259' (85m)
20 VA: 130' (43m)
30 VA: 86' (28m) Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC. | | Maximum Input Voltage | 50 Volts (AC RMS/DC) | | Maximum Current | 4.5A (AC RMS/DC) | | | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end | | Connectors | Video: BNC-male 8" (203mm) mini-coax lead Power: 2-wire 18AWG lead
Combined signals: RJ45 (500024); Screw terminals (500029) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 1.875 x 1" (4.7 x 2.54cm) diameter plus cable leads; 8" (20cm) for video; 10" (25.4cm) for power and control leads | | Weight | 1.95 oz (55g) | | | | Package Weight | 0.085 lb | | Box Dimensions (LxWxH) | 5.6 x 2.15 x 1.1" |
