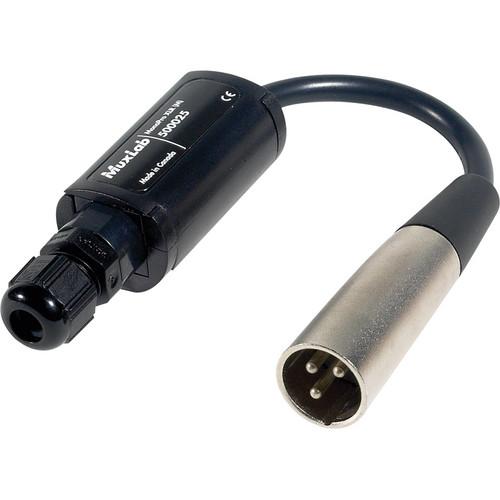

Product description The MuxLab 500025 MonoPro XLR (Male) transmits standard AES analog up to 5000’ (1.5km) via Cat 5 and digital audio up to 1400’ (426m) via Cat5e/6. It features a heavy-duty cable strain relief for harsh environments and locking XLR3-M connectors for providing versatile cabling solution. As the wires terminate inside the balun, the MonoPro XLR can be used as a solderless connection point for standard shielded audio cable. - Transmits standard AES analog audio up to 5000' (1.5km) via Cat 5
- Transmits digital audio up to 1400' (426m) via Cat5e/6
- Features a heavy-duty cable strain relief for harsh environments
- Locking XLR3-M connectors - for providing versatile cabling solution
- 2 screw terminals for signal
- 1 screw terminal for optional shield (ground)
- Can be used as a solderless connection point for standard shielded audio cable
- Robust design for professional use
- Fire-retardant plastic (UL94-V0)
- FCC and CE regulatory standards
UPC: 627699000250 In the Box MuxLab 500025 MonoPro XLR (Male) Lifetime Warranty Quick-Start Guide PDF 291.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500025 MonoPro XLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab MonoPro Specs | Environment | Analog Audio: Balanced line level or microphone analog audio
Digital Audio: Balanced line level digital audio | | Signal Amplitude | Analog Audio: Phase polarity sensitive
Digital Audio: Not polarity sensitive | | Impedance | Analog Audio: Output: 600 Ω / Input: 600-20kΩ
Digital Audio: 110 Ω | | Signal | Analog Audio: Professional balanced analog line level or microphone
Digital Audio: Professional balanced digital line level | | Maximum Distance | Analog Audio
Line level: 5,000' (1.5 km)
Mic level: 3,000' (914m)
Digital Audio
32 kHz: 1,400' (426m)
44.1 kHz: 1,300' (396m)
48 kHz: 1,250' (381m)
96 kHz: unspecified | | Frequency Response | DC to 6 MHz | | Transmission | Transparent to the user | | Insertion Loss | Less than 1 dB/pair from DC to 6 MHz - per balun pair | | Return Loss | Less than 15dB from DC to 6 MHz | | Common Mode Rejection | Greater than 45 dB | | UTP | 24 gauge or lower solid copper twisted pair wire
Impedance: 100 Ω at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305m) at 1 MHz | | Connectors | Audio: XLR male (3 pin)
UTP: 3 screws (2 signal, 1 ground) | | Pins | XLR Pin 1: Shield
XLR Pin 2: Positive
XLR Pin 3: Return
UTP Pin 1: Ground (optional)
UTP Pin 2: Tip [T]
UTP Pin 3: Ring [R] | | Strain Relief | Threaded and tapered cable grip mechanism | | Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | Fire retardant plastic. UL94-V0 | | Dimensions (Diam. x L) | 1 x 1.9" (25 x 48mm) - plus 5" (127mm) lead | | Weight | 2.6 oz (75g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 8.4 x 1.1 x 0.7" |
