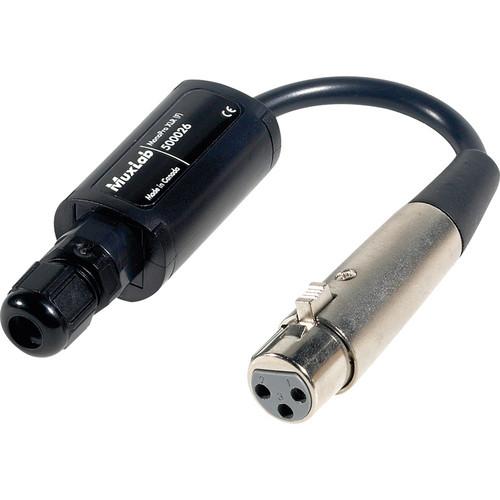

User Manual for MuxLab 500026 MonoPro XLR Click to enlarge the picture
Contents of the user manual for the MuxLab 500026 MonoPro XLR
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500026 MonoPro XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500026 MonoPro XLR (Female) transmits standard AES analog up to 5000’ (1.5km) via Cat 5 and digital audio up to 1400’ (426m) via Cat5e/6. It features a heavy-duty cable strain relief for harsh environments and locking XLR3-F connectors for providing versatile cabling solution. As the wires terminate inside the balun, the MonoPro XLR can be used as a solderless connection point for standard shielded audio cable. - Transmits standard AES analog audio up to 5000' (1.5km) via Cat 5
- Transmits digital audio up to 1400' (426m) via Cat5e/6
- Features a heavy-duty cable strain relief for harsh environments
- Locking XLR3-F connectors - for providing versatile cabling solution
- 2 screw terminals for signal
- 1 screw terminal for optional shield (ground)
- Can be used as a solderless connection point for standard shielded audio cable
- Robust design for professional use
- Fire-retardant plastic (UL94-V0)
- FCC and CE regulatory standards
UPC: 627699000267 In the Box MuxLab 500026 MonoPro XLR (Female) Lifetime Warranty Quick-Start Guide PDF 291.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500026 MonoPro XLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab MonoPro Specs | Environment | Analog Audio: Balanced line level or microphone analog audio
Digital Audio: Balanced line level digital audio | | Signal Amplitude | Analog Audio: Phase polarity sensitive
Digital Audio: Not polarity sensitive | | Impedance | Analog Audio: Output: 600 Ω / Input: 600-20kΩ
Digital Audio: 110 Ω | | Signal | Analog Audio: Professional balanced analog line level or microphone
Digital Audio: Professional balanced digital line level | | Maximum Distance | Analog Audio
Line level: 5,000' (1.5 km)
Mic level: 3,000' (914m)
Digital Audio
32 kHz: 1,400' (426m)
44.1 kHz: 1,300' (396m)
48 kHz: 1,250' (381m)
96 kHz: unspecified | | Frequency Response | DC to 6 MHz | | Transmission | Transparent to the user | | Insertion Loss | Less than 1 dB/pair from DC to 6 MHz - per balun pair | | Return Loss | Less than 15dB from DC to 6 MHz | | Common Mode Rejection | Greater than 45 dB | | UTP | 24 gauge or lower solid copper twisted pair wire
Impedance: 100 Ω at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305m) at 1 MHz | | Connectors | Audio: XLR female (3 pin)
UTP: 3 screws (2 signal, 1 ground) | | Pins | XLR Pin 1: Shield
XLR Pin 2: Positive
XLR Pin 3: Return
UTP Pin 1: Ground (optional)
UTP Pin 2: Tip [T]
UTP Pin 3: Ring [R] | | Strain Relief | Threaded and tapered cable grip mechanism | | Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | Fire retardant plastic. UL94-V0 | | Dimensions (Diam. x L) | 1 x 1.9" (25 x 48mm) - plus 5" (127mm) lead | | Weight | 2.6 oz (75g) | | | | Package Weight | 0.125 lb | | Box Dimensions (LxWxH) | 4.8 x 4.25 x 2.0" |
