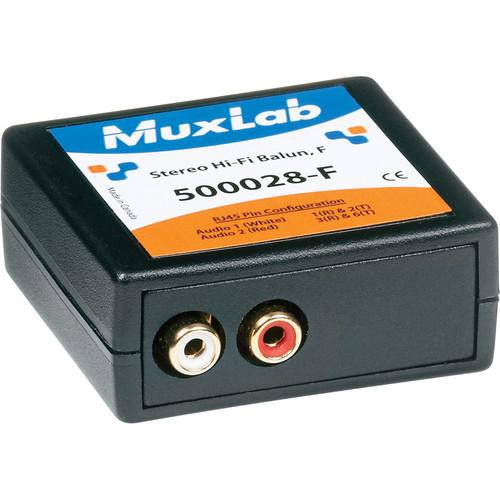

User Manual for MuxLab 500028-F Stereo Hi-Fi Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500028-F Stereo Hi-Fi Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500028-F Stereo Hi-Fi Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Inc. 500028-F Stereo Hi-Fi Balun (Female) allows unbalanced line level stereo analog audio to be transmitted via Category 5e/6 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Balun eliminates the need for costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment. It is ideal for boardroom systems, classroom training, auditoriums, custom home installations, and intercom systems. - 20 Hz to 20 kHz bandwidth
- Up to 3,250' (1 km) via CAT5e/6 UTP
- Color-coded RCA cable leads
- Quicker moves, additions, and changes
UPC: 627699940280 In the Box MuxLab 500028-F Stereo Hi-Fi Balun (Female) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500028-F Stereo Hi-Fi Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500028-F Specs | Environment | Line level unbalanced analog audio | | Devices | DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered sub-woofer, and other line level audio equipment | | Transmission | Transparent to the user | | 3dB Bandwidth | 20 Hz to 20 kHz over the distance range | | Maximum Input | 1.1 Vpp (unbalanced) | | Insertion Loss | Per Balun Pair: Less than 2 dB over the frequency range | | Common Mode Rejection | Greater than 60 dB @ 1 kHz
Greater than 40 dB over the frequency and distance range | | THD | Maximum 0.007% @ 1 kHz over the distance range | | Audio Impedance | Source: 100 Ω maximum
Receiver: 10 kΩ minimum | | Maximum Distance | CAT5e/6 UTP: 3,250' (1 km) | | Pin Configuration | RJ45:
Audio 1 (White): Pins 1 (R) & 2 (T) Audio 2 (Red): Pins 3 (R) & 6 (T) | | Cable | UTP: 24 AWG or lower solid copper twisted pair wire
Impedance: Maximum 100 Ω at 1 MHz Capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000' (6.6 dB/304.8 m) at 1 MHz
Coax: Shielded audio cable | | Connectors | 2 x RCA-F, 1 x RJ45 | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95% | | Enclosure | ABS, fire-retardant plastic | | Dimensions | 2.4 x 2.25 x 1" (60.96 x 57.15 x 25.4 mm), 6" (152.4 mm) audio lead | | Weight | 3.1 oz (89 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.8 x 2.6 x 1.2" |
