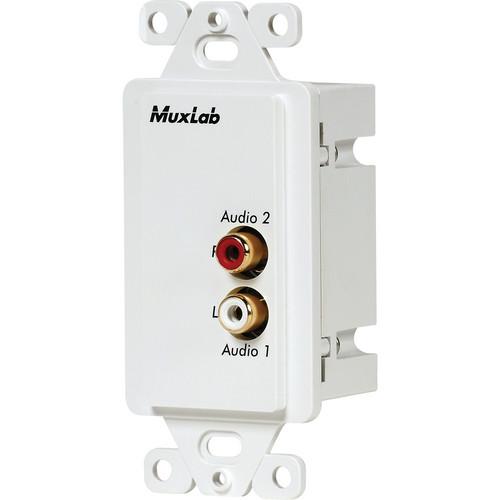

User Manual for MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun allows unbalanced line level stereo analog audio to be transmitted via Category 5e/6 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required. When used in pairs, the Stereo Hi-Fi Wall Balun eliminates the need for costly and bulky coaxial cables, allowing audio equipment to be connected or moved within a structured cabling environment. - 20 Hz to 20 KHz bandwidth
- Up to 3,250' (990.6 m) via Cat5e/6 UTP
- Quickly moves, adds, and changes
- Compatible with Decora face plates
- Applications: Boardroom systems, classroom training, auditoriums, custom home installations, and intercom systems
UPC: 627699920282 In the Box MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun Lifetime Warranty Brochure PDF 116.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500028-WP-US Stereo Hi-Fi Wall Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500028-WP-US Specs | Environment | Line level unbalanced analog audio | | Devices | DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer, and other line level audio equipment | | Transmission | Transparent to the user | | Bandwidth | 3 dB: 20 Hz to 20 kHz over the distance range | | Maximum Input | 1.1 Vpp (unbalanced) | | Insertion Loss | <2 dB over the frequency range (per Balun pair) | | Common Mode Rejection | >60 dB at 1 KHz
>40 dB over the frequency and distance range | | THD | Maximum 0.007% at 1 kHz over distance range | | Audio Source Impedance | 100 Ω maximum | | Audio Receiver Impedance | 10 k Ω minimum | | Maximum Distance | Cat5e/6 UTP: 3,250' (990.6 m) | | Pin Configuration | EIA 568 A or B
Audio 1 (White): Pins 1 [R] & 2 [T]
Audio 2 (Red): Pins 3 [R] & 6 [T] | | Cable | UTP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 Ω at 1 MHz
Maximum Capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000' at 1 MHz
Coax
Shielded audio cable | | Connectors | 2x RCA-F
1x RJ45 | | Temperature | Operating: 32 to 131˚F (0 to 55˚C)
Storage: -4 to 185˚F (-20 to 85˚C)
Humidity: Up to 95% | | Enclosure | ABS. Fire-retardant plastic | | Dimensions | 4.1 x 1.8 x 1.44" (104 x 45.7 x 36.6 mm)
Choose 1.6" (40 mm) deep back box to allow for Cat 5E/6 wiring connection | | Weight | 4.1 oz (115 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.55 x 4.5 x 2.25" |
