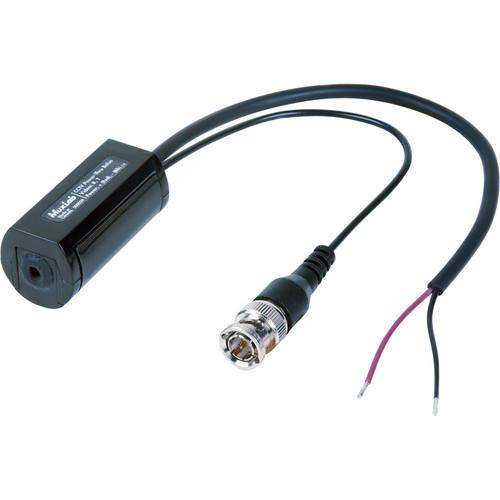

Product description The MuxLab 500029 CCTV Power-Thru Balun with screw terminals transmits video and remote power via one 4-pair Cat5 UTP (Unshielded Twisted Pair) cable, eliminating the need for multiple cable installations. When used in conjunction with MuxLab's passive CCTV hub (500130), the modular balun transmits standard composite video and supports transmission of color signals up to 1200' (365m) via Cat3; it can be extended to 2200' (670m) via Cat5. For b&w signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5. Made of ABS fire retardant plastic, the modular balun features port configuration switch to set port as the Power-thru balun that transmits remote power up to 500' (170m) via 3 twisted pair cables at 24VAC/5VA. Providing a hassle-free cabling solution, the Power-Thru Balun connects to CCTV security / surveillance equipment that includes cameras, monitors, switchers, sequencers, multiplexers, DVRs, and other CCTV equipment. The balun can also be used with other composite baseband video equipments. - Transmits video and remote power via one 4-pair Cat5 UTP cable
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5
- Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5
- Transmits remote power up to 500' via 3 twisted pair cables at 24VAC/5VA
- Made of ABS fire retardant plastic
- Supports baseband video; NTSC, PAL, and SECAM
UPC: 627699000298 In the Box MuxLab 500029 CCTV Power-Thru Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500029 CCTV Power-Thru Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500029 Specs | Environment | Baseband video; NTSC, PAL, SECAM | | Devices | Close-circuit TV (CCTV) cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs) and other CCTV equipment | | Transmission | Transparent to the user | | | | Bandwidth | DC to 8 MHz | | Impedance | Input: 75 ohms (BNC); Output: 100 ohms (RJ45) | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5 - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)
B/W: Cat 3 - 1500' (457m); Cat 5 - 2500' (762m) | | | | Wiring | Remote power via three (3) twisted pairs. Class II power supply recommended | | Maximum Distance | (at 24VAC via 3 twisted pairs)
5 VA: 518' (170m)
10 VA: 259' (85m)
20 VA: 130' (43m)
30 VA: 86' (28m) Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC. | | Maximum Input Voltage | 50 Volts (AC RMS/DC) | | Maximum Current | 4.5A (AC RMS/DC) | | | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
Coax: Impedance - 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end | | Connectors | Video: BNC-male 8" (203mm) mini-coax lead Power: 2-wire 18AWG lead
Combined signals: RJ45 (500024); Screw terminals (500029) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 1.875 x 1" (4.7 x 2.54cm) diameter plus cable leads; 8" (20cm) for video; 10" (25.4cm) for power and control leads | | Weight | 1.95 oz (55g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
