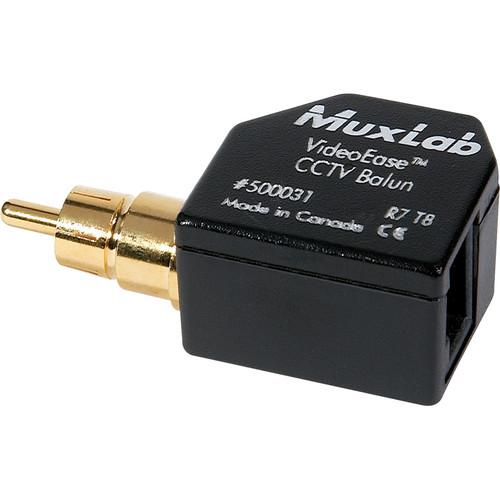

Product description The Muxlab 500031 CCTV Modular RCA Balun is a video extender that allows a single CCTV video signal to be transmitted via a Cat3/5E/6 cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects to CCTV security / surveillance equipment that includes cameras, IP camera encoders, video switchers, sequencers, multiplexers, DVRs, and camera servers. The balun can also be used with other composite baseband video equipment such as DVD players, cable boxes, media servers and audio-video monitors. The modular balun is used in pairs to transmit standard composite video and supports transmission of color signals up to 1200' via Cat3; it can be extended to 2200' via Cat5/5E or a higher version. For b&w signals, the maximum transmission distance is up to 1500' via Cat3 (can extended up to 2500' via Cat5/6). The RCA balun uses RJ-45 reverse polarity sensitive connectors with a configuration of Pin 7 (Ring) and Pin 8 (Tip). Made of ABS fire retardant plastic, the compact modular balun measures 1.75 x .75 x 1.00" (4.44 x 1.9 x 2.54 cm), and features low return loss that ensures maximum power transfer with no line faults between the input and output. Besides using Cat3/5/6 as a cost-effective alternative to coaxial cabling, the balun also makes changes / additions to modular outlet connections faster and easier. - Video extender used in pairs
- Allows use of Cat3/5/5E cables as a cost-effective alternative to coaxial cables
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5/5E or a higher version
- Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5/6
- Made of ABS fire retardant plastic
- Compact design - 1.75 x .75 x 1.00" (4.44 x 1.9 x 2.54 cm)
- Low return loss - ensures maximum power transfer with no line faults
- Operating temperature range 0 to 55° C
- RJ-45 reverse polarity sensitive connectors with a configuration of Pin 7 (Ring) and Pin 8 (Tip)
- Changes and additions to other modular outlet connections are made easier
- Meets FCC Class A, CE, and RoHS regulatory standards
UPC: 627699000311 In the Box MuxLab 500031 CCTV Modular RCA Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500031 CCTV Modular RCA Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500031 Specs | Environment | Close-Circuit TV (CCTV) equipment for security and surveillance | | Devices | CCTV cameras, digital video recorders (DVRs), monitors, switchers, sequencers, multiplexers and other CCTV equipment. | | Transmission | Transparent to the user | | Bandwidth | Video: DC - 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC - 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC - 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3 - 1200 (365m); Cat 5 or higher - 2200' (670m)
(Shorter distances may be achieved when used with DVRs, typical 1000' (305m) - 1500' (457m) via cat 5)
B/W: Cat 3 - 1500' (457 m); Cat 5/6 - 2500' (762 m) | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz.
BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). | | Connectors | (reverse polarity sensitive)
RJ45 Pins R7 T8 | | Impedance | Input: 75 ohms (BNC)
Output: 100 ohms (RJ45) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 1.75 x 0.75 x 1" (4.44cm x 1.9cm x 2.54cm) | | Weight | 1.5 oz (42.5g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 1.1 x 0.9 x 0.7" |
