User Manual for MuxLab 500036 Active VGA Balun Kit Click to enlarge the picture
Contents of the user manual for the MuxLab 500036 Active VGA Balun Kit
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500036 Active VGA Balun Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

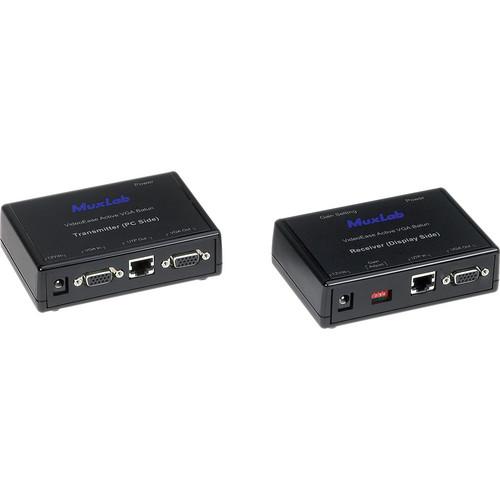

Product description Consisting of one transmitter and one receiver, the 500036 Active VGA Balun Kit from MuxLab transmits VGA video signals using Cat5 cabling in point-to-point configurations. It supports resolutions up to 1920 x 1440 at a distance of 400', and it can transmit 640 x 480 resolution video at a total distance of 700'. Additionally, this balun features manual gain compensation adjustment for enhancing the brightness, sharpness, and color intensity of the video signal. There is an integrated local monitor output for added flexibility, and the kit includes two power supplies for a full setup. Providing a hassle-free cabling solution, the balun connects to a wide variety of devices, including PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors. - Kit includes one transmitter and one receiver for full connection
- Allows transmission of VGA video using unshielded copper twisted Cat5 cable
- Connects to a variety of devices, including PCs, laptops, CRT monitors, and LCD monitors
- Transmit 1920 x 1440 resolutions at distances of up to 400'
- Manual gain compensation adjustment enhances brightness, sharpness, and color intensity
- Supports local monitor output for additional flexibility
- Includes two 220 to 240V power supplies
- Made of ABS fire retardant plastic for durability
- Suitable for use in digital signage, boardroom systems, and collaborative PC systems
UPC: 627699000366 In the Box MuxLab 500036 Active VGA Balun Kit (220 to 240V) Transmitter Receiver 2 x Power Supplies (220 to 240V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500036 Active VGA Balun Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500036 Specs | Environment | VGA
VESA VP&D 1.0, VIP version 2.0 | | Devices | PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors | | Transmission | Transparent to the user | | Bandwidth | Up to 280 MHz (1920 x 1440 resolution) | | Input Impedance | 75 Ohms (Coax) | | Output Impedance | 100 Ohms (UTP) | | Connectors: Transmitter | VGA Input (PC): DB15 HD Receptacle
VGA Output (Local Monitor): DB15 HD Receptacle
VGA Output (Cat5): RJ45 shielded | | Connectors: Receiver | VGA Input (Cat5): RJ45 shielded
VGA Output (Display): DB15 HD Receptacle | | Maximum Distance | Via Cat 5 Twisted Pair:
640 x 480 (VGA): 700' (213 m)
800 x 600 (SVGA): 600' (183 m)
1024 x 768 (XGA): 550' (167 m)
1280 x 768 (WXGA): 550' (167 m)
1280 x 1024 (SXGA): 550' (167 m)
1600 x 1200 (UXGA): 500' (152 m)
1800 x 1440: 400' (122 m)
1920 x 1440: 400' (122m) | | RJ45 Pin Configuration | Reverse Polarity Sensitive:
Pair 1: Pin 1 (R) Pin 2 (T)
Pair 2: Pin 4 (R) Pin 5 (T)
Pair 3: Pin 7 (R) Pin 8 (T)
Pair 4: Pin 3 (R) Pin 6 (T) | | Gain Control | Gain control via DIP switches on receiver (factory default setting: all OFF) | | LED Indicators | Transmitter: 1 x Power (green)
Receiver: 1 x Power (green), 4 x Switch position (green) | | Cable | Category 5 or better twisted pair cable
Requires additional VGA jumper cables (not included) | | Power Supply | 2 x Continental Europe power cord
12 VDC power jacks | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: Up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Mounting | Desktop, rubber stand-offs | | Regulatory | FCC/CE | | Dimensions | 4.5 x 3 x 1.25" (11.4 x 7.6 x 3.2 cm) | | Weight | 3 lb (1.38 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 4.0" |
