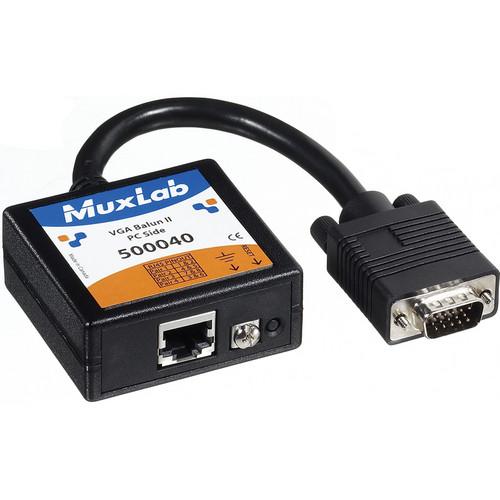

User Manual for MuxLab 500040 VGA Balun II Click to enlarge the picture
Contents of the user manual for the MuxLab 500040 VGA Balun II
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500040 VGA Balun II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500040 VGA Balun II (PC Side) allows a VGA source (PC / laptop) to be connected to a VGA video display device like a CRT, LCD, plasma screen or a DLP/multimedia projector using a 4-pair Cat5E/6 UTP cable. Capable of transmitting SVGA video up to 350' (107m) at 800 x 600 resolution, the PC side balun uses either p/n 500041 or 500042 connector. The balun II supports wide-screen formats (16:9, 1366 x 768), and features a reset button and a ground screw. The reset button is meant for sync-sensitive displays (used when the VGA source connected to the display is re-started or re-booted) and the ground screw is needed in case of a yellowish hue on the display screen. Allowing you to replace the bulky VGA cable by space- and cost-saving Cat5E/6 cable, the VGA balun II finds wide application in digital signage, meeting rooms, training rooms, classroom visual teaching aids and other audio-video systems. Use of the VGA balun II (with Cat5E/6 cables) facilitates placing the display device at extended distances from the video source in classroom / training rooms, and helps distribute the display monitors throughout a complex in case of video information setups. With an ABS fire-retardant plastic enclosure, the balun can be freestanding and comes with a hook and loop fastener for mounting. - Allows a VGA source (PC / laptop) to be connected to a VGA video display device like a CRT, LCD, plasma screen, or a DLP/multimedia projector using a 4-pair Cat5E/6 UTP cable
- Capable of transmitting SVGA video up to 350' (107m) at 800 x 600 resolution
- Uses either p/n 500041 or 500042 connector
- Cat5E/6 cable are less bulky, less expensive than VGA cables
- Compact size - 19 x 1.75 x 1.5 "(48.26 x 4.4 x 5.1 cm)
- Maximum distance supported via Cat5E/6 for video reception
- VGA - 640 x 480 pixels (15MHz) 450' (137m) SVGA - 800 x 600 pixels (30MHz) 350' (107m) XGA - 1024 x 768 pixels (60MHz) 250' (76m) SXGA -1280 x 1024 pixels (100MHz) 200' (61m) WXGA -1366 x 768 pixels 180' (55m)
- ABS fire-retardant plastic enclosure
- Hook and loop fastener included for mounting
UPC: 627699000403 In the Box MuxLab 500040 VGA Balun II (PC Side) Hook and Loop Fastener Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500040 VGA Balun II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500040 Specs | Environment | VGA. VESA VP&D 1.0, VIP ver 2.0. | | Devices | CRT & LCD monitors, plasma screens, PCs, laptops and multimedia projectors. | | Transmission | Transparent to the user | | Bandwidth | DC to 60MHz | | Input Signal | Video: 1.1Vp-p
Horizontal sync: TTL standard. 300kHz max. bandwidth
Vertical sync: TTL standard. 300kHz max. bandwidth | | Insertion Loss | Less than 3 dB per pair over the frequency range. | | Common Mode Rejection | 15kHz: -60dB typ.
100kHz to 10MHz: -40dB typ.
200MHz: -20dB typ. | | Return Loss | -15dB max from DC to 60MHz | | Connectors | HD15 Plug, RJ45 Shielded | | Maximum Distance | (via Cat5E/6 Twisted Pair)
VGA: 640x480 pixels (15MHz) 450' (137m)
SVGA: 800x600 pixels (30MHz) 350' (107m)
XGA: 1024x768 pixels (60MHz) 250' (76m)
SXGA: 1280x1024 pixels (100MHz) 200' (61m)
WXGA:1366x768 pixels 180' (55m) | | Compatibility | Not compatible with 500010, 500011, 500014, 500035/36, 500140
Does not support VGA handshaking (DDC) signals. | | Reset | Reset button: May be required when used with sync-sensitive displays. | | Ground Port | Grounding screw: Grounding screw for optional use. | | Cable | Cat5E/6 or better unshielded twisted pair (UTP) | | Impedance | Input: RGB 75 ohms (HD15) Unbalanced
Output: RGB 100 ohms (RJ45 shielded) Balanced
Horizontal and vertical sync: Balanced | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.4 x 2.25 x 1.0" (6.1 x 5.7 x 2.54cm). Plus 6" (15.2cm) lead | | Weight | 3.9 oz (110g) | | | | Package Weight | 0.275 lb | | Box Dimensions (LxWxH) | 6.1 x 4.85 x 1.2" |
