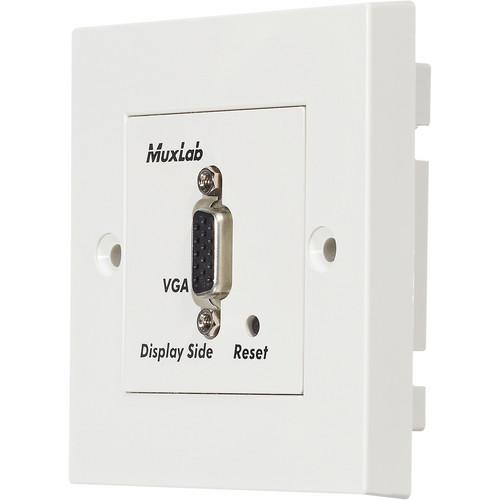

User Manual for MuxLab 500041-WP-UK VGA Wall Balun II Click to enlarge the picture
Contents of the user manual for the MuxLab 500041-WP-UK VGA Wall Balun II
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500041-WP-UK VGA Wall Balun II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500041-WP-UK VGA Wall Balun II (Monitor Side, UK) allows a VGA source to be connected to a VGA monitor using a Cat5E/6 cable. Capable of receiving SVGA video up to 350' (107m) at 800 x 600 resolution, the monitor side balun uses 500043-WP-UK or works in conjunction with the 500040 or 500043.
The VGA Balun II features a reset button which is meant for sync-sensitive displays (used when the VGA source connected to the display is re-started or re-booted) and the ground screw is needed in case of a yellowish hue on the display screen. The unit is compatible with 3.3 x 3.3" (86 x 86mm) back boxes and 1.9 x 1.9" (50 x 50mm) faceplate opening.
Allowing you to replace the bulky VGA cable by space and cost saving Cat5E/6 cable, the VGA Balun II finds wide application in digital signage, meeting rooms, training rooms, classroom visual teaching aids and other audio-video systems. - Allows a VGA video display to be connected to a VGA source
- Receives SVGA video (800 x 600 pixels) up to 350' (107m) at 800 x 600 resolution
- Works with any equipment that supports VGA, XGA, or SVGA signals - PCs, laptops, multimedia projectors, CRT / LCD monitors, and plasma displays
- Uses 500043-WP-UK or works in conjunction with the 500040 or 500043
- Reset button is meant for sync-sensitive displays (used when the VGA source connected to the display is re-started or re-booted)
- Ground screw is needed in case of a yellowish hue on the display screen
- Compatible with 3.3 x 3.3" (86 x 86 mm) back boxes and 1.9 x 1.9" (50 x 50 mm) faceplate opening
- Allows VGA cable to be replaced by Cat5E/6 cable
- Cat5E/6 cables are less bulky, less expensive than VGA cables
- Compact size - 3.3 x 3.3 x 1.4" (86 x 86 x 36 mm)
- ABS fire retardant plastic enclosure
UPC: 627699910412 In the Box MuxLab 500041-WP-UK VGA Wall Balun II (Monitor Side, UK) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500041-WP-UK VGA Wall Balun II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500041-WP-UK Specs | Environment | VGA. VESA VP&D 1.0, VIP ver 2.0 | | Devices | CRT/LCD monitors, plasma, laptops, PCs, projectors | | Transmission | Transparent to the user | | Bandwidth | DC to 60 MHz | | Input Signal | Video: 1.1 Vp-p
H &V sync: TTL standard. 300 kHz max. bandwidth | | Insertion Loss | Less than 3 dB per pair over the frequency range | | Common Mode Rejection Ratio | 15 kHz: -60 dB typ.
100 kHz to 10 MHz: -40 dB typ.
200 MHz: -20 dB typ. | | Return Loss | -15 dB max from DC to 60 MHz | | Connectors | DB15 HD Receptacle, RJ45 Shielded | | Maximum Distance | (via Cat 5E/6 UTP/STP Cable)
VGA: 640x480 pixels (15 MHz), 450 ft (137 m)
SVGA: 800x600 pixels (30 MHz), 350 ft (107 m)
XGA: 1024x768 pixels (60 MHz), 250 ft (76 m)
SXGA: 1280x1024 pixels (100 MHz), 200 ft (61 m)
WXGA: 1366x768 pixels, 180 ft (55 m) | | Compatibility | Not compatible with the VGA Balun (500010, 500011, 500014) or Active VGA Balun Kit (500035, 500036) | | Reset Button | May be needed when used with certain display devices | | Cable | Cat 5E/6 or better unshielded twisted pair (UTP) | | Impedance | Input: RGB 75 ohms
Output: RGB 100 ohms | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Dimensions | 3.3 x 3.3 x 1.4" (86 x 86 x 36 mm)
Choose 1.6" (40 mm) deep back box to allow for Cat 5E/6 wiring connection | | Weight | 4.1 oz (115 g) | | Regulatory | FCC, CE, RoHS, European Standard for 3.3" (86mm) faceplate | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 2.2" |
