User Manual for MuxLab 500043-WP-US VGA Wall Balun II Click to enlarge the picture
Contents of the user manual for the MuxLab 500043-WP-US VGA Wall Balun II
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500043-WP-US VGA Wall Balun II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

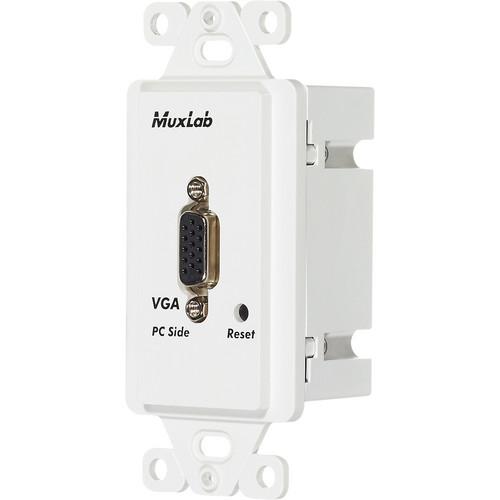

Product description Connect a VGA source to a VGA monitor using the 500043-WP-US VGA Wall Balun II from MuxLab. The balun transmits WXGA (1366 x 768) high-definition video signals at distances of up to 180' and VGA (640 x 480) signals at distances of up to 450'. It features a reset button for sync-sensitive displays, and there is an integrated ground screw for reducing yellowish hues on the display screen. This balun is designed for use on the PC side, and it is compatible with the company's 500041-WP-US, 500041, and 500042 VGA Baluns which can be used on the monitor side for a full setup. This system eliminates the need for VGA cables, enabling usage of compact wiring to save conduit space and facilitate a neat setup. - Allows you to connect a VGA source to a VGA monitor without VGA cabling
- Transmits VGA signals up to 450' via Cat5e/6 UTP cable
- Compatible with the MuxLab 500041-WP-US, 500041, and 500042 VGA Baluns
- Transmits VGA, XGA, SVGA, SXGA, and WXGA signals
- Supports wide-screen formats (16:9, 1366 x 768)
- Reset button for sync-sensitive displays
- Ground screw reduces yellowish hues on the display screen
- Saves conduit space for simple and neat installations
- Can be used with Decora faceplates
- ABS fire retardant plastic enclosure
- Suitable for use in boardrooms, projection systems, digital signage, and CCTV setups
UPC: 627699920435 In the Box MuxLab 500043-WP-US VGA Wall Balun II (PC Side, US Version) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500043-WP-US VGA Wall Balun II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500043-WP-US Specs | Environment | VGA
VESA VP&D 1.0, VIP version 2.0 | | Devices | CRT/LCD monitors, plasma, laptops, PCs, projectors | | Transmission | Transparent to the user | | Bandwidth | DC to 60 MHz | | Input Signal | Video: 1.1 V p-p
H & V Sync: TTL standard (300 kHz max. bandwidth) | | Insertion Loss | Less than 3 dB per pair over the frequency range | | Common Mode Rejection Ratio | 15 kHz: -60 dB typical
100 kHz to 10 MHz: -40 dB typical
200 MHz: -20 dB typical | | Return Loss | -15 dB max from DC to 60 MHz | | Connectors | DB15 HD Receptacle, RJ45 Shielded | | Maximum Distance | Via Cat5e/6 UTP/STP Cable:
VGA 640 x 480 pixels (15 MHz): 450' (137 m)
SVGA 800 x 600 pixels (30 MHz): 350' (107 m)
XGA 1024 x 768 pixels (60 MHz): 250' (76 m)
SXGA 1280 x 1024 pixels (100 MHz): 200' (61 m)
WXGA 1366 x 768 pixels: 180' (55 m) | | RJ45 Pin Configuration | Pin 1 (R), Pin 2 (T) Balanced: Red
Pin 4 (R), Pin 5 (T) Balanced: Green
Pin 7 (R), Pin 8 (T) Unbalanced: Blue (7 sig, 8 gnd)
Pin 3 (R), Pin 6 (T) Unbalanced: H & V Sync | | Compatibility | Not compatible with the VGA Balun (500010, 500011, 500014) or Active VGA Balun Kit (500035, 500036) | | Reset Button | May be needed when used with certain display devices | | Grounding Screw | Grounding screw for optional use | | Cable | Cat5e/6 or better unshielded twisted pair (UTP) | | Impedance | Input: RGB 75 Ohms
Output: RGB 100 Ohms | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC, CE, Decora faceplate | | Dimensions | 4.1 x 1.8 x 1.44" (104 x 45.7 x 36.6 mm)
Choose 1.6" (40 mm) deep back box to allow for Cat5e/6 wiring connection | | Weight | 4.1 oz (115 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.7 x 4.4 x 2.4" |
