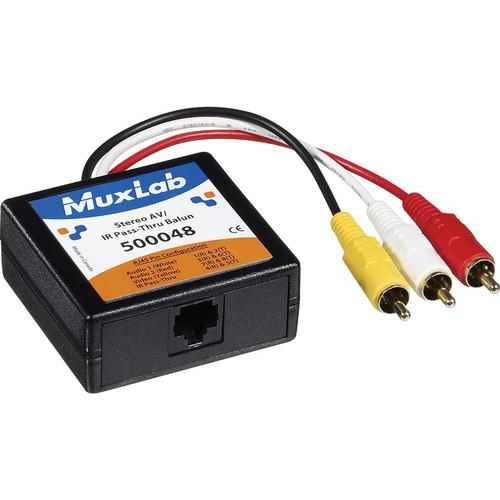

User Manual for MuxLab 500048 Stereo AV IR Pass-Thru Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500048 Stereo AV IR Pass-Thru
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500048 Stereo AV IR Pass-Thru contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500048 Stereo AV/IR Pass-Thru Balun (Male) allows transmission of a composite video, a stereo audio, and an IR emitter signal in a point-to-point configuration using a Cat5E/6 UTP cable. It supports transmission of composite video signal at a maximum distance of up to 2200’ (670m) and audio signal up to 3250’ (990m).
When used in conjunction with third party IR Remote Control equipment, the balun allows the IR Emitter to be connected to the IR control module via the same Cat5E/6 cable as video and audio. Providing hassle-free cabling solution, the balun connects to DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters, and other composite video equipment.
Made of fire retardant plastic, the compact balun measures 2.40 x 2.25 x 1.00" (6.10 x 5.72 x 2.54 cm) and features a full audio bandwidth response of 20 Hz to 20 KHz for high fidelity applications and a built-in color-coded cable leads for ease of installation.
Supporting composite video, line level analog audio, and IR remote, the balun can be used in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks. - Allows transmission of 1 composite video, 1 stereo audio, and 1 IR emitter signal in a point-to-point configuration using a Cat5E/6 UTP
- Supports transmission of composite video signal at a maximum distance of up to 2200' (670m) and audio signal up to 3250' (990m)
- Can be used in conjunction with third party IR Remote Control equipment
- Allows the IR Emitter to be connected to the IR control module via the same Cat5E/6 cable as video and audio
- Features a full audio bandwidth response of 20 Hz to 20 KHz for high fidelity applications
- Built-in color-coded cable leads for ease of installation
- 3 RCA-M connectors - video (yellow) & stereo audio (red, white)
- Made of fire retardant plastic
- Compact design - 2.40 x 2.25 x 1.00" (6.10 x 5.72 x 2.54 cm)
UPC: 627699000489 In the Box MuxLab 500048 Stereo AV/IR Pass-Thru Balun (Male) Lifetime Warranty Quick-Start Guide PDF 84.2kbcyseqrffbdtrycdcactbwvqcb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500048 Stereo AV IR Pass-Thru Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500048 Specs | Standards | Composite video (NTSC, PAL, SECAM). Line level analog audio. IR remote | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz
Analog audio: 20 Hz to 20 KHz | | Impedance | Video: 75 ohms
Audio: 600 ohms min | | Maximum Input | 1.1Vp-p | | Insertion Loss | Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
Audio: Less than 2 dB per pair over the frequency range | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | Greater than 40 dB over the frequency range | | Maximum Distance | Video Cat5e/6 UTP: 2,200' (671m)
Audio Cat5e/6 UTP: 3,250' (1 km)
IR: Please refer to IR vendor specs | | Pins | Video (Yellow): pins 7 [R] & 8 [T]
IR Pass-Thru: pins 4 [R] & 5 [T]
Audio 1 (White): pins 1 [R] & 2 [T]
Audio 2 (Red): pins 3 [R] & 6 [T]
(Reverse Polarity Sensitive) | | Cable | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz | | Connectors | 3 RCA-M connectors: Video (yellow) & stereo audio (red, white)
1 two-pole terminal block for IR emitter pass-through
1 RJ45 for Cat5 | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | Fire retardant plastic | | Dimensions | 2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm) - plus 6" (15.24cm) cable leads for video and stereo audio | | Weight | 3.1 oz (89g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.5 x 3.9 x 1.1" |
