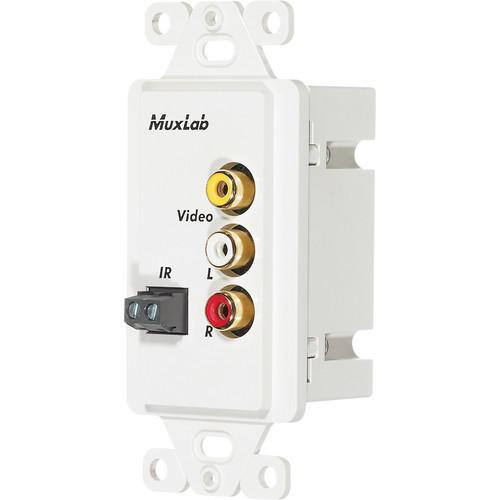

User Manual for MuxLab 500049-WP-US Stereo AV IR Pass-Thru Wall Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500049-WP-US Stereo AV IR Pass-Thru
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500049-WP-US Stereo AV IR Pass-Thru contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500049-WP-US Stereo AV/IR Pass-Thru Wall Balun (US) allows transmission of a composite video, a stereo audio and an IR emitter signal in a point-configuration using Cat5e/6 UTP (Unshielded Twisted Pair) cable. It supports transmission of a composite video signal at a maximum distance of up to 2200’ (670m) and audio signal up to 3250’ (990m).
The balun is used in pairs or in conjunction with other MuxLab baluns such as the 500048 or 500049. Providing hassle-free cabling solution, the balun connects to DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment.
Made of ABS fire retardant plastic, the compact balun measures 4.1 x 1.8 x 1.44" (104 x 45.7 x 36.6 mm) and features a full audio bandwidth response of 20 Hz to 20 KHz for high fidelity applications and a built-in color-coded cable leads for ease of installation. It also features a 2-pole terminal block for IR emitter pass-through on a fourth twisted pair and is compatible with Decora face plates.
Supporting composite video, line level analog audio and IR remote, the balun can be used in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks. - Allows transmission of a composite video, a stereo audio, and a IR emitter signal in a point-to-point configuration using a Cat5e/6 UTP
- Supports transmission of composite video signal at a maximum distance of up to 2200' (670m) and audio signal up to 3250' (990m)
- Can be used in conjunction with other MuxLab baluns such as the 500048 or 500049
- Features a full audio bandwidth response of 20 Hz to 20 KHz for high fidelity applications
- Built-in color-coded cable leads for ease of installation
- 3 RCA-F connectors - video (yellow) & stereo audio (red, white)
- 2-pole terminal block for IR emitter pass-through on fourth twisted pair
- 1 RJ45 connector for Cat5e/6
- Compatible with Decora face plates
- Housing made of fire retardant plastic
- Compact design - 4.1 x 1.8 x 1.44" (104 x 45.7 x 36.6 mm)
UPC: 627699920497 Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500049-WP-US Stereo AV IR Pass-Thru Wall Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500049-WP-US Specs | | | Package Weight | 0.365 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 2.25" |
