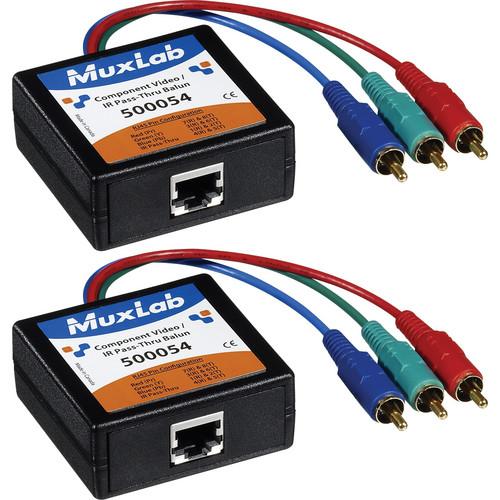

User Manual for MuxLab 500054 Component Video IR Pass-Thru Balun , 2-Pack Click to enlarge the picture
Contents of the user manual for the MuxLab 500054 Component Video IR Pass-Thru
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500054 Component Video IR Pass-Thru contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The Pair of MuxLab 500054 Component Video/IR Pass-Thru Baluns (Male) allow transmission of a component video (YPbPr or RGB) signal and an IR-emitter signal using a Cat5E/6 UTP (Unshielded Twisted Pair) cable.
When used together, the Component Video/IR Pass-Thru Baluns support applications that use 480i/p (up to 1000') and 720p and 1080i/p (up to 500') HDTV (hi-definition) video. It offers support for IR-emitter pass-thru on a fourth twisted pair, and features molded color-coded RCA cable leads and modular shielded RJ45 connectors for an easy attachment.
Besides Cat5E/6 being a cheaper alternative to coaxial cabling, the use of the balun also makes changes and additions easier. Providing hassle-free cabling solution, the balun connects to equipment that includes DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and IR control. - Allows transmission of a component video (YPbPr or RGB) signal and an IR emitter signal using a Cat5E/6 UTP cable
- Supports applications that use 480i/p (up to 1000') and 720p and 1080i/p (up to 500') HDTV (hi-definition) video
- Offers support for IR-emitter pass-thru on a fourth twisted pair
- Molded color-coded RCA cable leads
- Includes 3 RCA-M connectors - Green (Y), Blue (Pb), and Red (Pr)
- Modular shielded RJ45 connectors for an easy attachment
- Allows use of Cat5E/6 cables as an alternate to coaxial cables, making changes and additions easier
- Hassle-free cabling solution
- Made of ABS fire retardant plastic
- Connects to equipment that includes DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and IR control
- Meets FCC, CE, and RoHS regulatory standards
UPC: 627699900543 In the Box MuxLab 500054 Component Video/IR Pass-Thru Balun (Male), 2-Pack Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500054 Component Video IR Pass-Thru Balun , 2-Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500054-2PK Specs | Environment | Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. IRemitter pass-thru | | Devices | DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,amplifiers, switchers, home theatre and other equipment supporting HDTV componentvideo and IR control | | Transmission | Transparent to the user | | Bandwidth | Video: 60 MHz, 3 dB roll off | | Maximum Input | 1.1Vp-p | | Insertion Loss | 0.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | -55 dB max | | Maximum Distance | (Using Cat 5E/6 UTP & STP)
480i/p: 1,000 ft (305m)
720p and 1080i/p: 500 ft (152m) | | Cable | (via Cat5/6 UTP/STP)
24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz | | Cable - Coax | Impedance: 75 ohms at 1 MHz | | Connectors | 3 RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr) | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | plus 6" (15.24cm) cable lead for video | | Weight | 2.9 oz (81 gm) | | Regulatory | FCC, CE, RoHS | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 2.2" |
