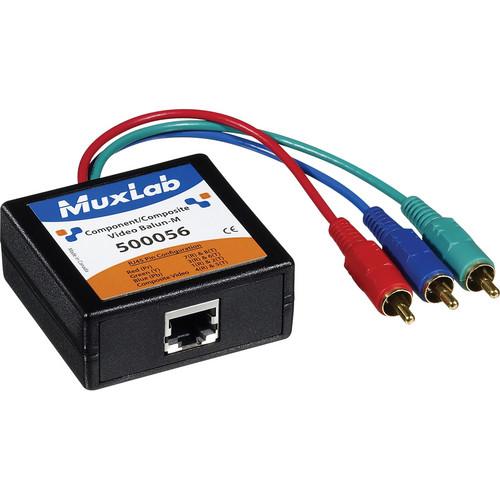

User Manual for MuxLab 500056 Component-Composite Video Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500056 Component-Composite Video Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500056 Component-Composite Video Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The male 500056 Component-Composite Video Balun from MuxLab transmits a component video signal and a composite video signal using a Cat5e/6 UTP cable. When used with the female 500057 Component-Composite Balun, this device supports 480i/p resolutions at up to 1000' and 720p and 1080i/p high-definition resolutions at distances of up to 500'. Additionally, the balun features a fourth twisted pair for composite video, and it transmits composite video at distances of up to 2200'. Using Cat5e/6 cables allows you to easily make moves, additions, and changes to your setup, and it enables you to create a neat and organized installation. This balun is compatible with MuxLab rack, wall, and surface mounting accessories for versatile mounting options. - Transmits component video and composite video using a Cat5e/6 UTP cable
- Supports 720p and 1080i/p high-definition video at distances of up to 500'
- Maximum transmission distance of 1000' with 480i/p resolutions
- Supports composite video on a fourth twisted pair
- Transmits composite video at distances of up to 2200'
- Molded color-coded RCA cable leads
- Modular shielded RJ45 connector for an easy attachment
- Compatible with the 500057 Balun and designed to be used in pairs
- Using Cat5e/6 cables simplifies moves, additions, and changes to your setup
- Works in conjunction with MuxLab rack-, wall-, and surface-mounting accessories
- Housed in ABS fire retardant plastic for durability and long-lasting use
UPC: 627699000564 In the Box MuxLab 500056 Component-Composite Video Balun (Male) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500056 Component-Composite Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500056 Specs | Environment | Component Video (YPbPr), RGB Video (sync on green)
480i/p, 720p, 1080i/p
Line level Composite Video (NTSC, PAL, SECAM) | | Devices | DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and/or composite video | | Transmission | Transparent to the user | | Bandwidth | Video: 60 MHz, 3 dB roll off
Composite Video: DC to 8 MHz | | Maximum Input | 1.1 V p-p | | Insertion Loss | Component: Less than 3 dB per pair over the frequency range
Composite: Less than 2 dB per pair over the frequency range | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | Component: -55 dB max
Composite: Greater than 40 dB @ 8 MHz | | Maximum Distance | Using Cat5e/6 UTP & STP:
480i/p: 1,000' (305 m)
720p and 1080i/p: 500' (152 m)
Composite Video: 2,200' (670 m) | | Cable | Via Cat5/6 UTP/STP:
24 gauge or lower solid copper twisted pair wire
Impedance: 100 Ohms at 1 MHz
Maximum Capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' at 1 MHz | | Cable - Coax | Impedance: 75 Ohms at 1 MHz | | Connectors | 3 RCA-M Connectors: Green (Y), Blue (Pb), Red (Pr)
1 x RCA-F connector for composite video
RJ45S for twisted pair | | Pin Configuration | Red (Pr): Pins 7 [R] and 8 [T]
Blue (Pb): Pins 1 [R] and 2 [T]
Green (Y): Pins 3 [R] and 6 [T]
Composite Video: Pins 4 [R] and 5 [T] | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95% | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC, CE, RoHS | | Dimensions | 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.54 cm)
Plus 6" (15.24 cm) cable lead for video | | Weight | 2.6 oz (74 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.7 x 4.2 x 1.0" |
