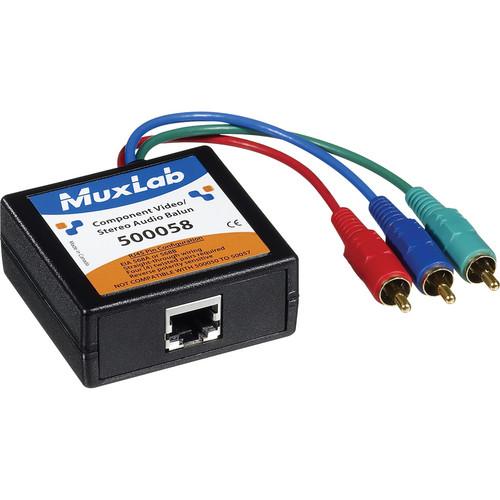

User Manual for MuxLab 500058 Component Video Stereo Audio Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500058 Component Video Stereo Audio
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500058 Component Video Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500058 Component Video/Stereo Audio Balun allows transmission of one component video (YPbPr or RGB) signal and one stereo audio channel via a single Cat5E/6 UTP (Unshielded Twisted Pair) cable. The balun is used in pairs to transmit component video/stereo audio and supports 480i/p video transmission up to 1000' (305m) and 720p and 1080i/p video transmission up to 500' (152m) via Cat5E/6 cables. For analog stereo audio, the maximum transmission distance is up to 3250' (990m). The component video/stereo audio balun delivers high-definition resolution and combines RGB and true left/right stereo audio over four twisted pairs for hi-fidelity commercial and residential AV applications that include DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theater and other equipment supporting HDTV component video and/or analog audio. The balun features GLC (Ground Loop Coupling) that eliminates ground loop effects and provides hassle-free wiring. Besides using Cat3/5/6 as a cost-effective alternative to coaxial cabling, the balun also makes changes / additions to modular outlet connections faster and easier. The unit has an ABS fire-retardant plastic enclosure and includes a modular shielded RJ4. - Allows transmission of one component video (YPbPr or RGB) signal and one stereo audio channel via a single Cat5E/6 UTP cable
- Supports 480i/p video transmission up to 1000' (305m) via one Cat5E/6
- Supports 720p/1080i/p video transmission up to 500' (152m) via Cat5E/6
- Transmits analog stereo audio up to 3250' (990m)
- Features ground loop coupling that eliminates ground loop effects
- Delivers high-definition resolution
- Combines RGB and left/right stereo audio over four twisted pairs for hi-fidelity commercial and residential AV applications
- Modular shielded RJ45 connector
- Made of ABS fire-retardant plastic
- Changes and additions to other modular outlet connections are made easier
- Meets FCC, CE, & RoHS regulatory standards
UPC: 627699000588 In the Box MuxLab 500058 Component Video/Stereo Audio Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500058 Component Video Stereo Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500058 Specs | Environment | Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Stereo line level analog audio | | Devices | DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theater and other equipment supporting HDTV component video and/or analog audio | | Transmission | Transparent to the user | | Bandwidth | Video: DC-60 MHz, 3 dB roll off. Analog audio: 20 Hz to 20 KHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Insertion Loss per pr (Y channel): 0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range
Insertion Loss per pr (audio): Less than 2 dB per pair over the frequency range | | THD & Noise | Less than 0.007% @ 1KHz | | Return Loss | Return Loss (Y channel): Greater than 15 dB over the frequency range | | Common Mode Rejection | Common Mode Rej. (Y channel): -55 dB @ 0.1 MHz. Gradually increasing to -20 dB @ 60 MHz | | Ground Loop Coupling | Proprietary technique helps eliminate hum bars. US Patent Pending | | Maximum Distance | (Cat 5E/6 UTP/STP)
480i/p: 1,000' (305 m)
720p and 1080i/p: 500 ft (152 m)
Analog Stereo Audio: 3,250' (990 m) | | Cable Requirements | Cat5E/6 UTP/STP: 24 gauge or lower solid copper twisted pair wire. Impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz
Coax: Impedance - 75 ohms at 1 MHz | | Connectors | Three (3) RCA-M connectors: Green (Y), Blue (Pb), Red (Pr), 6" leads
Two (2) RCA-F connectors for left/right stereo audio
RJ45S for twisted pair | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.54cm)
Plus 6" (15.24cm) cable lead for video | | Weight | 4.4 oz (122g) | | | | Package Weight | 0.26 lb | | Box Dimensions (LxWxH) | 5.4 x 4.2 x 1.1" |
