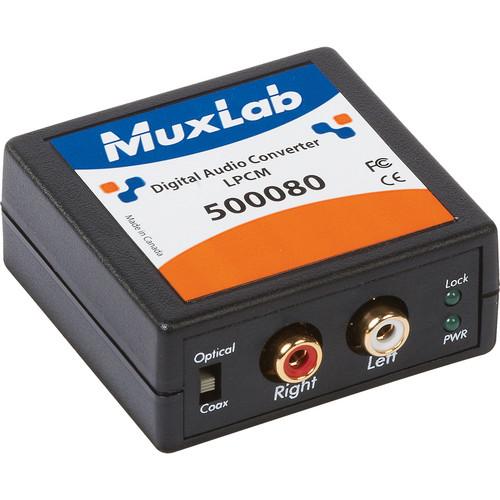

User Manual for MuxLab 500080 LPCM Digital to Analog Converter Click to enlarge the picture
Contents of the user manual for the MuxLab 500080 LPCM Digital to Analog
- Product category: AD/DA Converters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab AD/DA Converters
|
User manual for the MuxLab 500080 LPCM Digital to Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500080 Digital to Analog Converter LPCM is capable of converting up to 24-bit, 96kHz linear pulse code modulation, or LPCM digital audio to analog. It can be used to integrate digital audio sources, such as the digital audio output of a computer, DVD, or CD player into analog audio systems like televisions or home theater setups.
The 500080 features one S/PDIF and one TOSlink digital input with a switch to select between the two. It provides stereo analog output via its two RCA jacks. The 500080 is mountable to a variety of surfaces using either the included hook & loop fasteners pad or the optional MuxLab mounting accessories. - Converts 2-channel LPCM digital audio to left and right analog audio
- Switch selects between TOSLink and S/PDIF inputs
- Can be used with DVD, CD Players, TVs, PCs, IP streaming devices, and AVRs
UPC: 627699000809 In the Box MuxLab 500080 LPCM Digital to Analog Converter Power Supply TOSlink Cable Hook & Loop Fasteners Mounting Pad Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500080 LPCM Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500080 Specs | Format | Digital audio: LPCM | | Transmission | Transparent to the user | | Channels | 2x LPCM (linear pulse code modulation) | | Connections | 1x Coaxial S/PDIF input
1x TOSlink optical input
2x RCA analog outputs | | Switch | Selects between SPDIF and TOSlink input | | Distortion | < 0.001% @ 1 kHz | | Signal to Noise Ratio | > 90 dB (20 Hz to 20 kHz) | | Sample Rates | 32, 44.1, 48 and 96 KHz | | Bit Depth | 24-bit S/PDIF bitstream on right and left channels | | Power Supply | 110 to 240 V/5 V DC | | Power Consumption | 0.75 W | | Temperature | Operating: 32 to 104ºF (0 to 40ºC)
Storage: -4 to 185ºF (-20 to 85ºC)
Humidity: ≤ 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94 VO | | Dimension L x W x H | 2.4 x 2.25 x 1" (6.1 x 5.5 x 2.5 cm) | | Weight | 1 lb (0.5 kg) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.6 x 4.5 x 2.3" |
