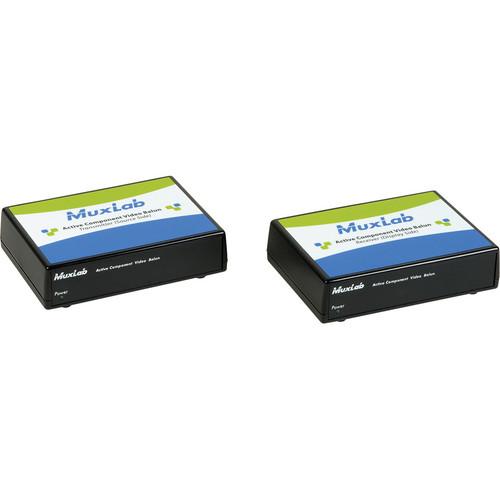

Product description The MuxLab 500090 Active Component Video Balun Kit allows transmission of component video, analog stereo audio and/or digital audio, plus one IR-emitter signal up to 1000' (305m) in point-to-point configuration using Cat5E/6 cable at 480i/p. In addition, it supports simultaneous stereo audio and digital audio transmission.
For use in the CCTV applications, the balun features manual gain compensation adjustment that enhances the brightness and sharpness of the video signal, based on the actual cable conditions. The active component video balun kit allows for IR-emitter pass-through connectivity.
Providing a hassle-free cabling solution, the balun connects to equipment that includes DVD players, satellite receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors.
The 500090 Active Component Video Balun Kit is ideal for use in digital signage, residential, boardroom, classroom, and home theater video systems.
- Allows transmission of component video, analog stereo audio and/or digital audio, plus one IR-emitter signal up to 1000' (305m) in point-to-point configuration using Cat5E/6 cable at 480i/p
- Transmits signals up to 500' (152m) via Cat5E/6 at 1080p
- Supports simultaneous stereo audio and digital audio transmission
- Manual gain compensation adjustment - enhances the brightness and sharpness of the video signal, based on the actual cable conditions
- Supports IR-emitter pass-through connectivity
- Made of ABS fire retardant plastic
- Connects to equipment that includes DVD players, satellite receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors
- Ideal for use in digital signage, residential, boardroom, classroom, and home theater video systems
UPC: 627699000908 In the Box MuxLab 500090 Active Component Video Balun Kit 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500090 Active Component Video Balun Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500090 Specs | Environment | Component Video with Analog Stereo and/or Digital Audio, IR-emitter Pass-through | | Devices | DVD Players, Satellite Receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors | | Transmission | Transparent to the user | | Video Bandwidth | Up to 220 MHz (1080p) | | 3dB Bandwidth | 3dB Analog Audio BW: 20 Hz to 20 kHz over the distance range | | Input Impedance | Video & Digital Audio RCA: 75 ohms; Stereo Audio: 2.2 Kohms | | Output Impedance | Cat 5e: 100 ohms | | Connectors: Transmitter | Component Input: 3 x female RCAs
Stereo Audio Input: 2 x female RCAs
Digital Audio Input: female RCA
IR-emitter Pass-through: 2 position terminal block
Transmitter Output (Cat 5e): RJ45 shielded | | Connectors: Receiver | Receiver Input (Cat 5e): RJ45 shielded
Component Output: 3 x female RCAs
Stereo Audio Output: 2 x female RCAs
Digital Audio Output: female RCA
IR-emitter Pass-through: 2 position terminal block | | Maximum Distance | Component Video (Y/Pb/Pr) via Cat 5e UTP Cable (or better)
480i/p: 1000' (305m)
720p/1080i: 500' (152m)
1080p: 500' (152m)
Audio (Stereo/Digital) via Cat 5e UTP Cable (or better)
Analog Stereo Audio: 1000' (305m)
Digital Audio: 1000' (305m) | | Brightness Adjustment | Brightness control via rotary switch on receiver (factory default setting: zero gain) | | Sharpness Adjustment | Sharpness control via potentiometer on receiver (factory default: fully counter clockwise) | | LED Indicators | Tx Balun: Power: One (1) green LED
Rx Balun: Power: One (1) green LED | | Cable | Cat 5e unshielded twisted pair (or better) | | Power Supply | Power Supplies: 2
110-240V/12VDC/0.5A, 12VDC power jacks
Removable AC blades | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: Up to 95% non-condensing | | Enclosure | Black ABS fire retardant plastic | | Dimensions | 6 x 4.25 x 1.50" (15.3 x 10.8 x 3.8 cm) | | Weight | 2.8 lb (1.3 kg) | | Regulatory | FCC/CE, RoHS | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 14.0 x 8.7 x 4.5" |
